MEG Z690I UNIFY, Intel® Z690 Chipset, LGA 1700, Thunderbolt™ 4, Mini-ITX Motherboard
PREMIUM HARDWARE DESIGN

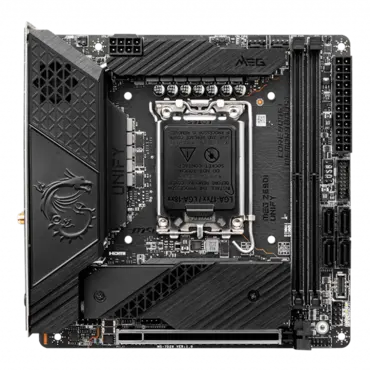

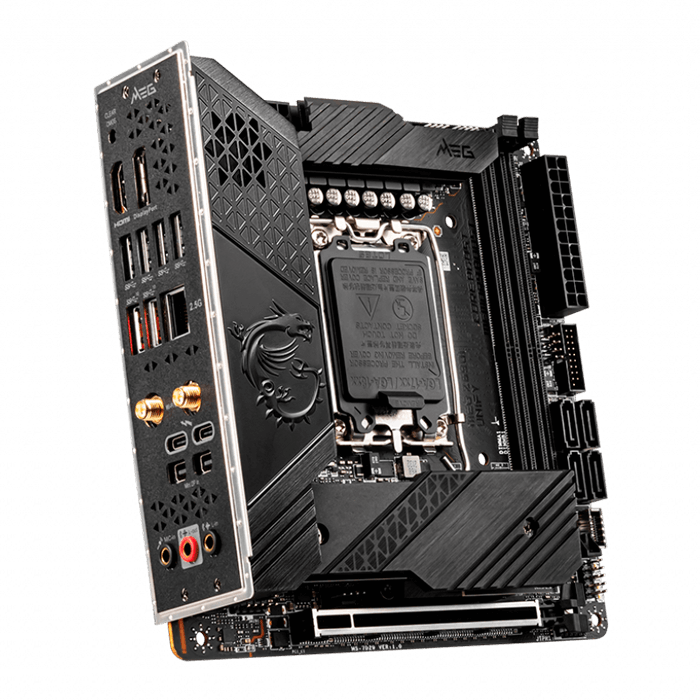

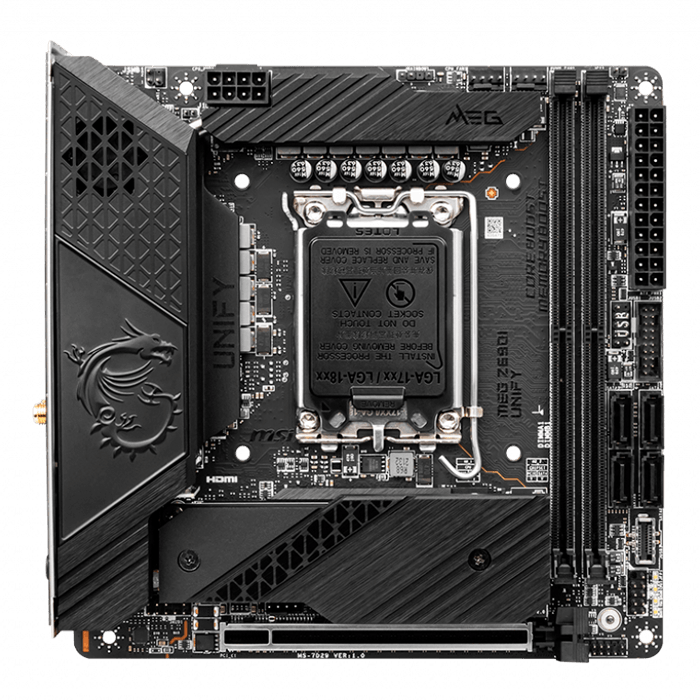

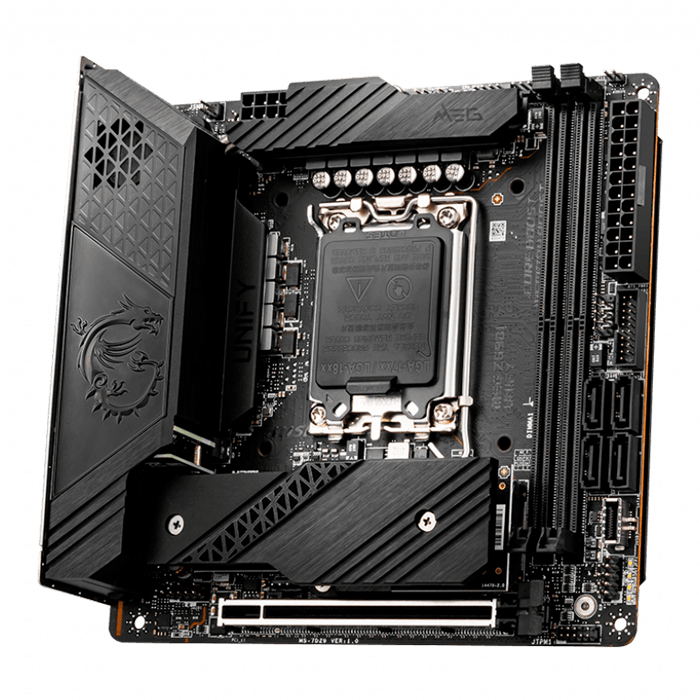

MEG Z690I UNIFY
- Supports 12th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5-6800+MHz(OC)
- Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
- Dedicated for Extreme OC: The top-notch R&D design and exclusive 2 DIMM solution for an even clearer DDR5 memory signal to explore the boundaries of memory overclocking, deliver the world class memory performance.
- Extreme Power Design: Premium digital PWM, direct 10+1+1 phases with 105A Smart Power Stage and Titanium Choke III to unleash the true power of your processors.
- Triple M.2 Connectors : Onboard triple M.2 connectors for the maximum storage performance with dual Lightning Gen 4 solution.
- Outstanding Cooling Solution: Frozr Heatsink, VRM Heat-pipe, Aluminum Cover, M.2 Shield Frozr and Aluminum Backplate ensure the extreme performance with low temp.
- 2.5G LAN with latest Wi-Fi 6E: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
- 12 Layer Server Grade PCB Design: Provides higher performance and long-lasting system stability without any compromise.
- Audio Boost 5: Isolated audio with a high quality ALC4080 audio processor & amp for the most immersive gaming experience.
PROCESSOR |
See supported processors
|
CHIPSET |
Intel® Z690 Chipset |
MEMORY |
See supported memory |
EXPANSION SLOTS |
|
ONBOARD GRAPHICS |
|
THUNDERBOLT™ 4 |
|
STORAGE |
|
RAID |
|
USB |
|
AUDIO |
Realtek® ALC4080 Codec
|
LAN |
|
WIRELESS LAN & BLUETOOTH |
|
INTERNAL CONNECTORS |
|
LED FEATURE |
|

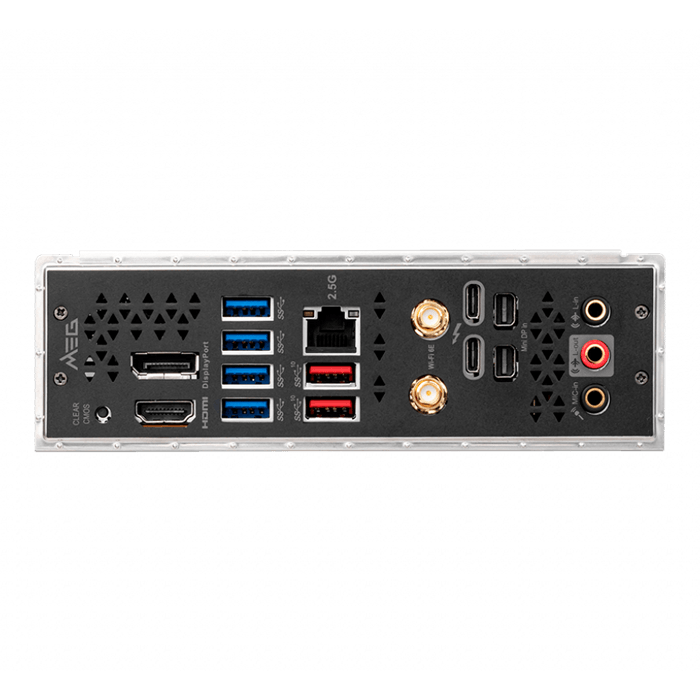

BACK PANEL CONNECTORS |
|
DIMENSIONS |
|

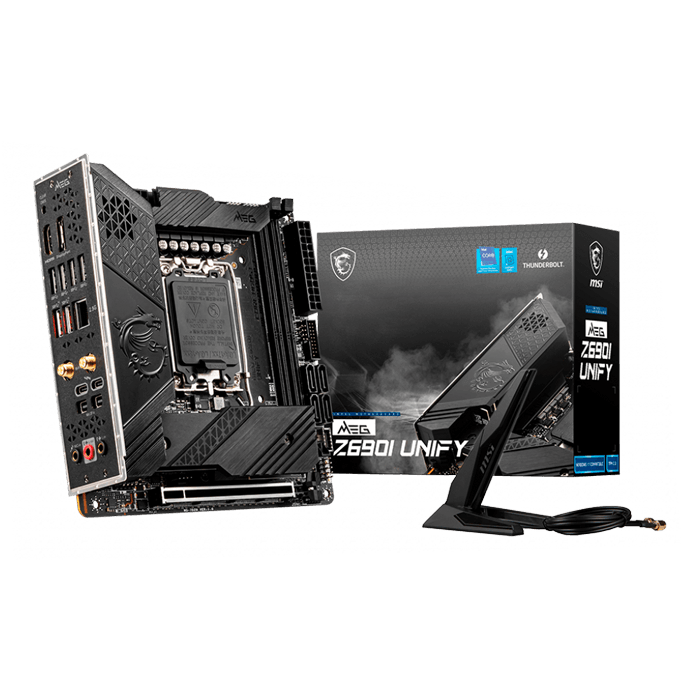

BOX CONTENT |
|
