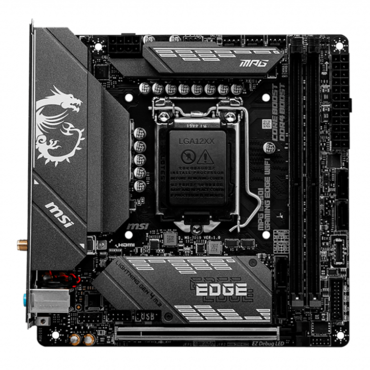

| PROCESSOR |
-
Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel ® Core™ Processors, Pentium® Gold and
Celeron® Processors
- Processor socket LGA1200
- Please go to intel.com for compatibility information.
See supported processors
|
| CHIPSET |
Intel® B560 Chipset
|
| MEMORY |
- 2x DDR4 memory slots, support up to 64GB
- Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU [by JEDEC & POR]
- Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU [by JEDEC & POR]
-
Max frequency:
- 1DPC 1R Max speed up to 5200 MHz
- 1DPC 2R Max speed up to 4700+ MHz
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
- Please refer to www.msi.com for more information on compatible memory
See supported memory
|
| EXPANSION SLOTS |
-
1x PCIe x16 slot
- Support up to PCIe 4.0 for 11th Gen Intel® CPU
- Support up to PCIe 3.0 for 10th Gen Intel® CPU
|
| ONBOARD GRAPHICS |
- 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz/
- 1x DisplayPort 1.4 port, supports a maximum resolution of 5120x3200 60Hz/
- Available only on processors featuring integrated graphics.
- Graphics specifications may vary depending on the CPU installed.
|
| STORAGE |
- 4x SATA 6Gb/s ports [from B560 chipset]
- 2x M.2 slots [from B560 chipset]
-
2x M.2 slots [Key M]
-
M2 1 slot
- Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU [From CPU]
- Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU [From B560 chipset]
- Supports 2280 storage devices
-
M2 2 slot [from B560 chipset]
- Supports PCIe 3.0 x4 only
- Supports 2280 storage devices
- Intel® Optane™ Memory Ready
- Supports Intel® Smart Response Technology for Intel® Core ™ processors
- Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
|
| USB |
Intel® B560 Chipset
- 2x USB 3.2 Gen 2 10Gbps ports [1 Type-C port and 1 Type-A port on the back panel]
- 3x USB 3.2 Gen 1 5Gbps ports [1 Type-C port and 2 Type-A ports are available through the internal USB 3.2 Gen 1 5Gbps connectors]
- 6x USB 2.0 ports [4 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector]
|
| AUDIO |
Realtek® ALC897 Codec
- 7.1-Channel High Definition Audio
|
| LAN |
- 1x Realtek® RTL8125B 2.5Gbps LAN controller
|
| WIRELESS LAN & BLUETOOTH |
Intel® Wi-Fi 6E AX210
- The Wireless module is pre-installed in the M.2 [Key-E] slot
- Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* [160MHz] up to 2.4Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax
- Supports Bluetooth® 5.2/ , FIPS, FISMA
- Wi-Fi 6E 6GHz may depend on every country's regulations and will be ready in WIN10 21H1.
- Bluetooth 5.2 will be ready in WIN10 21H1.
|
| INTERNAL CONNECTORS |
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
- 4x SATA 6Gb/s connectors
- 2x M.2 slots [M-Key]
- 1x USB 3.2 Gen 1 5Gbps Type-C port
- 1x USB 3.2 Gen 1 5Gbps connector [supports additional 2 USB 3.2 Gen 1 5Gbps ports]
- 1x USB 2.0 connector [supports additional 2 USB 2.0 ports]
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump fan connector
- 1x 4-pin system fan connector
- 1x Front panel audio connector
- 2x System panel connectors
- 1x 4-pin RGB LED connector
- 1x 3-pin RAINBOW LED connector
- 1x Chassis Intrusion connector
- 1x TPM module connector
- 1x Clear CMOS jumper
|

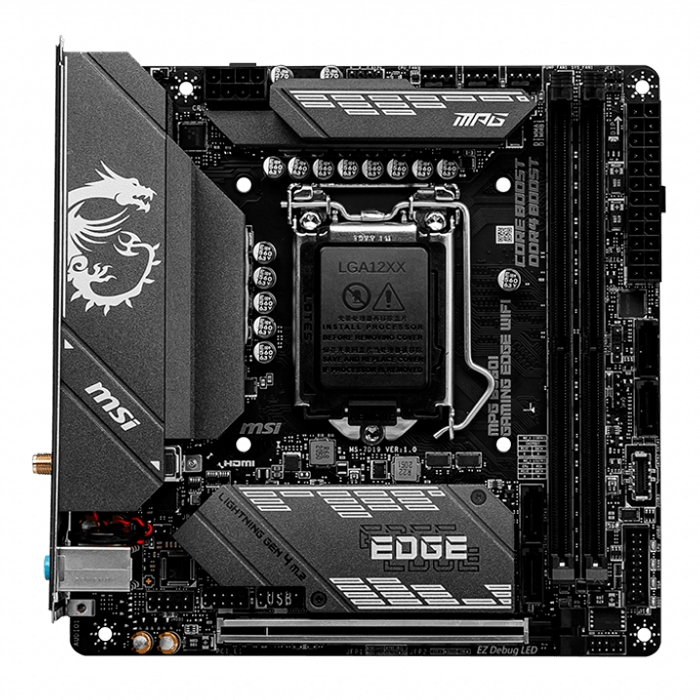

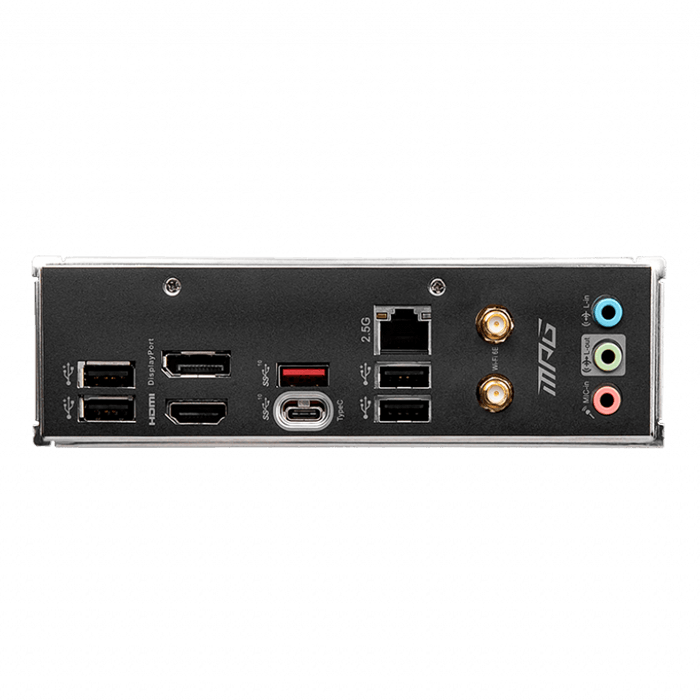

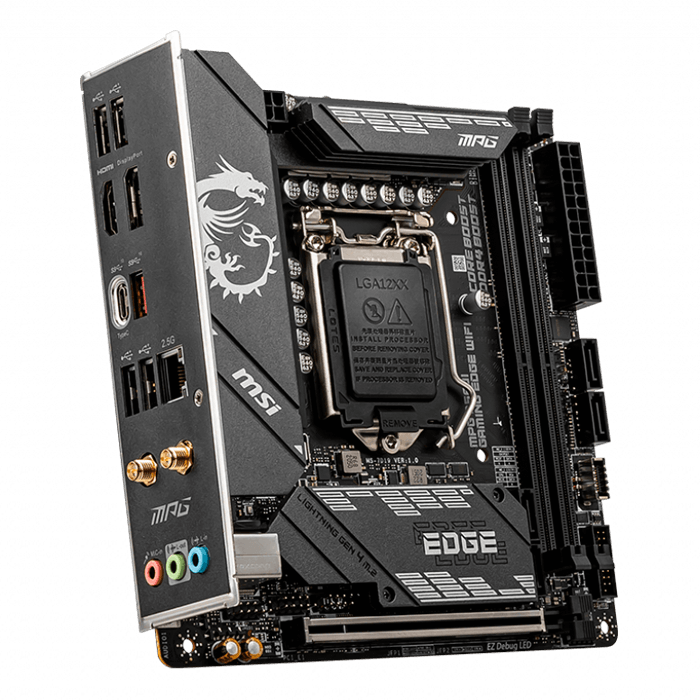

| BACK PANEL PORTS |
- DisplayPort
- USB 3.2 Gen 2 10Gbps Type-A
- 2.5G LAN
- Wi-Fi/Bluetooth
- USB 2.0
- HDMI
- USB 3.2 Gen 2 10Gbps Type-C
- USB 2.0
- Audio Connectors
|
| DIMENSIONS |
- Mini-ITX Form Factor
- 6.7 in. x 6.7 in. [17.0 cm x 17.0 cm]
|
| MOUNTING |
4 mounting holes
|
| OPERATING SYSTEM |
- Support for Windows® 10 64-bit
|
