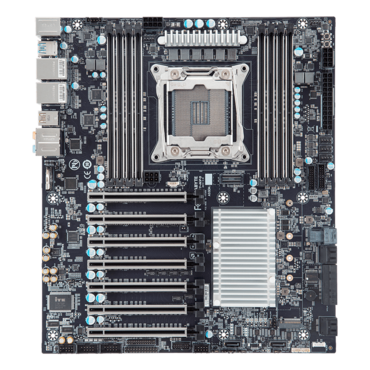

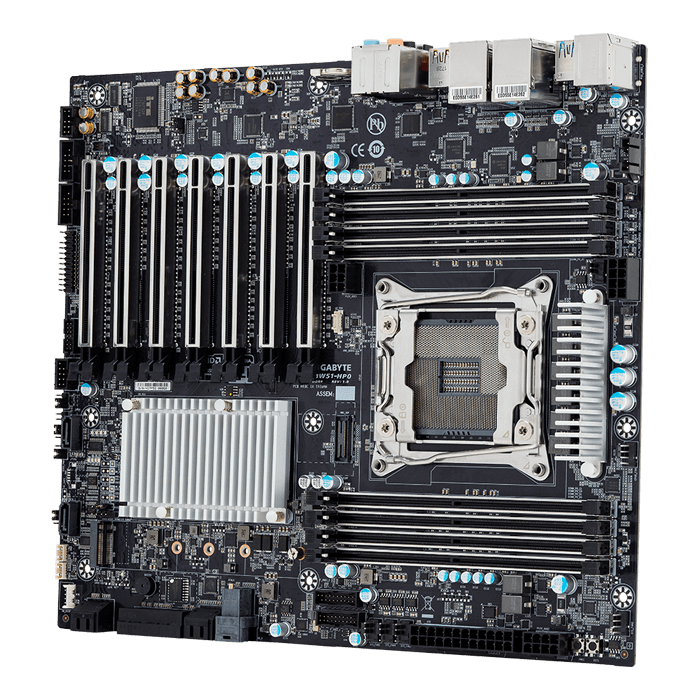

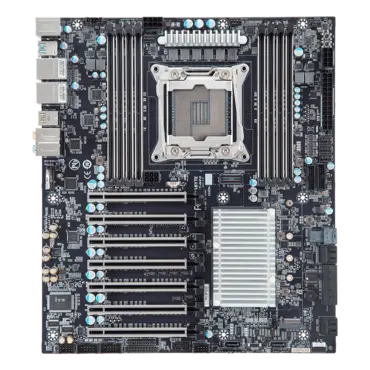

MW51-HP0, Intel C422, LGA 2066, DDR4-2666 512GB LRDIMM / 8, SATA DOM, M.2, U.2 Port, USB 3.1, GbLAN / 2, CEB Retail
Quantity:
- SKU: 11581688
- Manufacturer: GIGABYTE
- MPN: MW51-HP0
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$679.75
- Intel® Xeon® W-series Processor Family
- Intel® C422 Express Chipset
- Quad Channel RDIMM/LRDIMM DDR4, 8 x DIMMs
- Intel® VROC ready
- ASMedia 2142 USB 3.1 Gen 3 USB controller
- Realtek ALC1150 HD audio codec
- 2 x GbE LAN ports (Intel® I210)
- 8 x SATA III 6Gb/s ports from C422, supports SATA DOM
- 2 x SATA III 6Gb/s ports from Marvell® 88SE9172 controller
- Ultra-Fast M.2 and U.2 with PCIe Gen3 x4 interface
- 4 x Full speed PCIe Gen3 x16 slots; total 7 x expansion PCIe x16 slots
| Form Factor | CEB
304.8W x 266.7D (mm) |
| Socket | 1 x LGA 2066
Mounting pitch: square ILM (80x80mm) |
| Chipset | Intel® C422 |
| Memory | 8 x DIMM slots
DDR4 memory module supported only Quad channel memory architecture RDIMM modules up to 32GB supported LRDIMM modules up to 64GB supported 1.2V modules: 1866/2133/2400/2666(1DPC) MHz NOTE: When installing the memory,make sure to begin with the first socket of each channel, such as DIMM_P0_A0, DIMM_P0_B0, DIMM_P0_C0, DIMM_P0_D0 |
| LAN | 2 x GbE LAN ports (Intel® I210) |
| Video | - |
| Audio | Realtek® ALC1150 HD audio codec
Supports 7.1 channel configurations |
| SAS | - |
| SATA | 8 x SATA III 6Gb/s ports with 2 x SATA DOM supported
2 x SATA III 6Gb/s ports (Marvell 88SE9172® controller) |
| RAID | Intel® SATA RAID 0/1/10/5 |
| Expansion Slots | Slot_7: 1 x PCIe x16 (Gen3 x16 bus) slot from CPU0
Slot_6: 1 x PCIe x16 (Gen3 x0 or x8 bus) slot Slot_5: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot, shared with slot_6 Slot_4: 1 x PCIe x16 (Gen3 x0 or x8 bus) slot Slot_3: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot, shared with slot_4 Slot_2: 1 x PCIe x16 (Gen3 x0 or x8 bus) slot Slot_1: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot, shared with slot_2 1 x M.2 slot: - M-key - PCIe Gen3 x4 - Supports NGFF-2242/2260/2280/22110 cards 1 x U.2 connector: -Mini-SAS HD type - PCIe Gen3 x4 Support NVIDIA® SLI™ and AMD® CrossFireX™ technologies (2-way, 3-way, 4-way) NOTE: Graphic card requests UEFI-ready |
| Internal I/O | 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector 1 x 4-pin and 1 x 3-pin for GPU power connectors 1 x CPU fan header 5 x System fan headers 2 x USB 3.0 headers for 4 ports 1 x USB 2.0 headers for 2 ports 1 x Front audio header 1 x PMBus connector 1 x Clear CMOS jumper 10 x SATA III 6Gb/s ports 2 x SATA DOM jumpers 2 x SATA DOM SGPIO connectors 1 x ME update jumper 1 x M.2 slot 1 x U.2 connector 1 x Front panel header 1 x Back plane board header 2 x COM headers 1 x TPM header 1 x VROC connector 1 x BIOS recovery jumper 1 x Buzzer |
| Rear I/O | 1 x PS/2
8 x USB 3.0 2 x USB 3.1 in Type-A(red) and Type-C(red) (5V/3A) 2 x RJ45 5 x Audio jacks 1 x Optical S/PDIF-Out |
| TPM | 1 x TPM header |
| OS Supported | Windows 7 (x64)
Windows 10 (x64) Red Hat Enterprise Linux 6.8 (x64) Red Hat Enterprise Linux 7.3 (x64) SUSE Linux Enterprise Server 11.4 (x64) SUSE Linux Enterprise Server 12.2 (x64) Ubuntu 16.04 LTS (x64) Ubuntu 16.10 LTS (x64) |
| Board Management | - |
| PSU Connectors | 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector |
| Operating Properties | Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
| Retail Packaging Content | 1 x MW51-HP0
1 x Driver CD 1 x I/O shield 1 x User manual 8 x SATA III 6Gb/s cables (500mm) 1 x External thermistor cable (2P/900mm) Single Box dimensions: 360 x 330 x 80 mm Carton dimension: 674 x 424 x 385 mm Quantity: 10 x single box with one carton |
| Bulk Packaging Content | 10 x MW51-HP0
10 x I/O shields Carton dimensions: 600 x 473 x 495 mm |
| Reference Numbers | Retail: 9MW51HP0MR-00
Bulk: 9MW51HP0NR-00 I/O shield: 12AIO-MW51H0-00R Fan-sink: 25ST0-7C9220-T1R ( in option) |
