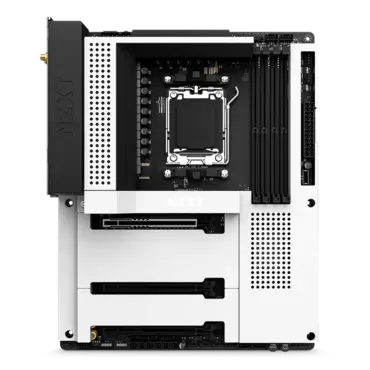

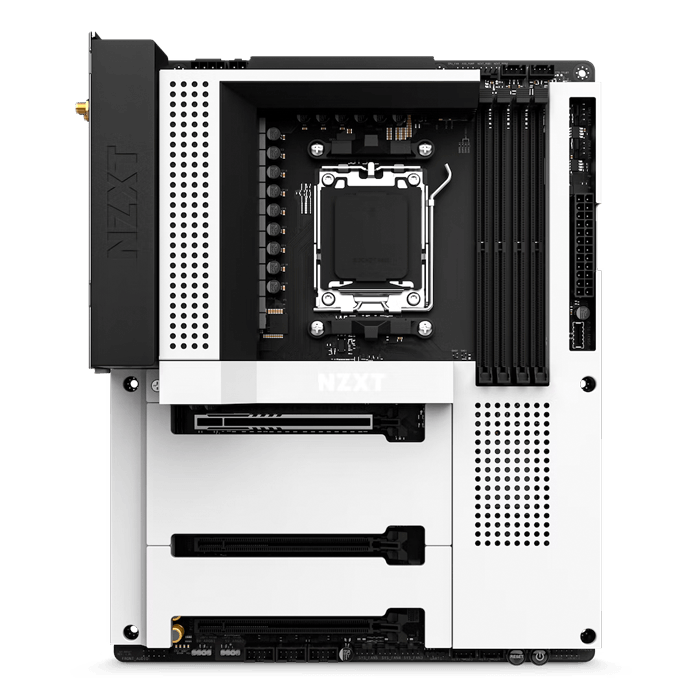

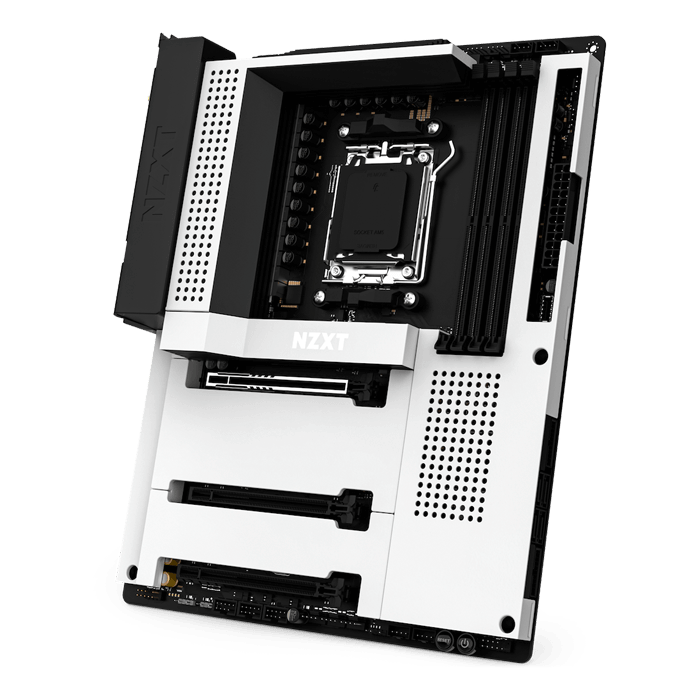

N7 B650E, AMD B650 Chipset, AM5, White, ATX Motherboard
Quantity:
- SKU: 15777233
- Manufacturer: NZXT
- MPN: N7-B65XT-W1
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$340.58
N7 B650E, AMD B650 Chipset, AM5, White, ATX Motherboard
This motherboard enables a visually seamless backdrop for any build with all the features of the reliable AMD B650E chipset.

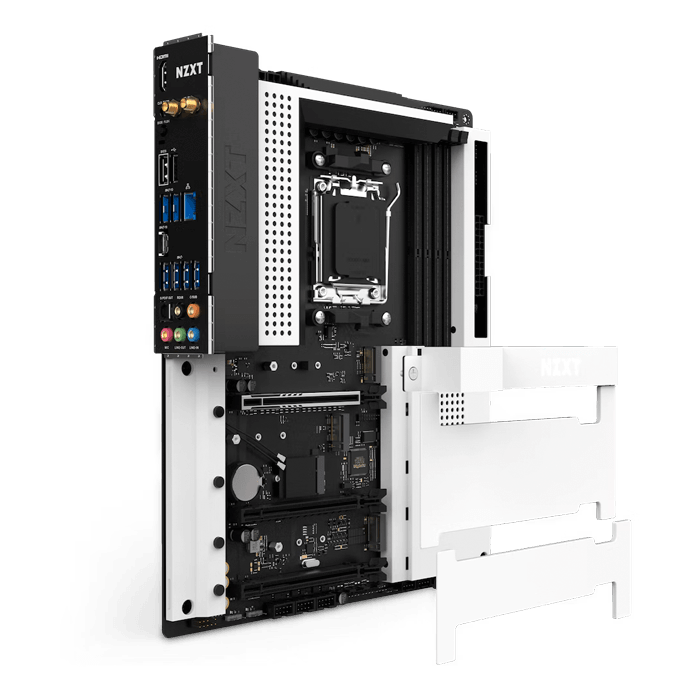

- Seamless cover with integrated heat spreader
- Digital RGB lighting control through CAM
- Digital fan control for convenient fan profiles with seven independent fan channels
- Integrated rear I/O shield and efficient layout
- 16+2+1 Power phase design with 90A Smart Power Stage(SPS)
| CPU | |
| AMD Socket AM5 Ryzen™ 7000 Series Processors: | Supported |
| CHIPSET | |
| AMD: | B650 |
| MEMORY | |
| DIMM Slots: | 4, DDR5 only |
| Max Memory Support: | 128GB |
| Memory Architecture: | Dual-Channel |
| OC Frequency: | DDR5 Non-ECC, Un-buffered Memory up to 6000+ (OC). Please refer to Memory QVL on NZXT’s website (www.nzxt.com) for more information. |
| Extreme Memory Profile (XMP): | Supported |
| EXTended Profiles for Overclocking (EXPO): | Supported |
| EXPANSION SLOTS | |
| PCIe 5.0 ×16 slot (PCIEX16_1), supports ×16 mode: | 1 (Supports NVMe SSD as boot disks) |
| PCIe 4.0 ×16 slots (PCIEX16_2 and PCIEX16_3), support ×2 mode: | 2 (Supports NVMe SSD as boot disks) |
| M.2 Socket (Key E), supports Type 2230 Wi-Fi/BT PCIe Wi-Fi module: | 1 |
| INTEGRATED GRAPHICS | |
| Integrated AMD RDNA™ 2 graphics: | Supported |
| HDMI 2.1 TMD Compatible: | 1 |
| HDR: | Supported |
| HDCP 2.3: | max. resolution up to 4K 60Hz |
| STORAGE | |
| M.2_1, Type 2242/2260/2280 (PCIe 5.0 ×4 mode): | 1 |
| M.2_2, Type 2242/2260/2280 (PCIe 4.0 ×4 mode): | 1 |
| M.2_3, Type 2242/2260/2280 (PCIe 4.0 ×2 mode): | 1 |
| SATA 6Gb/s ports: | 4 |
| RAID 0/1/10 for SATA storage devices: | Supported |
| RAID 0/1/10 for M.2 NVMe storage devices: | Supported |
| NVMe SSD as boot disks: | Supported |
| LAN | |
| Realtek®: | RTL8125BG 2.5G LAN |
| WIRELESS | |
| 802.11ax Wi-Fi 6E Module: | Supported |
| Bluetooth: | V5.2 |
| AUDIO | |
| Realtek®: | ALC1220 Codec |

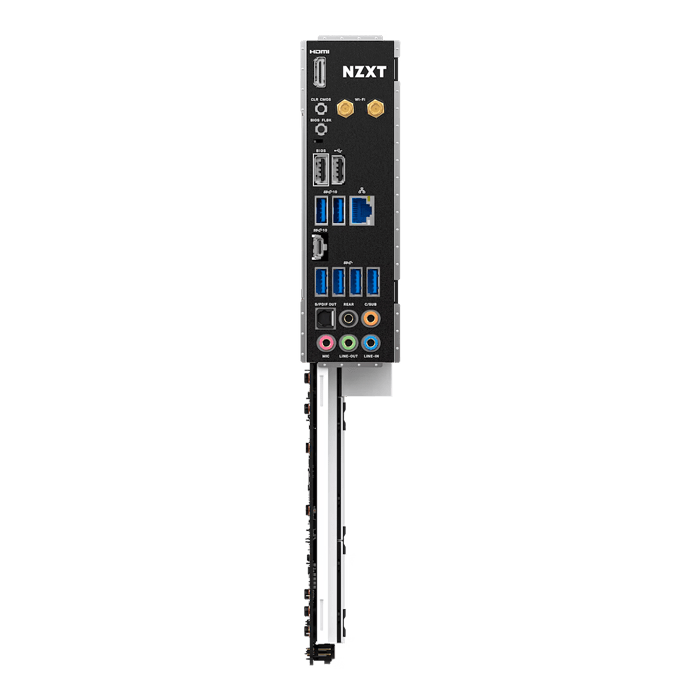

| REAR I/O | |
| Wireless antenna SMA connectors: | 2 |
| HDMI™ port: | 1 |
| USB 2.0: | 2 |
| USB 3.2 Gen 2 Type-C port: | 1 |
| USB 3.2 Gen 2 ports: | 2 |
| USB 3.2 Gen 1 ports: | 4 |
| Clear CMOS button: | 1 |
| BIOS Flashback button: | 1 |
| LAN (RJ45) port: | 1 |
| Audio jacks: | 5 |
| Optical S/PDIF Out port: | 1 |
| INTERNAL I/O | |
| 24-pin ATX power connector: | 1 |
| 8+4-pin ATX 12V power connector: | 1 |
| 4-pin CPU_FAN connector: | 1 |
| 4-pin AIO_PUMP connector: | 1 |
| 4-pin SYS_FAN connectors: | 5 |
| NZXT RGB LED connectors: | 4 |
| 5V ARGB LED connector: | 2 |
| USB 2.0 header (Up to 6 USB 2.0 ports): | 3 |
| USB 3.2 Gen1 header (Up to 4 USB 3.2 Gen 1 ports): | 2 |
| USB 3.2 Gen2x2 front panel header (For USB Type-C): | 1 |
| Front panel audio connector: | 1 |
| Power button: | 1 |
| Reset button: | 1 |
| POST LEDs: | 4 |
| GENERAL | |
| System Requirements: | NZXT CAM software requires Microsoft Windows® 11/10 operating system. |
| Form Factor: | ATX |
| Warranty: | 3 years |
| Certifications: | FCC, CE, WHQL, ErP/EuP Ready |
| Model Number: | N7-B65XT-W1 (White) |
| UPC: | 810074842877 (White) |
| EAN: | 5056547202815 (White) |
