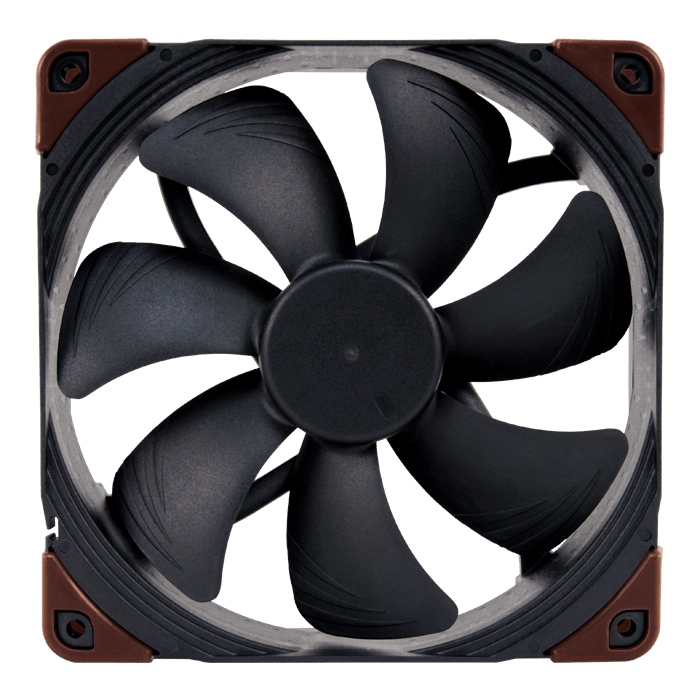

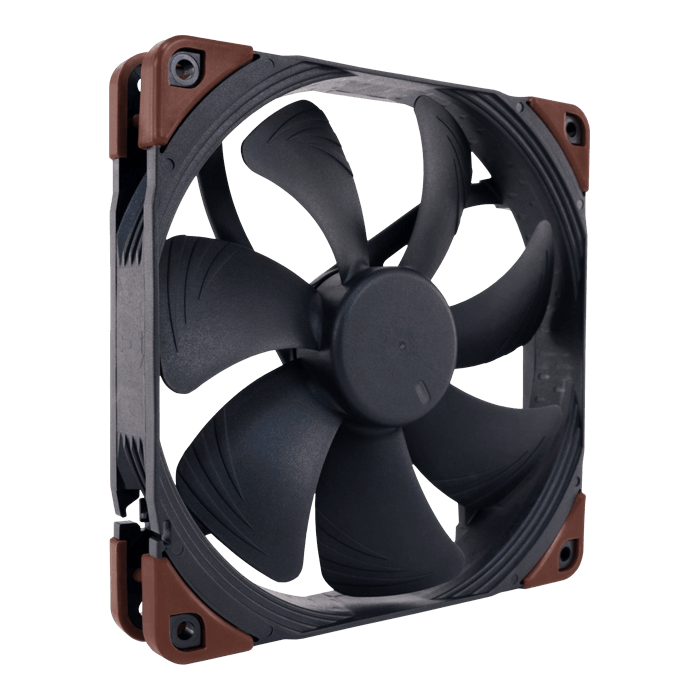

NF-A14 iPPC-2000 IP67 140mm, 2000 RPM, 107.4 CFM, 31.5 dBA, Cooling Fan
Quantity:
- SKU: 13468911
- Manufacturer: NOCTUA
- MPN: NF-A14 iPPC-2000 IP67
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$45.20
| Size | 140x140x25 mm |
| Mounting hole spacing | 124,5x124,5 mm |
| Connector & pin-configuration | 4-pin PWM |
| Cable length | 40cm |
| Bearing | SSO2 |
| Blade geometry | A-Series with Flow Acceleration Channels |
| Frame technology | AAO |
| Material | Fibre-glass reinforced polyamide |
| Ingress protection | IP67 |
| Motor type | Three-phase |
| Rotational speed (+/- 10%) | 2000 RPM |
| Min. rotational speed (PWM, +/-20%) | 500 RPM |
| Airflow | 182,5 m³/h |
| Acoustical noise | 31,5 dB(A) |
| Static pressure | 4,18 mm H2O |
| Max. input power | 2,16 W |
| Max. input current | 0,18 A |
| Operating voltage | 12 V |
| MTTF | > 150.000 h |
| Scope of delivery |
|
| Warranty | 6 years |
