Having received more than 100 awards and recommendations from international hardware websites and magazines, the NF-S12A is one of Noctua’s most renowned and popular 120mm fans. Its outstanding airflow efficiency and superb acoustics make it ideal for case cooling and other low-impedance applications. The chromax.black.swap edition combines the NF-S12A’s signature quiet cooling performance with an attractive all-black design and a bundle of swappable red, white, blue, green, yellow and black anti-vibration pads that allow the colour-customisation of the fan to match individual build colour schemes. For further customisation, a wide range of accessories such as coloured cables, additional anti-vibration pads and anti-vibration mounts are available separately. Topped off with Noctua’s trusted premium-grade SSO2 bearing, more than 150,000 hours MTTF and 6-year manufacturer’s warranty, the NF-S12A PWM chromax.black.swap is the perfect choice for all users who value individual, focused build aesthetics just as much as class-leading quality and performance.
- Premium quiet fan, 120x120x25 mm, 12V, 4-pin PWM, max. 1200 RPM, max. 17.8 dB(A), >150,000 h MTTF
- Award-winning NF-S12A design has received more than 100 recommendations from international hardware websites and magazines
- Outstanding airflow efficiency and superb acoustics: ideal for case cooling and other low impedance applications
- 4-pin PWM version for automatic speed control via 4-pin PWM fan headers, 1200rpm maximum speed

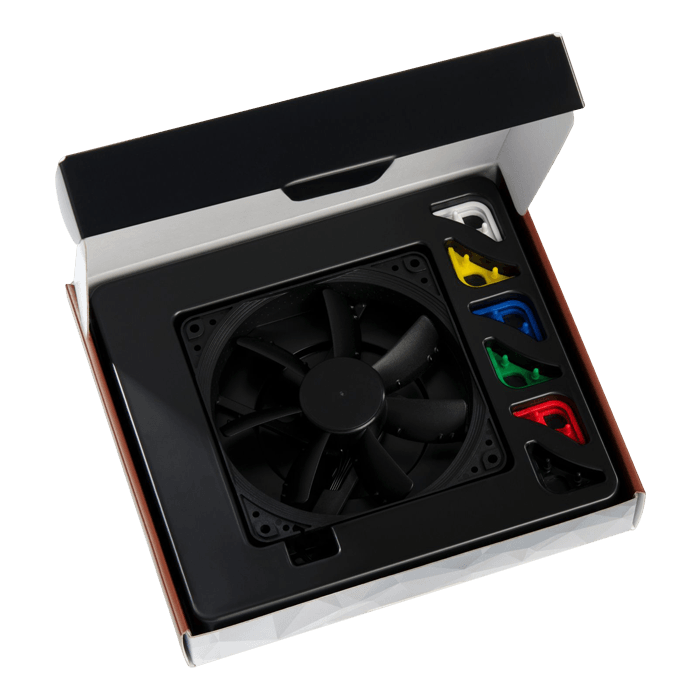

- chromax.black.swap edition with attractive all-black design and swappable red, black, white, blue, yellow and green anti-vibration pads for colour-customising
FAN Specification | |
Size | 120x120x25 mm |
Mounting hole spacing | 105x105 mm |
Connector & pin-configuration | 4-pin PWM |
Cable length | 1cm + 30cm NA-EC1 extension cable |
Bearing | SSO2 |
Blade geometry | S-Series with Anti-Stall Knobs |
Frame technology | AAO (Advanced Acoustic Optimisation) |
Rotational speed (+/- 10%) | 1200 RPM |
Min. rotational speed (PWM, +/-20%) | 300 RPM |
Airflow | 107,5 m³/h |
Acoustical noise | 17,8 dB(A) |
Static pressure | 1,19 mm H2O |
Max. input power | 1,44 W |
Max. input current | 0,12 A |
Operating voltage | 12 V |
MTTF | > 150.000 h |
Scope of delivery |
|
Warranty | 6 years |
