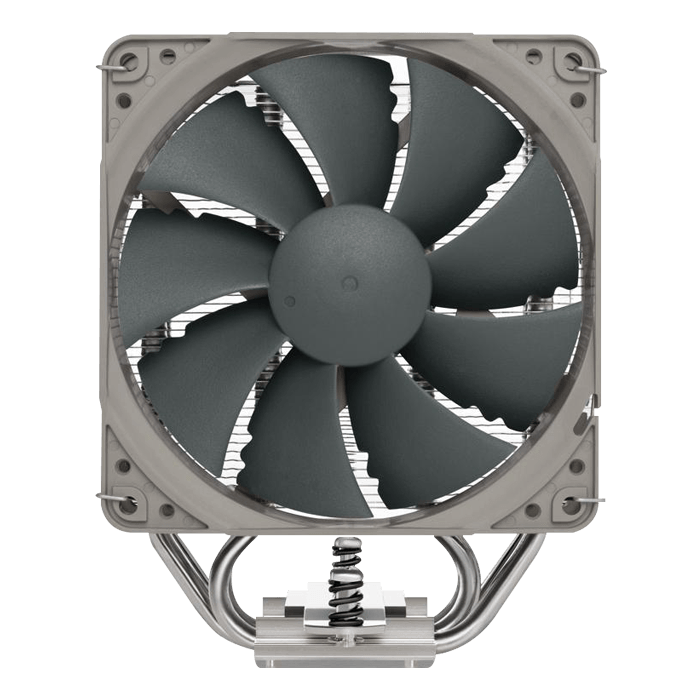

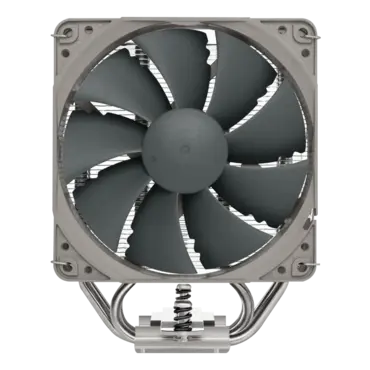

NH-U12S Redux, 158mm Height, 160W TDP, Nickel plated Copper/Aluminum CPU Cooler
- SKU: 13995510
- Manufacturer: NOCTUA
- MPN: NH-U12S Redux
- Availability: TEMPORARILY OUT OF STOCK
True to the spirit of Noctua’s redux line, the NH-U12S redux is a streamlined, accessibly priced version of the iconic NH-U12S that has established itself as a benchmark for slim, highly compatible 120mm CPU coolers. The redux version uses the same proven heatsink layout that guarantees 100% compatibility with tall RAM modules as well as excellent case and PCIe compatibility. Thanks to the popular NF-P12 redux-1700 PWM fan with automatic speed control, it provides high performance under load and runs whisper-quiet at idle. At the same time, Noctua’s renowned, professional SecuFirm2™ mounting system and the pre-applied NT-H1 thermal compound make installation child’s play. Backed up with Noctua’s trusted 6-year manufacturer’s warranty, the NH-U12S redux is a smart, affordable choice for a quiet, high-quality 120mm cooler.
| Cooler Specification | |
|---|---|
| Socket compatibility | Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM4 |
| Height (without fan) | 158 mm |
| Width (without fan) | 125 mm |
| Depth (without fan) | 45 mm |
| Height (with fan) | 158 mm |
| Width (with fan) | 125 mm |
| Depth (with fan) | 71 mm |
| Weight (with fan) | 755 g |
| Material | Nickel plated Copper (base and heat-pipes), aluminium (cooling fins) |
| NSPR | 129 |
| Max. TDP | see NSPR |
| Fan compatibility | 120x120x25 |
| Scope of delivery |
|
| Warranty | 6 Years |
| FAN Specification | |
| Model | NF-P12 redux-1700 PWM |
| Bearing | SSO |
| Max. rotational speed (+/- 10%) | 1700 RPM |
| Min. rotational speed (PWM, +/-20%) | 450 RPM |
| Max. airflow | 120,2 m³/h |
| Max. acoustical noise | 25,1 dB(A) |
| Voltage range | 12 V |
| MTTF | > 150.000 h |
