READY TO SHIP
NH-U14S DX-3647, 165mm Height, 200W TDP, Copper/Aluminum CPU Cooler
Quantity:
- SKU: 12179240
- Manufacturer: NOCTUA
- MPN: NH-U14S DX-3647
- Availability: LOW STOCK
Starting At
$150.21

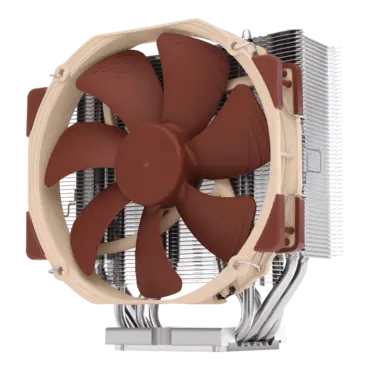

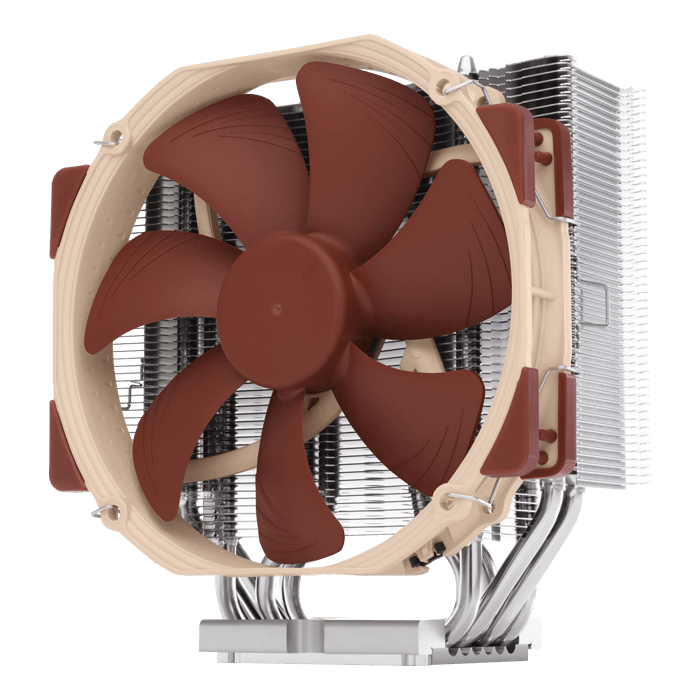

NH-U14S DX-3647, 165mm Height, 200W TDP, Copper/Aluminum CPU Cooler
Please note that the NH-U14S DX-3647 is a dedicated version for the Intel LGA3647 socket. Due to its customised larger base, it cannot be used on any other sockets and is incompatible with Noctua’s standard mounting kits.
| Cooler Specification | |
| Socket compatibility | Intel Xeon LGA3647 |
| Height (without fan) | 165 mm |
| Width (without fan) | 150 mm |
| Depth (without fan) | 52 mm |
| Weight (without fan) | 797 g |
| Height (with fan) | 165 mm |
| Width (with fan) | 150 mm |
| Depth (with fan) | 78 mm |
| Weight (with fan) | 957 g |
| Material | Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
| Max. TDP | see TDP guide max_tdp |
| Fan compatibility | 140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25 |
| Scope of delivery |
|
| Warranty | 6 Years |
| FAN Specification | |
| Model | Noctua NF-A15 PWM |
| Bearing | SSO2 |
| Max. rotational speed (+/- 10%) | 1500 RPM |
| Min. rotational speed (PWM, +/-20%) | 300 RPM |
| Max. airflow | 140,2 m³/h |
| Max. acoustical noise | 24,6 dB(A) |
| Input power | 1,56 W |
| Voltage range | 12 V |
| MTTF | > 150.000 h |
