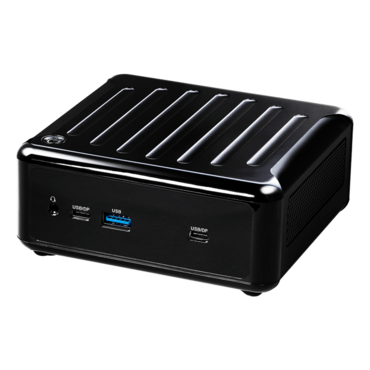

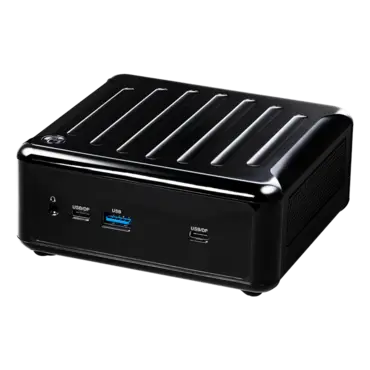

NUC BOX-1360P/D5, Intel® Core™ i7-1360P, 2x DDR5 SO-DIMM, 2.5" HDD/SSD, M.2, Intel® Iris® Xe Graphics, Mini PC Fanned Barebone
Quantity:
- SKU: 16135319
- Manufacturer: ASROCK
- MPN: NUC BOX-1360P/D5
- Availability: CONTACT US
Starting At
$675.14
| Processor System | |
| CPU |
Intel® 13th Gen (Raptor Lake-P) Core™ Processors NUC BOX-1360P/D5( i7-1360P, 4P+8E) |
|---|---|
| Chipset | MCP |
| BIOS | AMI SPI 256 Mbit |
| Form Factor | |
| Dimensions | 110.0 x 117.5 x 47.85mm |
| Memory | |
| Technology | Dual Channel DDR5 4800 MHz |
| Capacity | 32GB (16 GB per DIMM) |
| Socket | 2 x 262-pin SO-DIMM |
| Graphics | |
| Controller | Intel® Iris® Xe Graphics |
| HDMI |
HDMI 2.0b Max resolution up to 4096x2160@60Hz |
| DisplayPort |
DisplayPort 2.1/ 1.4a, DP++ Max resolution up to 4096x2160@60Hz |
| MultiDisplay | Quad-Display (Included 2 outputs from Type-C) |
| Expansion Slot | |
| M.2/WLAN | 1 x Wi-Fi 6E 802.11ax + BT 5.3 |
| Audio | |
| Interface | Realtek ALC256, High Definition Audio. |
| Ethernet | |
| Controller/ Speed |
LAN1: Intel® I226LM with 10/100/1000/2500 Mbps, supports vPro LAN2: Intel® I226V with 10/100/1000/2500 Mbps |
| Connector | 2 x RJ-45 |

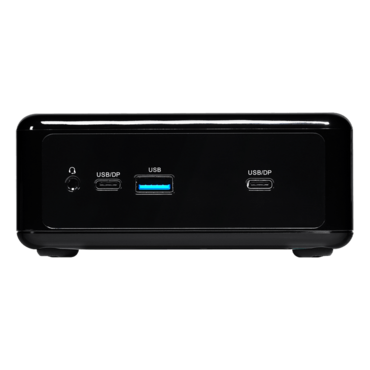

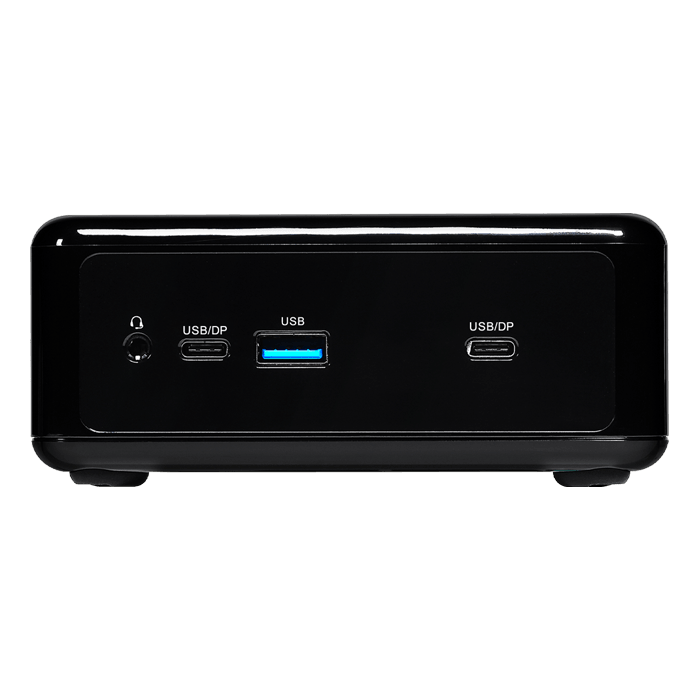

| Front I/O | |
| USB |
1 x USB 3.2 Gen2 (Type A) 1 x USB4/Thunderbolt™ 4 (Supports DP 2.1 display output) 1 x USB3.2 gen2 (Type-C, Supports DP1.4a display output) *For Thunderbolt support, please refer to support list. |
| Audio | 1 (headphone & microphone jack) |

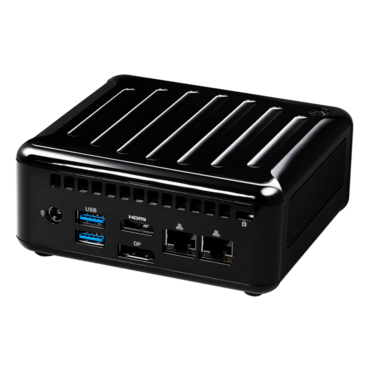

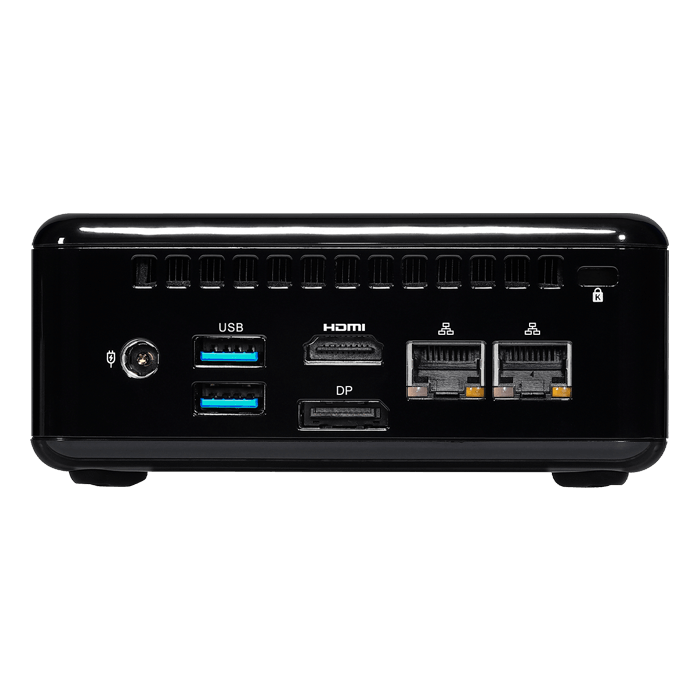

| Rear I/O | |
| HDMI | 1 x HDMI 2.0b |
| DisplayPort | 1 x DP 1.4a |
| Ethernet | 2 x 2.5 Gigabit LAN |
| USB | 2 x USB 3.2 Gen2 (Type-A) |
| DC Jack | 1 |
| Storage | |
| M.2 |
1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen4 x4 for SSD *M.2 Key M 2280(Supported by bracket) |
| SATA | 1 x SATA3.0 (6.0 Gb/s) |
| Watchdog Timer | |
| Output | From Super I/O to drag RESETCON# |
| Interval | 256 Segments, 0, 1, 2, ...255sec |
| Power Requirements | |
| Input PWR | 12V~19V DC-In Jack |
| Power On |
AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
| Environment | |
| Operating Temp | 0ºC ~ 40ºC |
| Storage Temp | -40° C – 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
| Mechanical | |
| Mounting | VESA mount |
| Dimensions (L x W x H) | 117.5 x 110.0 x 47.85mm (4.63" x 4.33" x 1.88") |
| Weight | Net Weight:1.0Kg |
| Others | |
| OS Support | Windows 10/11 |
| TPM | TPM 2.0 onboard IC |
| Certifications | CE, FCC |
| Packing List |
19V/120W Power Adapter (i7-1360P) 19V/90W Power Adapter (i5-1340P) 1 x VESA mount bracket |
