NUCS BOX-1340P/D4, Intel® Core™ i5-1340P, 2x DDR4 SO-DIMM, M.2, Intel® Iris® Xe Graphics, Mini PC Fanned Barebone
Quantity:
- SKU: 15783529
- Manufacturer: ASROCK
- MPN: NUCS BOX-1340P/D4
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$530.44
- Intel® 13th Gen (Raptor Lake-P) Core™ Processors i5-1340P
- 2 x 260-pin SO-DIMM DDR4 3200MHz up to 64GB (32GB per DIMM)
- 1 x USB4/Thunderbolt™4, 5 x USB 3.2 Gen2, 1 x M.2 Key M, 1 x M.2 Key E (WiFi-6E Module)
- 1 x Intel 2.5 Gigabit LAN
- Supports Quad display, 2 x HDMI 2.0b, 2 x DP 1.4a (from Type-C)
- TPM 2.0 onboard IC
- Supports Intel® vPro
- 19V/90W Power Adapter
- 117.5 x 110.0 x 38mm(4.63" x 4.33" x 1.50"), Slim Type Fanned Barebone
| Processor System | |
| CPU |
Intel® 13th Gen (Raptor Lake-P) Core™ Processors NUCS BOX-1340P/D4( i5-1340P, 4P+8E) |
|---|---|
| Chipset | MCP |
| BIOS | AMI SPI 256 Mbit |
| Memory | |
| Technology | Dual Channel DDR4 3200 MHz |
| Capacity | 64GB (32 GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
| Graphics | |
| Controller | Intel® Iris® Xe Graphics |
| HDMI |
HDMI 2.0b Max resolution up to 4096x2160@60Hz |
| DisplayPort |
DisplayPort 1.4, DP++ Max resolution up to 4096x2160@60Hz |
| MultiDisplay | Quad-Display (Included 2 outputs from Type-C) |
| Expansion Slot | |
| M.2/WLAN | 1 x Wi-Fi 6E 802.11ax + BT 5.3 |
| Audio | |
| Interface | Realtek ALC233, High Definition Audio. |
| Ethernet | |
| Controller/ Speed | Intel® I226LM with 10/100/1000/2500 Mbps, supports vPro |
| Connector | 1 x RJ-45 |

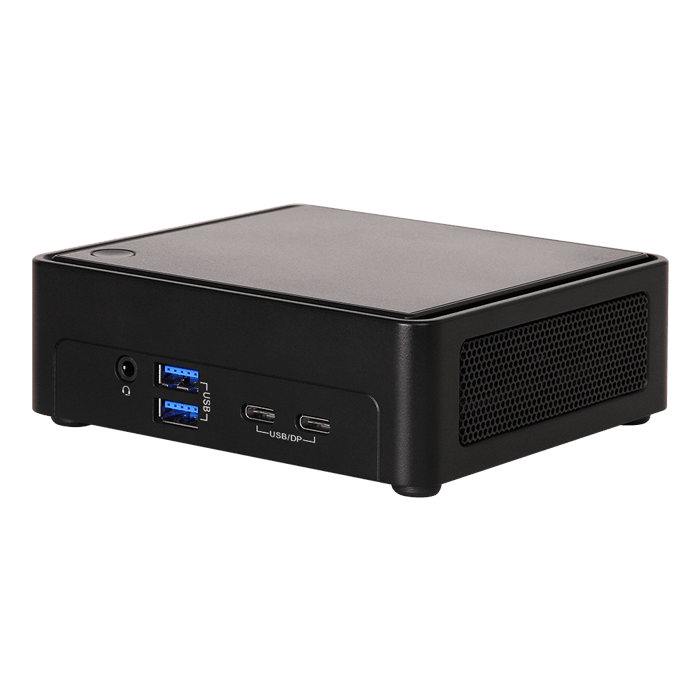

| Front I/O | |
| USB |
2 x USB 3.2 Gen2 (Type A) 1 x USB4/Thunderbolt™ 4 (Supports DP 1.4a display output) 1 x USB 3.2 Gen2 (Type-C, Supports DP 1.4a display output) *For Thunderbolt support, please refer to support list. |
| Audio | 1 (headphone & microphone jack) |

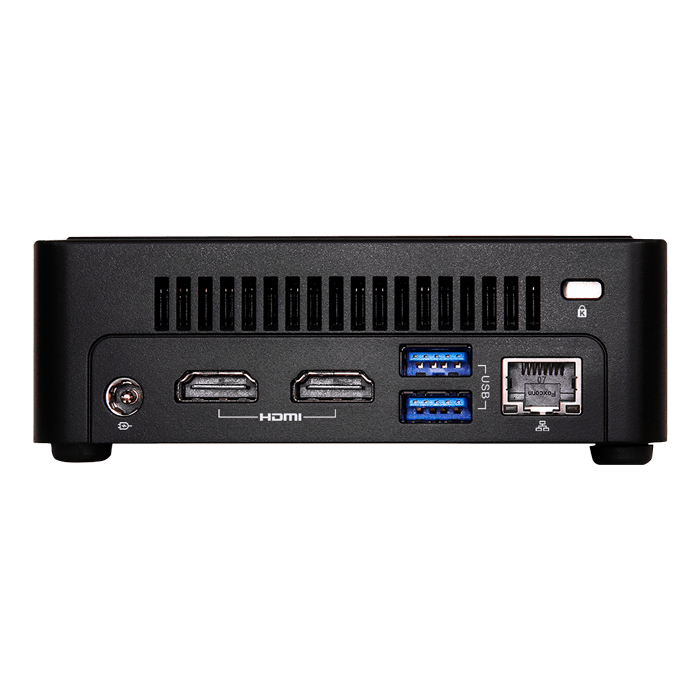

| Rear I/O | |
| HDMI | 2 x HDMI 2.0b |
| Ethernet | 1 x 2.5 Gigabit LAN |
| USB | 2 x USB 3.2 Gen2 (Type-A) |
| DC Jack | 1 |
| Storage | |
| M.2 | 1 x M.2 (Key M, 2242/2280) with PCIe Gen4 x4 for SSD |
| Watchdog Timer | |
| Output | From Super I/O to drag RESETCON# |
| Interval | 256 Segments, 0, 1, 2, ...255sec |
| Power Requirements | |
| Input PWR | 12V~19V DC-In Jack |
| Power On |
AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
| Environment | |
| Operating Temp | 0ºC ~ 40ºC |
| Storage Temp | -40° C – 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
| Mechanical | |
| Mounting | VESA mount |
| Dimensions (L x W x H) | 117.5 x 110.0 x 38mm(4.63" x 4.33" x 1.50") |
| Weight | Net Weight:1.0Kg |
| Others | |
| OS Support | Windows 10/11 |
| TPM | TPM 2.0 onboard IC |
| Certifications | CE, FCC |
| Packing List |
1 x 19V/90W Power Adapter 1 x VESA mount bracket |
