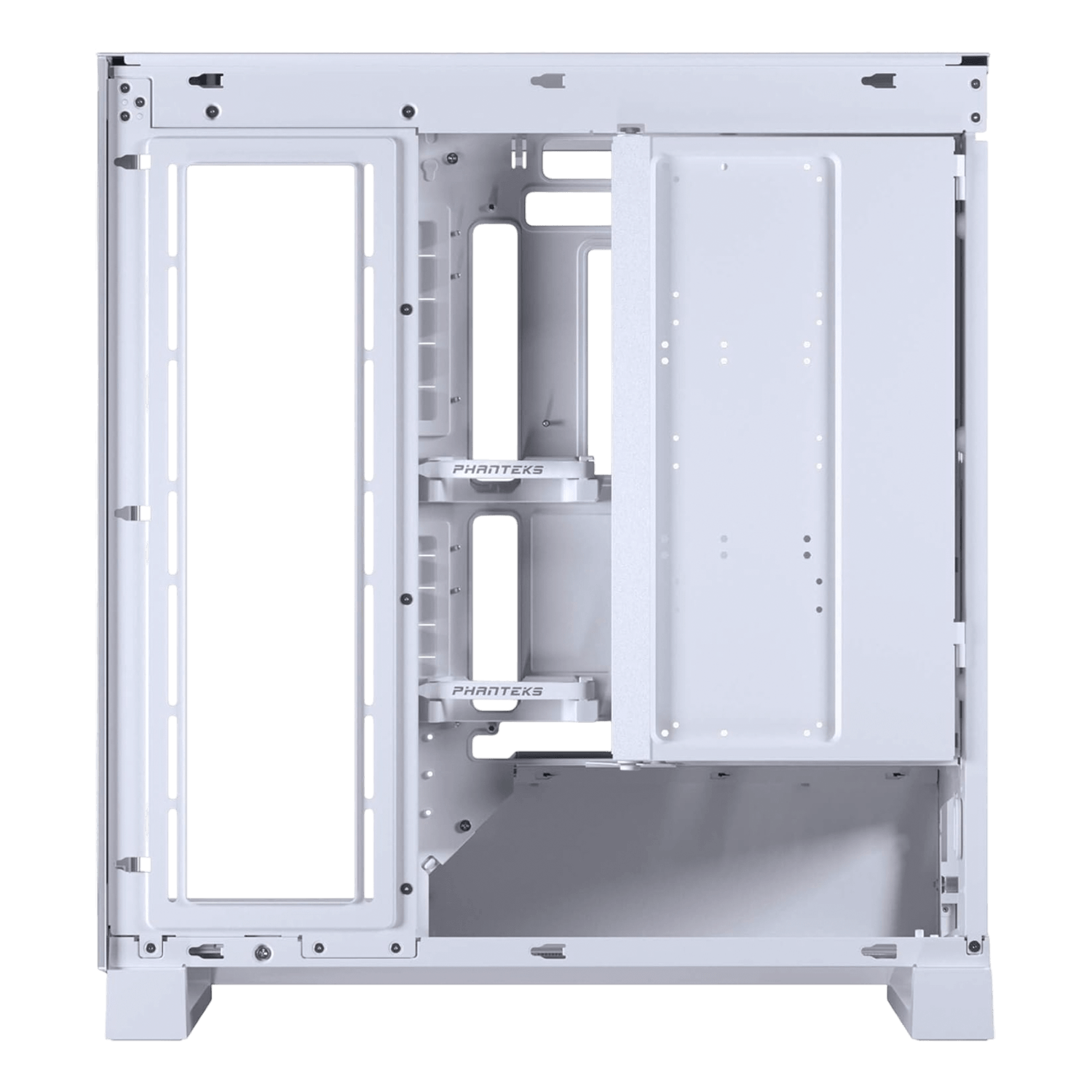

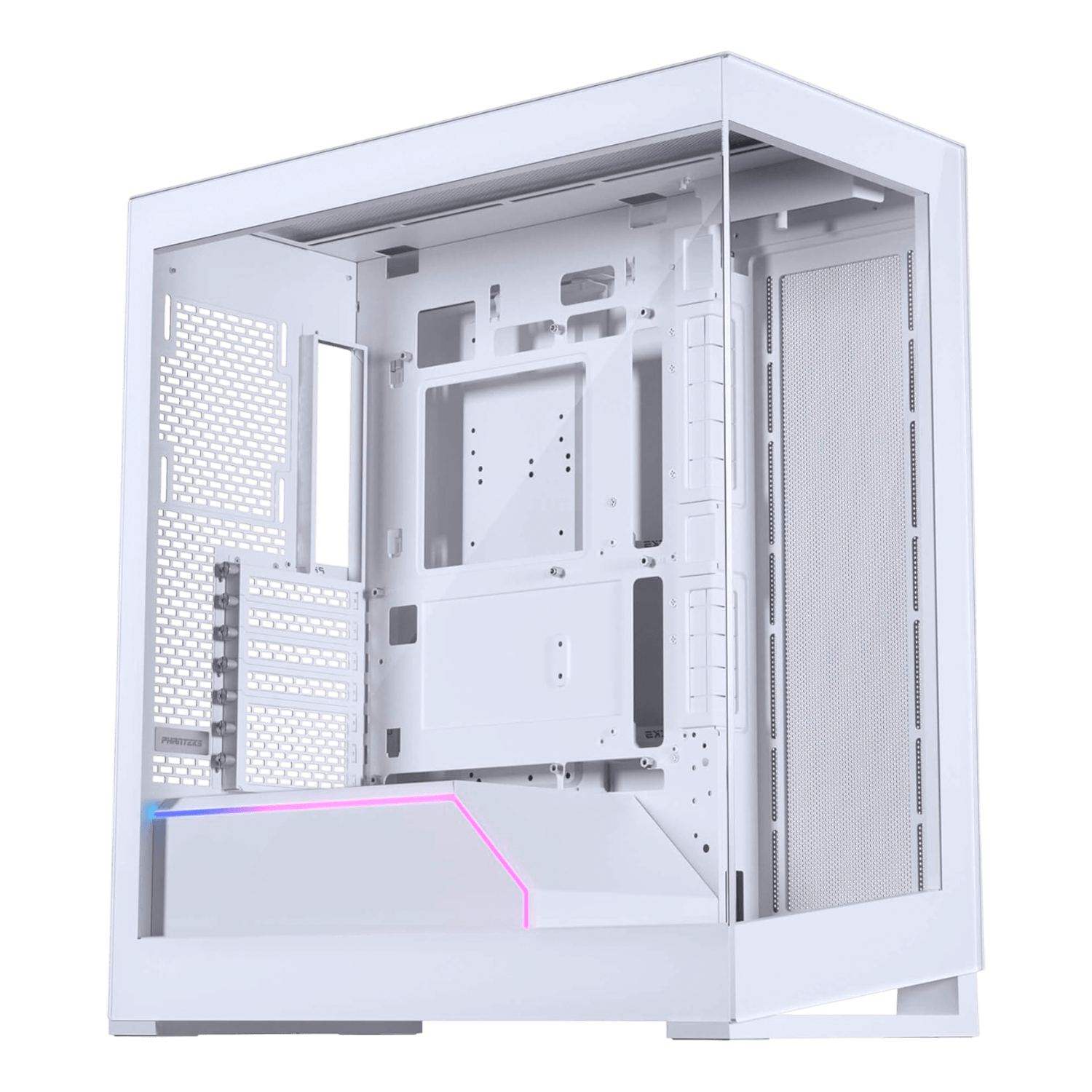

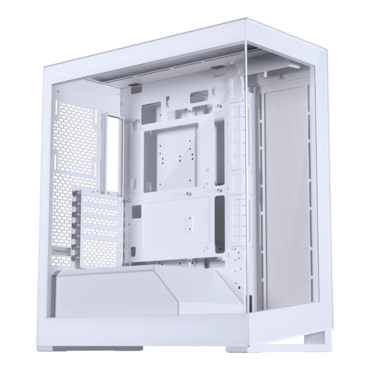

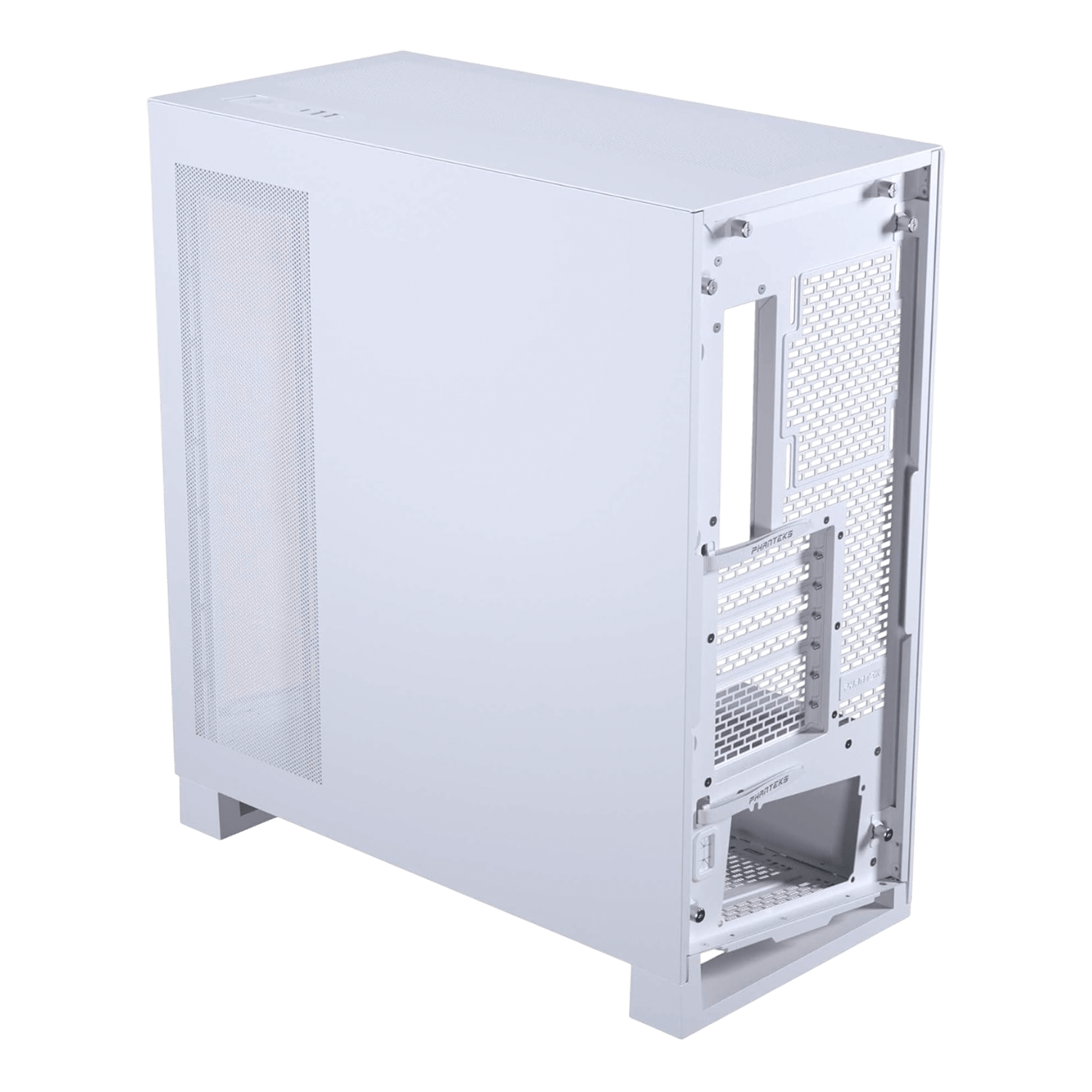

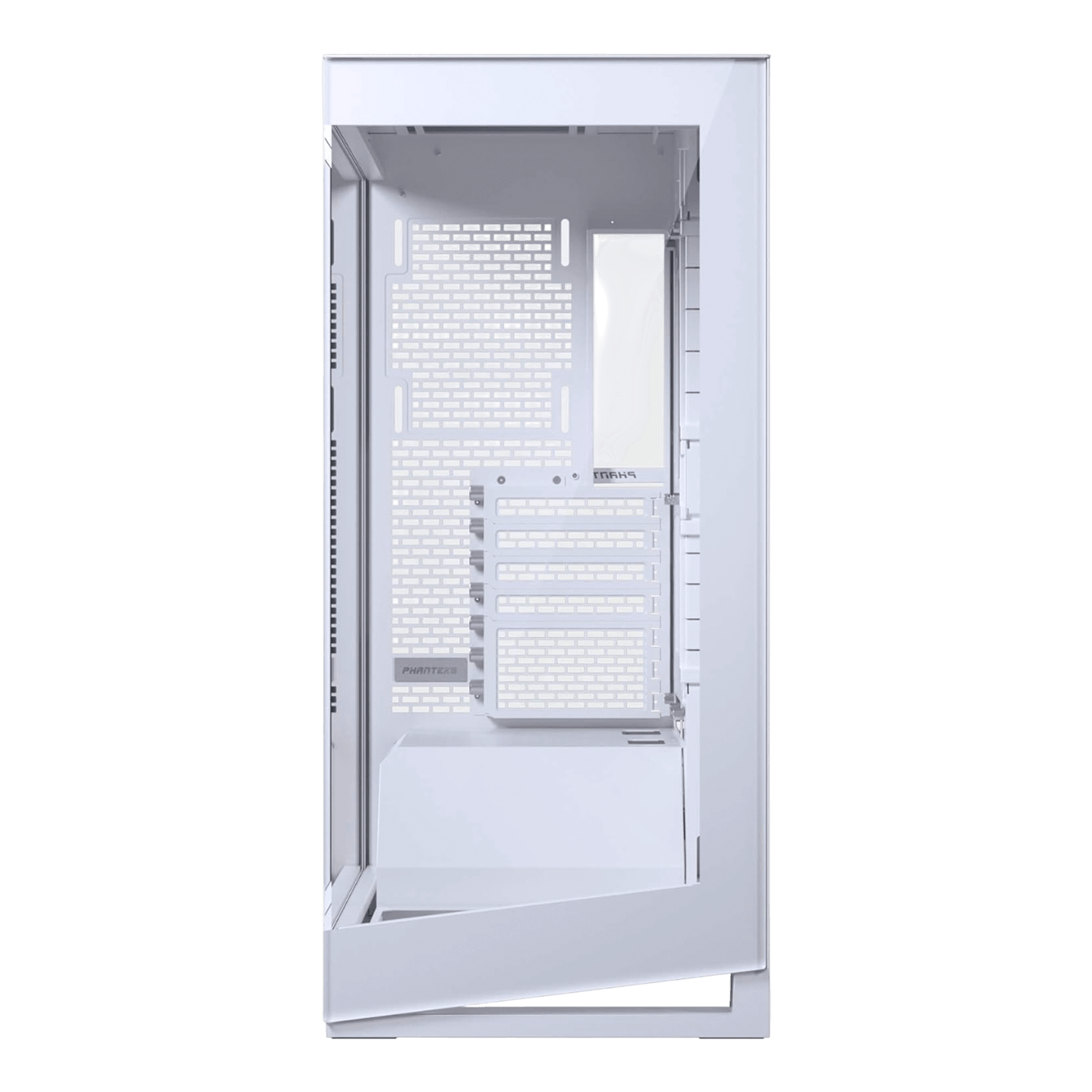

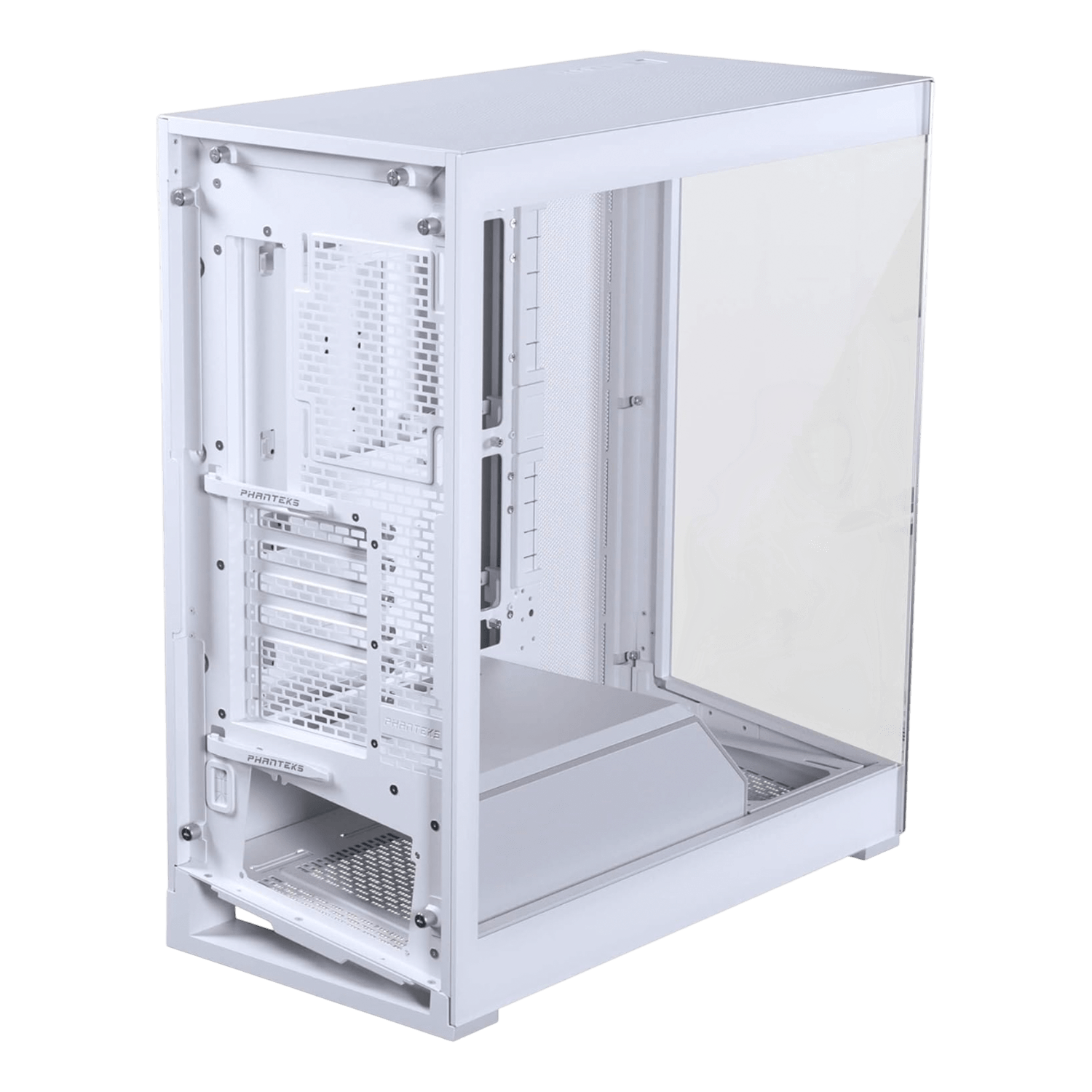

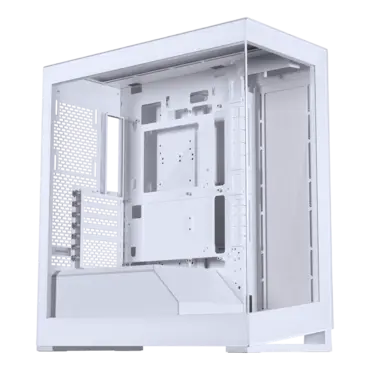

NV5 MKII, Tempered Glass, No PSU, E-ATX, Matte White, Mid Tower Case
Quantity:
- SKU: 18511733
- Manufacturer: PHANTEKS
- MPN: PH-NV523TG_DMW02
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$204.36
| General | |
| Model No. | PH-NV523TG_DMW02 |
| UPC Code | 886523303473 |
| Case Dimensions | 239 x 477 x 528 mm | 9.4 x 18.8 x 20.8 in |
| Form Factor | Mid-Tower |
| Mainboard Support |
*E-ATX | ATX | Micro-ATX | Mini-ITX *Up to 280mm without GPU Support Bracket |
| Materials | Steel chassis | Tempered glass |
| Side Window | Yes |
| PCI Slots | 7 |
| Vertical GPU Support |
3-slots Riser Cable sold separately |
| Internal 2.5″ Bay | 4 |
| Internal 3.5″ Bay | 3 |
| Front I/O |
1x USB-C 3.2 Gen 2 2x USB 3.0 Microphone | Headphone D-RGB Mode Button D-RGB Color Button Power Button |
| Fans 120 | 140 | |
| Total Fans | 8x | – |
| Top | 3x | – |
| Front | – | – |
| Side | 3x | – |
| Rear | 1x | – |
| Bottom | 1x | – |
| Radiators 120 | 140 | |
| Top | Max. 360 | – |
| Front | – | – |
| Side | Max. 360 | – |
| Rear | 120 | – |
| Bottom | – | – |
| Clearance | |
| CPU Cooler |
Height 180 mm | 7.08 in |
| GPU |
Length 440 mm | 17.32 in |
| GPU |
Height 170 mm | 6.69 in |
| Power Supply |
Length 230 mm | 9.05 in |
| Top Radiator |
Length x Width 134 x 430 x 62 mm | 5.27 x 16.92 x 2.44 in |
| Front Radiator |
Length x Width – | – |
| Side Radiator |
Length x Width 130 x 420 x 62 mm | 5.11 x 16.53 x 2.44 in |
| Rear Radiator |
Length x Width 132 x 170 mm | 5.19 x 6.69 in |
| Extra | |
| Net Weight | 11.28 kg | 24.9 lbs |
| Gross Weight | 13.97 kg | 30.8 lbs |
| Warranty |
5 Years limited Learn more |
| Scope of Delivery | 1x NV5 chassis |
| Accessory Box |
6x Zip ties 1x GPU support bracket |
| Screws |
22x Mainboard | SSD screws 4x Power supply screws 4x Thumb screws 12x Case screws 1x Motherboard stand-off 1x Stand-off removal tool |
