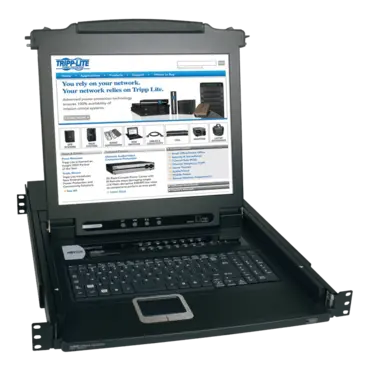

NetDirector 16-Port 1U Rack-Mount Console KVM Switch with 17-in. LCD
Quantity:
- SKU: 3503
- Manufacturer: TRIPP LITE
- MPN: B020-016-17
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$1,595.11
NetDirector 16-Port 1U Rack-Mount Console KVM Switch with 17-in. LCD
Control up to 16 computers with a single KVM switch with integrated console. This KVM switch is a smart solution for secure and centralized server control that saves rack space and money.
Control up to 16 computers with a single KVM switch with integrated console. This KVM switch is a smart solution for secure and centralized server control that saves rack space and money.
- Occupies just 1U of space in a rack-mountable drawer
- 17” LCD screen supports video resolutions up to 1280 x 1024
- Simplifies IT tasks with easy switching between all 16 ports
- Provides 2-level password security (administrator and user)
- Compatible with all operating systems
- 1-year limited warranty
| OVERVIEW | |
| UPC Code | 037332125378 |
| Console | Yes |
| Max CPU | 16 |
| Technology | PS/2; VGA/SVGA |
| VIDEO | |
| Max Supported Video Resolution | 1280 x 1024 DDC2 B |
| INPUT | |
| Voltage Compatibility (VAC) | 100; 110; 120; 127; 200; 208; 220; 230; 240 |
| PHYSICAL | |
| Color | Black |
| Material of Construction | Metal |
| LCD Monitor (in.) | 17 |
| Shipping Dimensions (hwd / in.) | 5.40 x 26.80 x 28.20 |
| Shipping Weight (lbs.) | 36.00 |
| Unit Dimensions (hwd / in.) | 1.750 x 17.000 x 24.000 |
| ENVIRONMENTAL | |
| Operating Temperature Range | -32° to 120°F (-36° to 49°C) |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Relative Humidity | 0% TO 80% RH |
| BTUs | (88 BTUs at 120V, 50Hz) / (93 BTUs at 120V, 50Hz) |
| COMMUNICATIONS | |
| Port Control | Push Buttons, Hotkeys, OSD |
| IP Remote Access | No |
| CONNECTIONS | |
| Number of Ports | 16 |
| PC/Server Connections | PS/2; USB; VGA |
| Side A - Connector 1 | (16) HD18 (FEMALE) |
| Side B - Connector 1 | (1) HD15 (FEMALE) |
| Side B - Connector 2 | (2) 6 PIN (FEMALE) |
| Side B - Connector 3 | (1) DB25 (MALE) |
| Side B - Connector 4 | (1) RJ11 (FEMALE) |
| Computer Keyboard and Mouse Interface | PS/2; USB |
| Computer Monitor Interface | VGA |
| Console Keyboard and Mouse Interface | PS/2 |
| Console Monitor Interface | VGA |
| FEATURES & SPECIFICATIONS | |
| NIAP-Certified Secure | No |
| Number of Users | 1 |
| STANDARDS & COMPLIANCE | |
| Product Certifications | EN 60950-1; CAN/CSA C22.2; CAN/CSA-C22.2 No. 60950-1 (Canada); cUL Listed; UL 60950-1; UL Listed |
| Product Compliance | RoHS; CE (Europe); FCC Part 15 Class A (USA); Trade Agreements Act (TAA) |
| WARRANTY & SUPPORT | |
| Product Warranty Period (Worldwide) | 1-year limited warranty |
