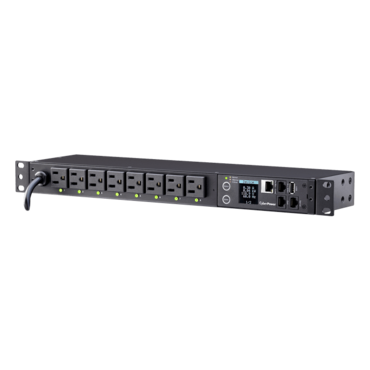

PDU41001, 8 Outlets, 12-ft cord, Black, Power Distribution Unit
- SKU: 11535689
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: PDU41001
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS

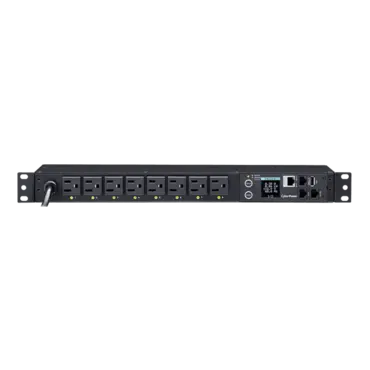

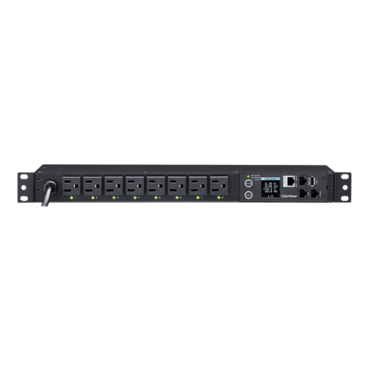

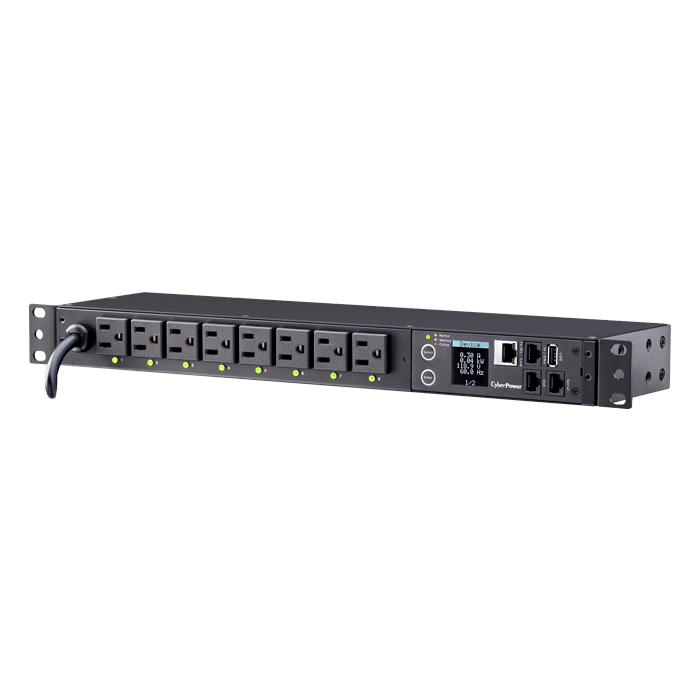

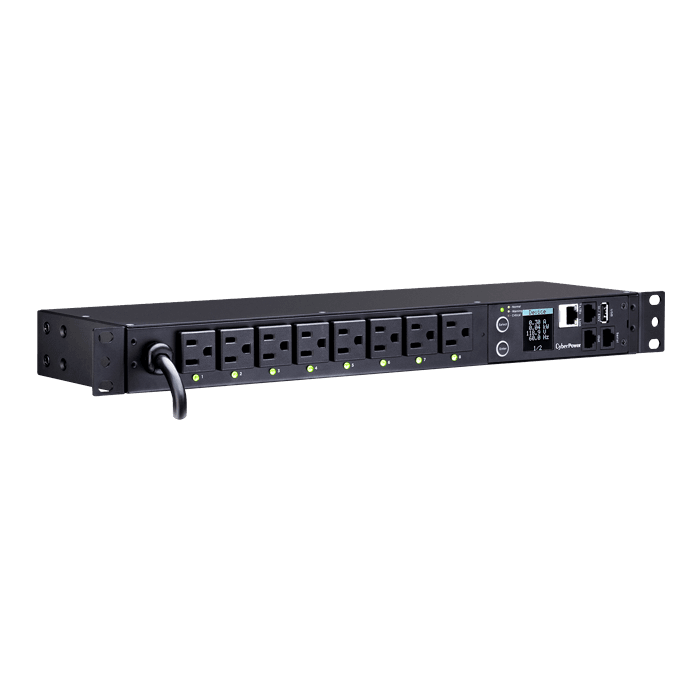

The CyberPower PDU41001, an 8-outlet (front), 1U rackmount switched power distribution unit (PDU), provides 120V 15A output. It distributes power to 8 NEMA 5-15R receptacles from a single NEMA 5-15P plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally by using the LCD controls.
Outlets can be turned on, turned off, or recycled on demand or at programmed times to address a number of needs including remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads. The PDU41001 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.
| General | |
|---|---|
| Type | Switched |
| Phase | Single Phase |
| Input | |
| Voltage | 100-120Vac |
| Frequency | 50Hz/60Hz |
| Maximum Input Current | 15A (Derated to 12A) |
| Plug Type | NEMA 5-15P |
| Plug Style | Straight |
| Cord Length (ft.) | 12 |
| Cord Length (m) | 3.7 |
| Output | |
| Nominal Output Voltage | 100-120Vac |
| Overload Protection (Each Bank) | None |
| Outlets – # of Banks | 1 |
| Outlets – Total | 8 |
| Outlets – Front | 8 |
| Outlets – Rear | 0 |
| Outlet Type | NEMA 5-15R |
| Meter Readout | Power Control Display |
| LED Indicators | Tx/Rx, LINK, Normal/Warning/Critial Status |
| Management & Communications | |
| Outlet switching | Yes |
| SNMP / HTTP Remote Monitoring | IPv4
TCP/IP UDP SNMPv1 HTTP NTP DNS, Telnet DHCP SMTP FTP IPv6 SNMPv3 HTTPs SSH SSL TLS LDAP(S) RADIUS Syslog Windows AD |
| Network Connection | RJ45 (Ethernet)
RJ45 (COM Port) |
| Environmental Sensor | Optional, via RJ45 |
| Modular Expandability (Cascading) | Yes, up to 4 via RJ45 |
| Updateable firmware | Yes, via USB or Ethernet |
| Multifunction LCD Screen | Voltage
Frequency Load Current HW/FW Version Network information |
| Physical | |
| Standard Form Factor | 1U Rackmount |
| Form Factors Supported | Vertical or horizontal mounting supported in wallmount applications,
racks and a variety of other surface types |
| Style | Horizontal Rackmount
Wallmount |
| Enclosure Construction | Steel |
| Cord Retention Tray/Cord Organizers | Yes |
| External Site Ground Pin | Yes |
| Adjustable Mounting Brackets | 1 set |
| Physical Size | |
| Dimensions (WxHxD) (in.) | 17.05 x 1.75 x 4.41 |
| Weight (lbs.) | 5.7 |
| Installed Rack Height | 1U |
| Shipping Dimensions | |
| Dimensions (WxHxD) (in.) | 19.7 x 2.6 x 9.8 |
| Weight (lbs.) | 8.2 |
| Environmental | |
| Operating Temperature | 32 °F to 131 °F (0 °C to 55 °C) |
| Operating Humidity | 0% – 95% non-condensing |
| Maximum Operating Elevation | 11,483 ft (3,500 m) |
| Certifications | |
| Safety | UL 60950, FCC Class A |
| Environmental | RoHS Compliant |
| Warranty | |
| Product Warranty | 3 Years |
| Ext Warranty | WEXT5YR-PDU1B |
