PDU41002, 8 Outlets, 12-ft cord, Black, Power Distribution Unit
Quantity:
- SKU: 11535690
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: PDU41002
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$579.95
PDU41002, 8 Outlets, 12-ft cord, Black, Power Distribution Unit

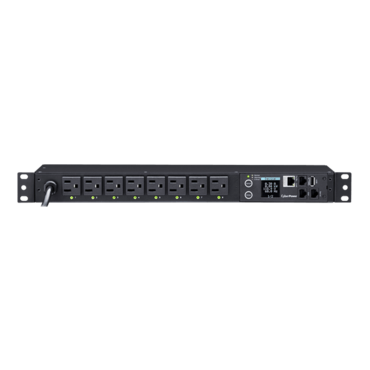

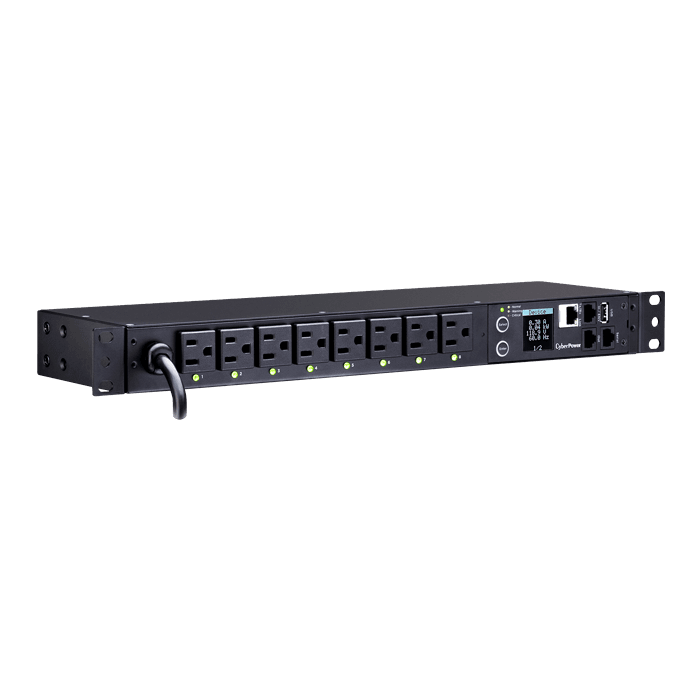

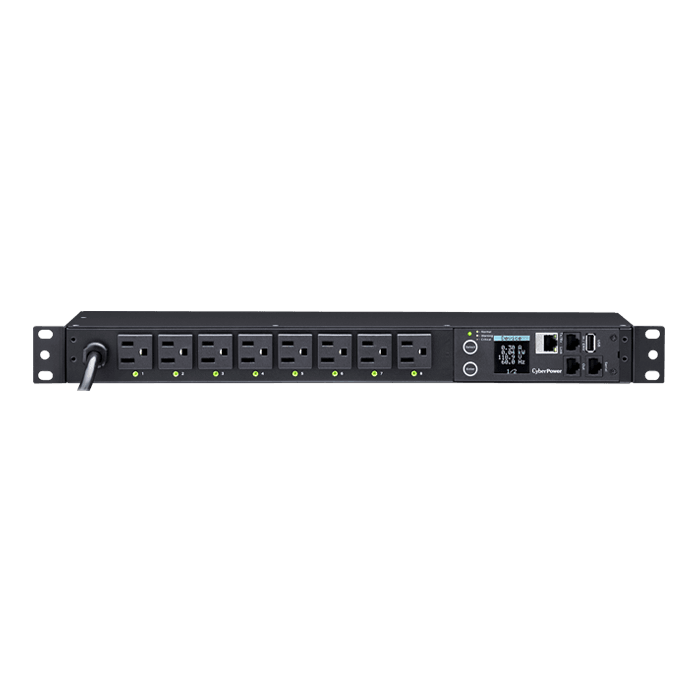

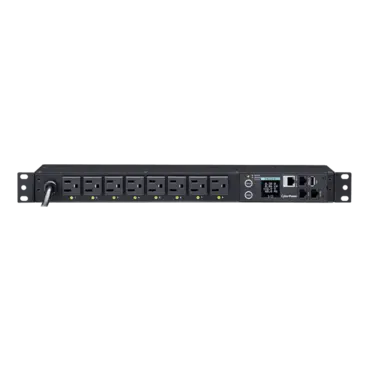

The CyberPower PDU41002, an 8-outlet (front), 1U rackmount switched power distribution unit (PDU), provides 120V 20A output. It distributes power to 8 NEMA 5-20R receptacles from a single NEMA 5-20 or L5-20 (with adaptor) plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally by using the LCD controls.
Outlets can be turned on, turned off, or recycled on demand or at programmed times to address a number of needs including remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads. The PDU41002 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.
-
Power Distribution
Delivers AC power to servers, equipment, and connected devices via a power distribution unit. -
Switch-Free Design
Safeguards against accidental power shutdown. -
Switchable Outlets
Provides local and remote control for individual and multiple outlets. Local control: turn on/turn off outlets and disable unused outlets. Remote control: restart outlets and devices, turn on/turn off, schedule power on/off sequencing, and disable unused outlets. -
CyberPower Management Console
Built into Switched PDUs, a CyberPower Management Console is a hardware interface. Users can remotely switch individual PDU outlets or circuits on and off, either immediately or on a schedule, in order to power cycle connected equipment. It monitors the incoming power and power draw from the PDU, sends notifications based on the power status, and logs events. -
Remote and Local Monitoring
The user is able to track PDU vitals both offsite and onsite. It also provides control to turn on/off individual outlets or circuits. -
Automatic Event Notifications
Provide immediate updates about power events via email, SMS text, or SNMP traps. -
Upgradeable Firmware
Downloadable improvements (firmware updates) to programs that run the PDU. -
Digital Display
Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information. -
Network-Grade Plugs and Outlets
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices. -
Long Input Power Cord
Reaches distant power sources, allowing the PDU to be placed where it’s needed. -
Cord Retention Tray
Secures power cords, keeping them organized and accessible. Helps cords stay plugged in. -
Configurable Mounting Brackets
Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount). -
Durable Metal Housing
Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product. -
Three-Year Limited Warranty
Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
| Input | |
| Cord Length | 12 ft (3.7 m) |
| Derated Input Current | 16 A |
| Input Frequency Range | 50 Hz – 60 Hz |
| Input Plug Type | NEMA L5-20P (5-20P Adapter) |
| Maximum Input Current | 20A |
| Phase | Single Phase |
| Plug Style | Straight |
| Output | |
| Meter Readout | Power Control Display |
| Nominal Output Voltage | 100 – 120 VAC |
| Outlet Type | 8 – NEMA 5-20R |
| Outlets – # of Banks | 1 |
| Outlets – Front | 8 |
| Outlets – Rear | 0 |
| Outlets – Total | 8 |
| Overload Protection | None |
| Overload Protection (Each Bank) | None |
| USB Charge Port | No |
| Management & Communications | |
| Environmental Sensor | Optional, via RJ45 |
| Hardware Connection Port |
RJ45 Universal (RJ45) |
| LCD | Multifunction LCD |
| LED Indicators |
Tx/Rx LINK Normal/Warning/Critical Status |
| Modular Expandability (Cascading) | Yes, via RJ45 |
| Outlet switching | Yes |
| SNMP / HTTP Remote Monitoring | IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD |
| Upgradeable firmware | Yes |
| Physical | |
| Adjustable Mounting Brackets | 1 set |
| Color | Black |
| Cord Retention Tray/Cord Organizers | Yes |
| External Site Ground Pin | Yes |
| Form Factors Supported |
Horizontal or Vertical Wallmount Racks Horizontal or Vertical Mount in a Variety of Other Surface Types |
| Material of Construction | Metal |
| Rack Height | 1U |
| Style |
Horizontal Rackmount Wallmount |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 43.31 x 4.45 x 11.2 (cm) |
| Physical Dimensions – (WxHxD) (in) | 17.05 x 1.75 x 4.41 (in) |
| Physical Dimensions – (WxHxD) (mm) | 433 x 44 x 112 (mm) |
| Physical Weight (kg) | 3.31 |
| Physical Weight (lb) | 7.3 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 4.88 |
| Shipping – Weight (lb) | 10.75 |
| Shipping Dimensions – (WxHxD) (cm) | 49.53 x 6.68 x 25.1 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 19.5 x 2.63 x 9.88 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 495.3 x 66.8 x 250.95 (mm) |
| Environmental | |
| Operating Elevation | 0 – 11483 ft (0 – 3500 m) |
| Operating Relative Humidity | 0 – 95 % (non-condensing) |
| Operating Temperature | 32 – 140 °F (0 – 60 °C) |
| Storage Elevation | 0 – 49213 ft (0 – 14999 m) |
| Storage Temperature | 5 – 149 °F (-15 – 65 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | UL62368 |
| Warranty | |
| Extended Warranty Option | WEXT5YR-PDU1B |
| Product Warranty | 3 Year Limited Warranty |
