PEXUSB312A1C1H, 2 x USB 3.2, 1 x USB Type-C, 1 x USB 3.2 19-pin Connector to PCI Express 2.0 x4 Add-On Card
Quantity:
- SKU: 14521272
- Manufacturer: STARTECH.COM
- MPN: PEXUSB312A1C1H
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$66.69
PEXUSB312A1C1H, 2 x USB 3.2, 1 x USB Type-C, 1 x USB 3.2 19-pin Connector to PCI Express 2.0 x4 Add-On Card

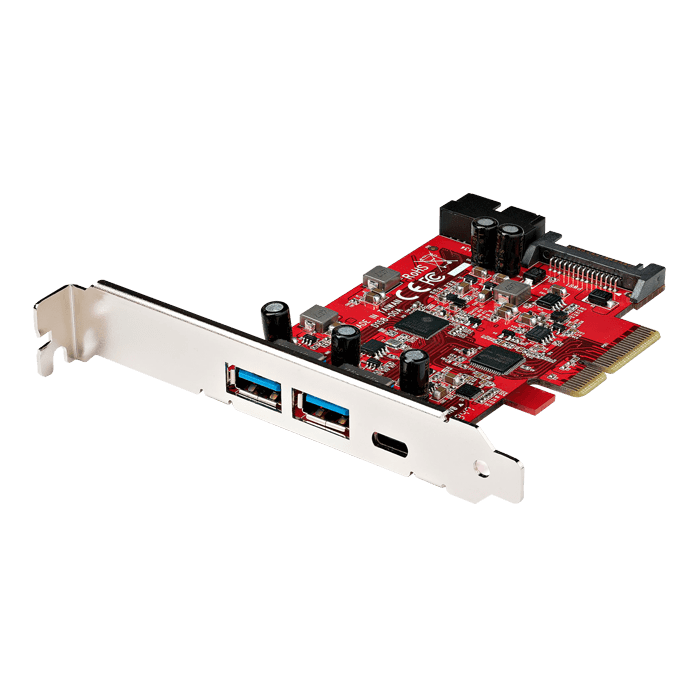

This 5-port USB 3.2 Gen 2 (10Gbps) combo card makes it easy to add to the performance and connectivity of your computer. The USB 3.2 card offers a USB Type-C™ port (10Gbps), two traditional USB Type-A ports (10Gbps), and a motherboard header (USB 5Gbps). By offering a range of USB port types, you can easily connect a variety of modern and legacy USB devices, both inside and outside your computer. Because the card offers a 10Gbps USB ports, you can save time and avoid the performance bottlenecks that are often associated with other connectivity technologies. USB 3.2 Gen 2 (USB 10Gbps) is also known as USB 3.1 (10Gbps). USB 3.2 Gen 1 (5Gbps) is also known as USB 3.0 (5Gbps).
- HIGH PERFORMANCE: 5-Port USB PCIe card with ASMedia 3142 IC; 10Gbps Hub w/ 3 External Ports (2x USB-A & 1x USB-C) & two internal ports USB 5Gbps (1x Internal IDC header); Supports up to USB 3.2 Gen 2; Upgraded version to our popular card PEXUSB312EIC
- TRANSFER SPEEDS UP TO 10Gbps: USB-A & USB-C PCIe card adapter supports Multiple INs maintaining max bandwidth with mixed speed devices and UASP optimizing USB performance with external storage devices like SSDs, HDDs, NVMe drives; Works w/ USB 3.2 Gen 2/3.0/2.0
- OPTIONAL POWER: USB PCIe expansion card with SATA power supplies supplemental power to the USB ports (when motherboard power is insufficient) providing up to 5V 3A/15W via the USB Type-C port & 5V 0.9A/4.5W via each USB port
- COMPATIBILITY: USB C add-on card installs in full or low-profile PCIe 3.0 (x4 slot) desktop/server (full-profile bracket installed, low profile bracket incl.); lower performance with PCI-e 2.0; Windows/Linux/macOS auto driver install (Windows 8 & up)
- STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; This USB-A & USB-C combo PCI Express Host Controller card is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
| Warranty | 2 Years |
| Connector Type(s) | 1 - PCI Express x4 |
| Internal Ports |
1 - IDC (20 pin, USB 3.0, Motherboard Header) 1 - SATA Power (15 pin) |
| External Ports |

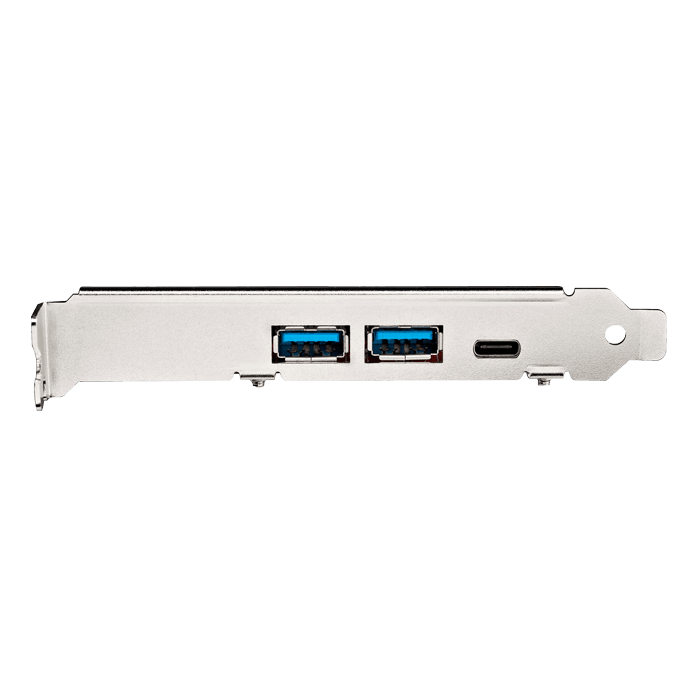

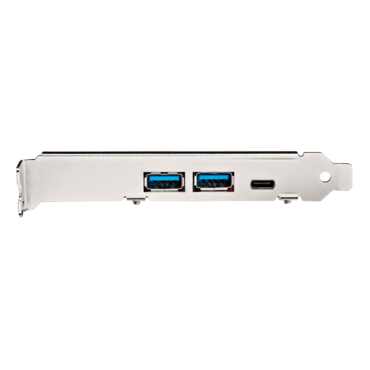

2 - USB 3.2 Type-A (9 pin, Gen 2, 10Gbps) 1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps) |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -20°C to 80°C (-4°F to 176°F) |
| Humidity | 15~90% RH (Non-condensing) |
| Ports | 5 |
| Interface | PCI Express |
| Bus Type |
USB 3.2 Gen 2 10Gbps USB 3.2 Gen 1 (5 Gbps) |
| Card Type | Standard Profile (LP bracket incl.) |
| Port Style | Integrated on Card |
| Industry Standards |
PCI Express Base Specification Rev. 3.0 USB 3.2 Specifications UASP (USB Attached SCSI Protocol) Rev. 1.0 |
| Chipset ID |
ASMedia - ASM3142 Genesys Logic - GL3590 |
| Shipping (Package) Weight | 4.8 oz [136.0 g] |
| Package Length | 6.9 in [17.5 cm] |
| Package Height | 1.2 in [3.0 cm] |
| Package Width | 5.5 in [14.0 cm] |
| Package Quantity | 1 |
| Total USB Power Output |
USB-C Power Output - 15W USB-A Power Output - 4.5W IDC Power Output - 4.5W |
| Maximum Data Transfer Rate | 10Gbps |
| Type and Rate |
USB 3.2 Gen 2 - 10 Gbit/s USB 3.0 - 5 Gbit/s |
| UASP Support | Yes |
| MTBF | 1,677,495 Hours |
| Color | Red |
| Weight of Product | 2.1 oz [60.0 g] |
| Product Height | 4.7 in [12.0 cm] |
| Product Length | 4.5 in [11.5 cm] |
| Product Width | 0.7 in [1.9 cm] |
| OS Compatibility |
Windows® 7, 8, 8.1, 10, 11 Windows Server® 2008 R2, 2012 R2, 2016, 2019, 2022 Linux® 3.5 and up - LTS Versions only macOS Catalina (10.15) macOS Mojave (10.14) macOS High Sierra (10.13) macOS Big Sur (11.0) macOS Monterey (12.0) macOS Ventura (13.0) |
| Included in Package |
1 - USB 3.2 (10 Gbps) PCIe Card 1 - Full-Profile Bracket (Installed) 1 - Low-Profile Bracket 1 - Quick-Start Guide |
