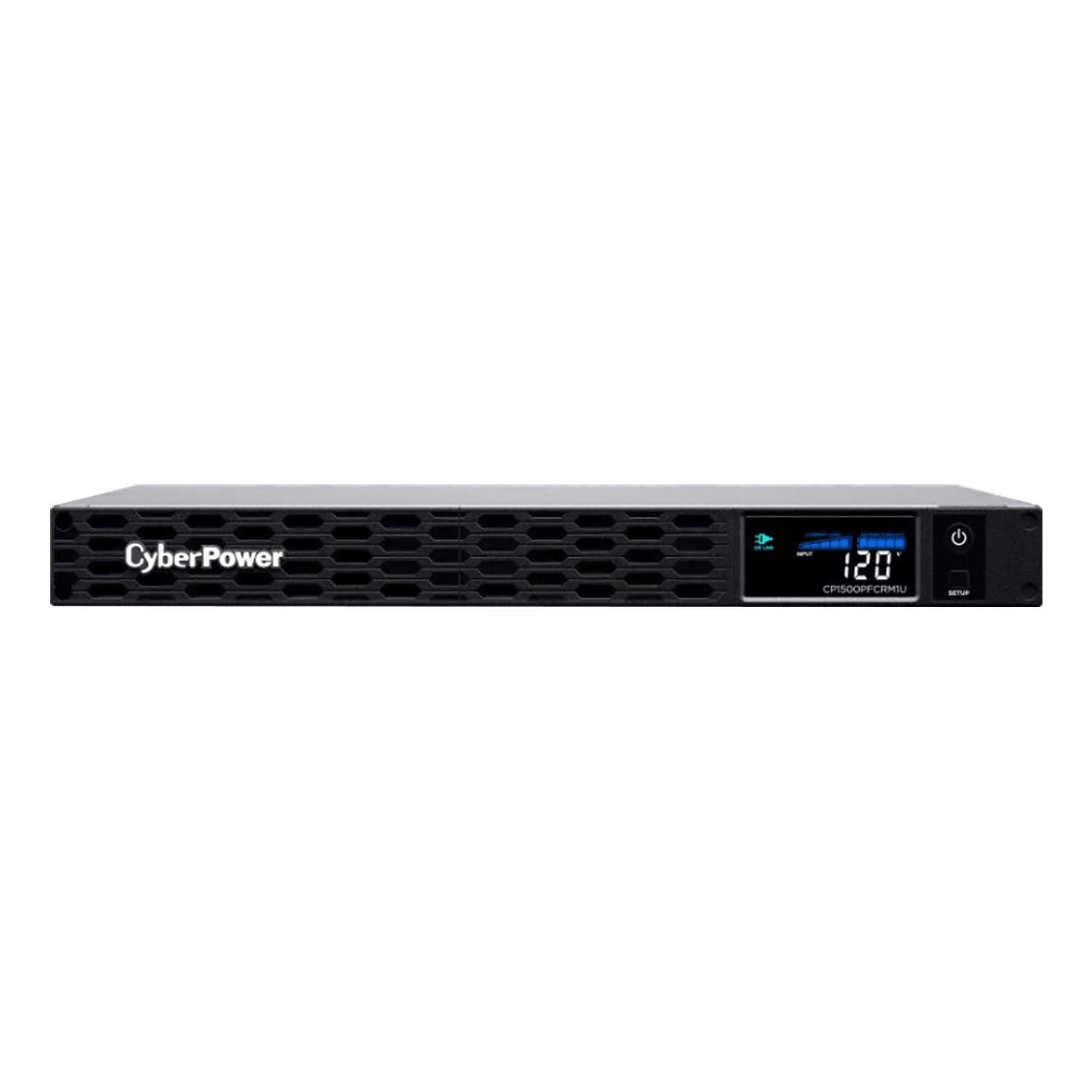

PFC Sinewave CP1500PFCRM1U, LCD, 1500 VA/900 W, Sine Wave, 1U Rackmount UPS
Quantity:
- SKU: 17901040
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: CP1500PFCRM1U
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$647.39
| General | |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Energy Star Certified | Yes |
| UPS Topology | Line Interactive |
| Battery | |
| Battery Quantity | 4 |
| Battery Size | 6 V / 9 Ah |
| Battery Type | Sealed Lead-Acid Battery |
| Hot Swappable | Yes |
| Replacement Battery Cartridge | RB0690X4 |
| Replacement Battery Cartridge Quantity | 1 |
| Runtime at Full Load | 1.6 min |
| Runtime at Half Load | 10 min |
| Typical Recharge Time | 8 Hours |
| User Replaceable Battery | Yes |
| Input | |
| Adjustable Voltage Range | 97 – 144 VAC |
| Circuit Breaker | 15 A |
| Cord Length | 10 ft (3.0 m) |
| Input Frequency Range | 57 Hz – 63 Hz |
| Input Plug Type | NEMA 5-15P |
| Input Voltage Range | 88 VAC – 144 VAC |
| Nominal Input Voltage | 120 VAC |
| Plug Style | Right Angle – 45° Offset |
| Output | |
| Automatic Voltage Regulation | Single Boost |
| On AC WaveForm | Sine Wave |
| On Battery Frequency | 60 Hz ± 1% |
| On Battery Voltage | 120 VAC ± 10% |
| On Battery Waveform | Sine Wave |
| Outlet Type | 6 – NEMA 5-15R |
| Outlets – Battery & Surge Protected | 4 |
| Outlets – Surge-Only Protected | 2 |
| Outlets – Total | 6 |
| Output Power Factor | 0.6 |
| Overload Protection |
Internal Circuitry Limiting Circuit Breaker Protected |
| Typical Transfer Time | 8 ms |
| USB Charge Port | No |
| VA | 1500 VA |
| Watts | 900 W |
| Surge Protection & Filtering | |
| EMI/RFI Filtration | Yes |
| Network Protection RJ45 | 1-in / 1-Out (10/100/1000) |
| Surge Suppression (Joules) | 1150 J |
| Management & Communications | |
| Audible Alarms |
Battery Mode Low Battery Overload Fault |
| HID Compliant USB Port | Yes |
| LCD | Multifunction LCD |
| LED Indicators |
Power On Wiring Fault |
| Management Cable | USB Cable |
| SNMP / HTTP Remote Monitoring | Yes – with optional RMCARD205 |
| Serial Port | 1 Dry Contact |
| Software (Free Download) | PowerPanel® Business |
| Physical | |
| Color | Black |
| Form Factor | Rackmount |
| Material of Construction | Metal |
| Rack Height | 1U |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 43.31 x 4.39 x 38.86 (cm) |
| Physical Dimensions – (WxHxD) (in) | 17.05 x 1.73 x 15.3 (in) |
| Physical Dimensions – (WxHxD) (mm) | 433 x 44 x 389 (mm) |
| Physical Weight (kg) | 15.42 |
| Physical Weight (lb) | 33.99 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 17.02 |
| Shipping – Weight (lb) | 37.52 |
| Shipping Dimensions – (WxHxD) (cm) | 53.01 x 15.8 x 49.4 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 20.87 x 6.22 x 19.45 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 530.1 x 157.99 x 494.03 (mm) |
| Environmental | |
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Relative Humidity | 0 – 95 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Storage Elevation | 0 – 50000 ft (0 – 15239 m) |
| Storage Relative Humidity | 0 – 95% (non-condensing) |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety |
UL1778 CSA C22.2 No. 107.3 FCC Class B DOE |
| Warranty | |
| Connected Equipment Guarantee | Lifetime |
| Extended Warranty Option | WEXT5YR-U1B |
| Product Warranty | 3 Year Limited Warranty |
