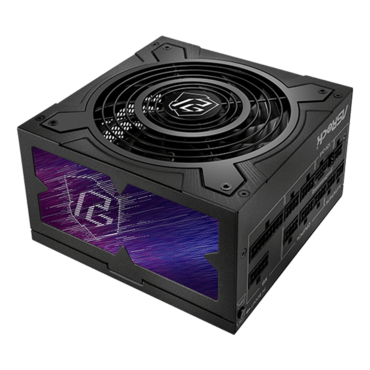

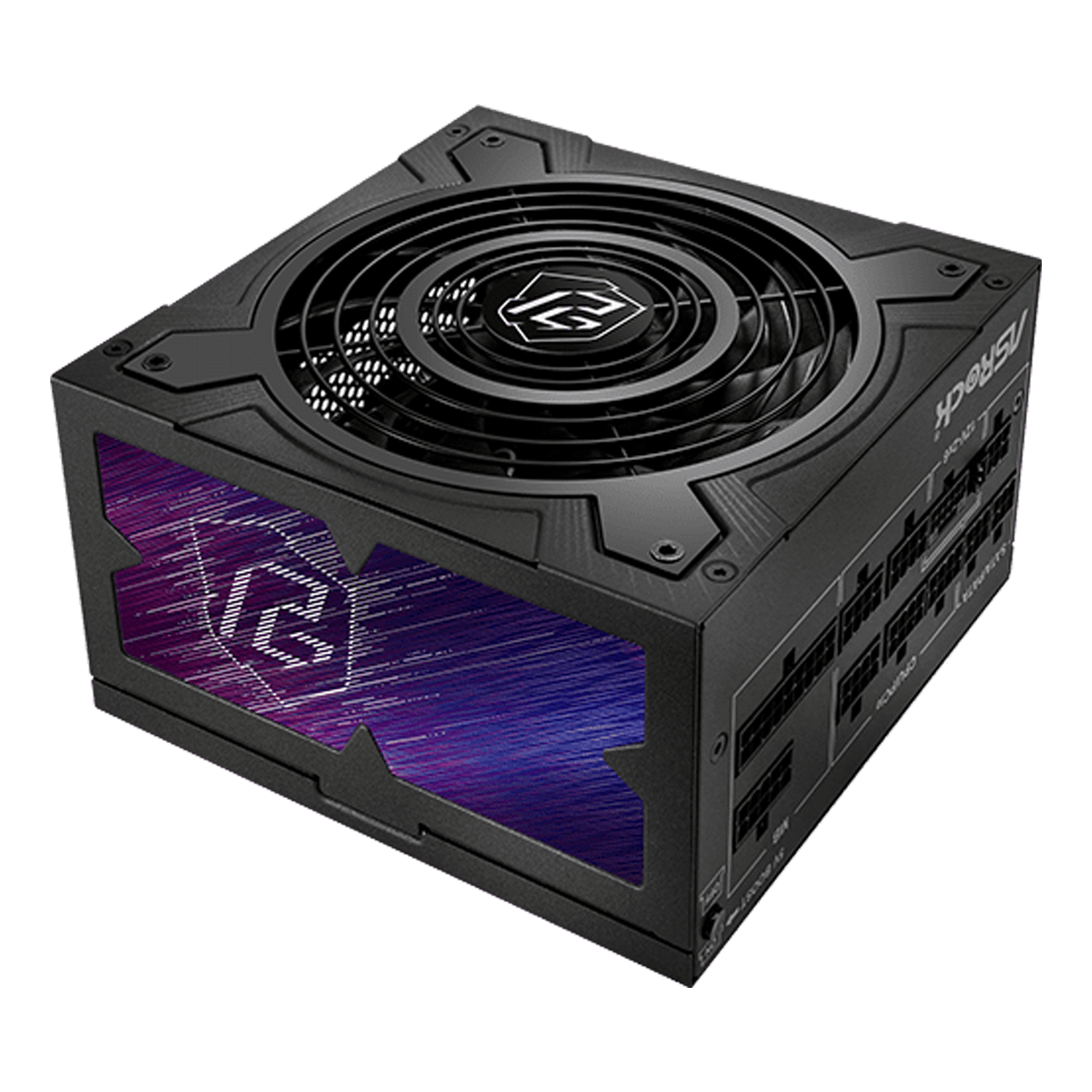

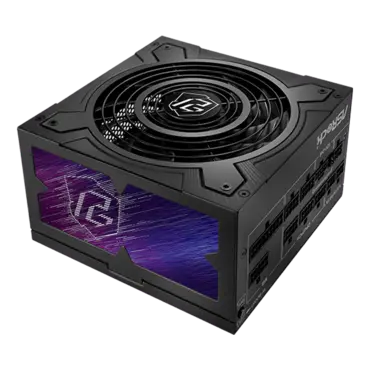

PG-1000G, 80 PLUS Gold 1000W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 18547183
- Manufacturer: ASROCK
- MPN: PG-1000G
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$213.60
PG-1000G, 80 PLUS Gold 1000W, Fully Modular, ATX Power Supply
POWERFUL FUTURE BE READY FOR ATX 3.1 & PCIe 5.1
The ASRock Phantom Gaming series power supply supports both current and future standards, fully compliant with ATX12V V3.1 and PCIe Gen 5.1. Ideal for both current systems and future builds, this power supplies can handle up to 220% power excursion and respond swiftly to power spikes, ensuring reliable, safe power for your components.
- 80 PLUS® GOLD Certified
- Cybenetics Platinum and LAMBDA A Certified
- ATX3.1 & PCIe5.1 Ready

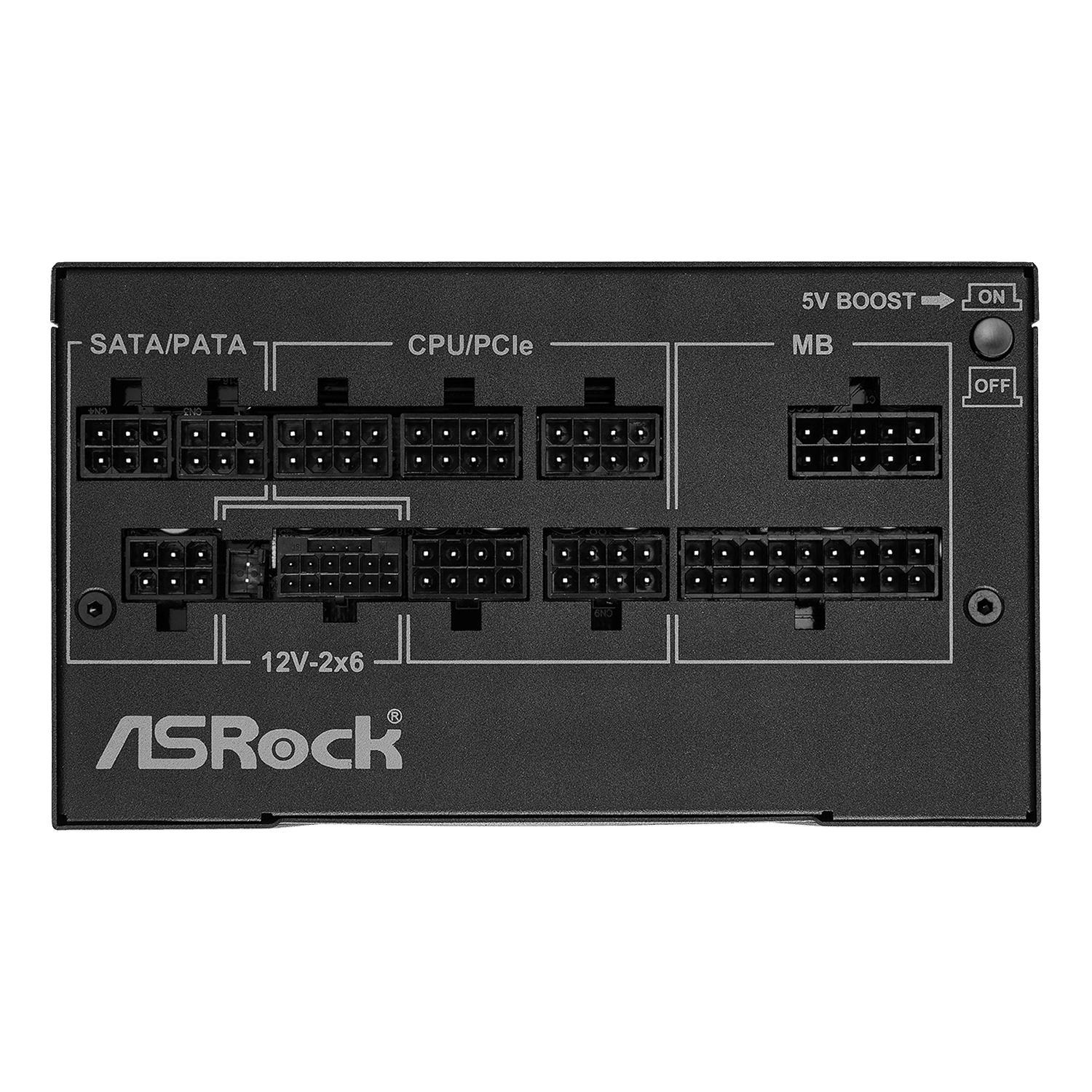

- Fully Modular Cable Design
- Native 12V-2x6 Connector Dual Color Design with TempGuard
- 100% Highly Reliable Japanese Capacitors

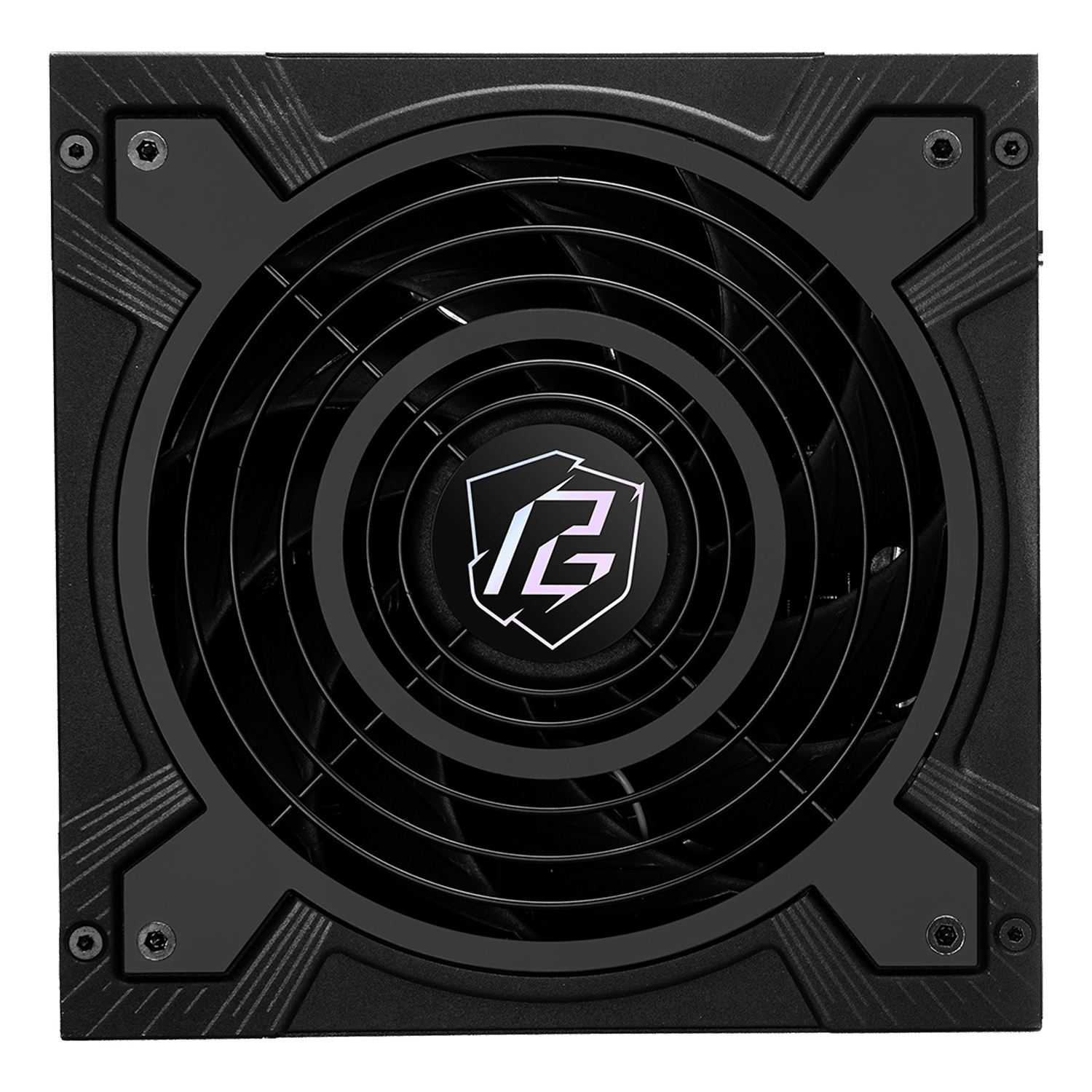

- 135mm Striped Axial FDB Fan
- iCool Intelligent Fan Control Mode
- 5V BOOST Mode
- Remarkable 10-Year Warranty
| 80 Plus Efficiency | GOLD |
| Cybenetics (ETA/LAMBDA) | Platinum / A |
| ATX 12V Version | ATX 3.1 |
| ATX | ATX 3.1 |
| Continuous 12V output | 83.3A |
| Warranty (Years) | 10 |
| Dimensions(L x W x H) | 150mm x 150mm x 86mm |
| Fan | 135mm Striped Axial FDB Fan |
| iCOOL MODE | Yes (Switch) |
| Protections | OCP, SCP, OVP, UVP, OTP, OPP |
| Capacitors | All Japanese |
| 5V BOOST | Yes (Switch) |
| PCIe 5.1 Cable TempGuard | Yes |
| Total Power Excursion | 220% |
| MTBF (Hours)@25°C | 100,000 |
| Cable Type | 24pin & 12+4pin: Sleeved Others: Individual Braided Pattern |
| Motherboard cable (24pin) | 1 |
| EPS 12V CPU connectors (4+4pin) | 2 |
| PCIe5.1 connectors(12+4pin) Dual Color | 1 |
| PCIe connectors (6+2pin) | 5 |
| 4-pin Peripheral connectors | 3 |
| SATA 5-pin connectors | 9 |
