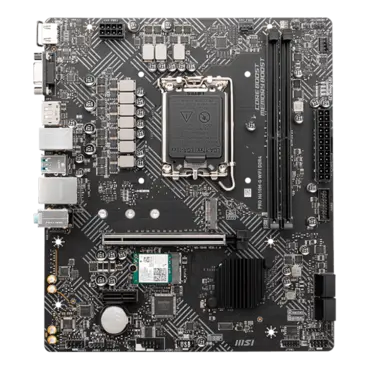

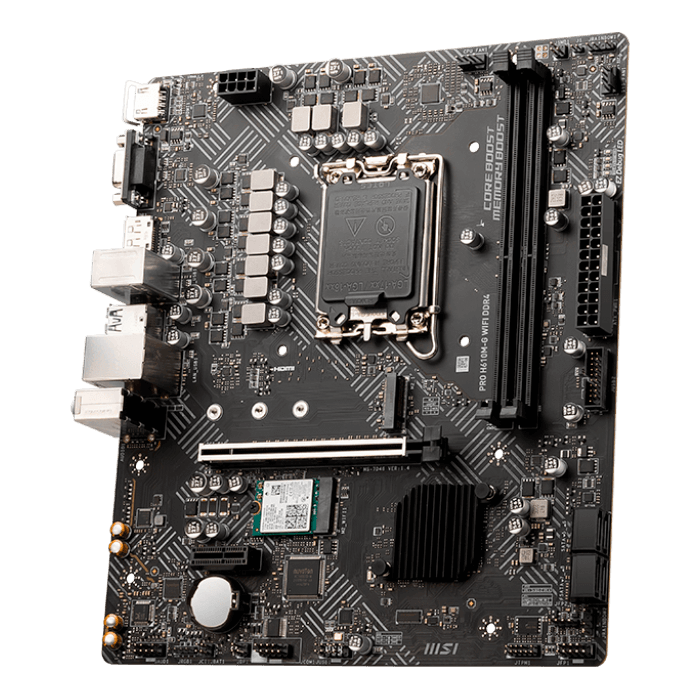

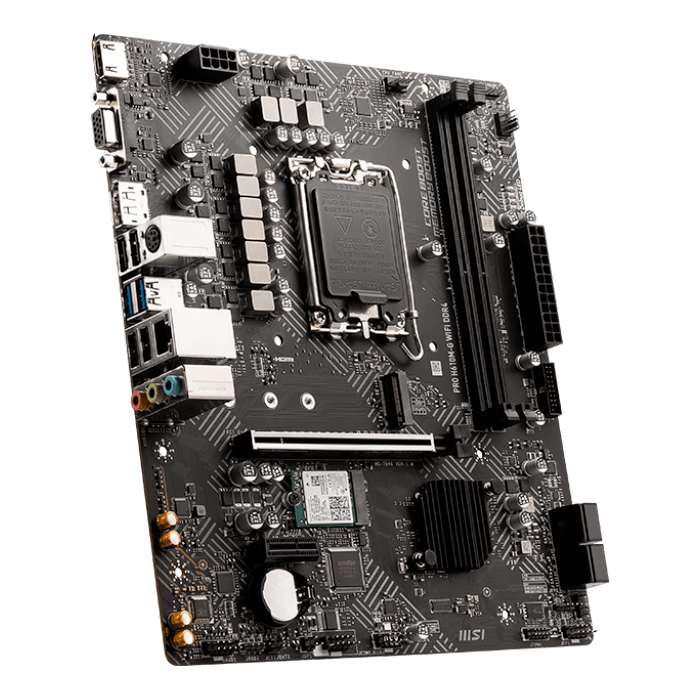

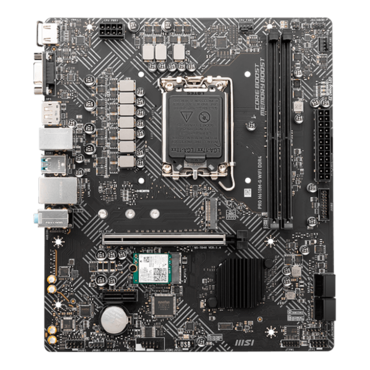

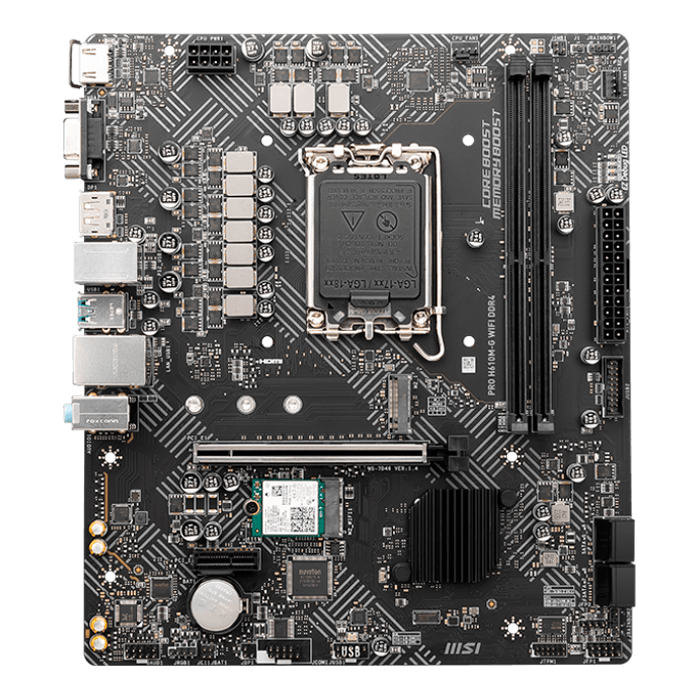

PRO H610M-G WIFI DDR4, Intel® H610 Chipset, LGA 1700, microATX Motherboard
PRO H610M-G WIFI DDR4, Intel® H610 Chipset, LGA 1700, microATX Motherboard
PRO H610M-G WIFI DDR4, Intel® H610 Chipset, LGA 1700, microATX Motherboard
PRO H610M-G WIFI DDR4, Intel® H610 Chipset, LGA 1700, microATX Motherboard

PRO H610M-G WIFI DDR4, Intel® H610 Chipset, LGA 1700, microATX Motherboard

Quantity:
  • SKU: 15612868
  • Manufacturer: MSI
  • MPN: PRO H610M-G WIFI DDR4
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$89.81
Quantity:
PRO H610M-G WIFI DDR4, Intel® H610 Chipset, LGA 1700, microATX Motherboard

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

  • Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR4 Memory, up to 3200(MAX) MHz
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Experience: PCIe 4.0
  • Audio Boost: Reward your ears with studio grade sound quality
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
  • Wireless and Bluetooth: Intel® Dual Band Wireless-AC 3168, Bluetooth 4.2
PROCESSOR

Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1

Processor socket LGA1700

  1.  Please go to www.msi.com to get the newest support status as new processors are released.

See supported processors
CHIPSET

Intel® H610 Chipset
MEMORY
  • 2x DDR4 memory slots, support up to 64GB1
  • Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  1.  Please refer to www.msi.com for more information on compatible memory.

See supported memory
EXPANSION SLOT
  • 1x PCIe x16 slot (From CPU)
    • Supports up to PCIe 4.0 x16
  • 1x PCIe x1 slot
    • Supports PCIe 3.0 x1
WIRELESS LAN & BLUETOOTH®

Intel® Dual Band Wireless-AC 3168

  • Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed.
  • Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2
ONBOARD GRAPHICS
  • 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 2
  • 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz1
  • x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz1 2
  1.  Available only on processors featuring integrated graphics.
  2.  Graphics specifications may vary depending on the CPU installed.
SATA PORTS
  • 4x SATA 6Gb/s ports1
  1.  * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
M.2 SSD SLOT
  • 1x M.2 slot (Key M, from chipset)1
    • Supports up to PCIe 3.0 x4
    • Supports up to SATA 6Gb/s
    • Supports 2242/ 2260/ 2280 storage devices
    • Supports Intel® Smart Response Technology for Intel Core™ processors
  1.  SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot
USB

Intel® H610 Chipset

  • 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
  • 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
AUDIO

Realtek® ALC897 Codec

  • 7.1-Channel High Definition Audio
LAN
  • 1x Intel® I219V 1Gbps LAN controller
POWER CONNECTORS
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
FAN CONNECTORS
  • 1x 4-pin CPU fan connector
  • 1x 4-pin system fan connector
SYSTEM CONNECTORS
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x TPM module connector
JUMPERS
  • 1x Clear CMOS jumper
LED FEATURES
  • 1x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 4x EZ Debug LED

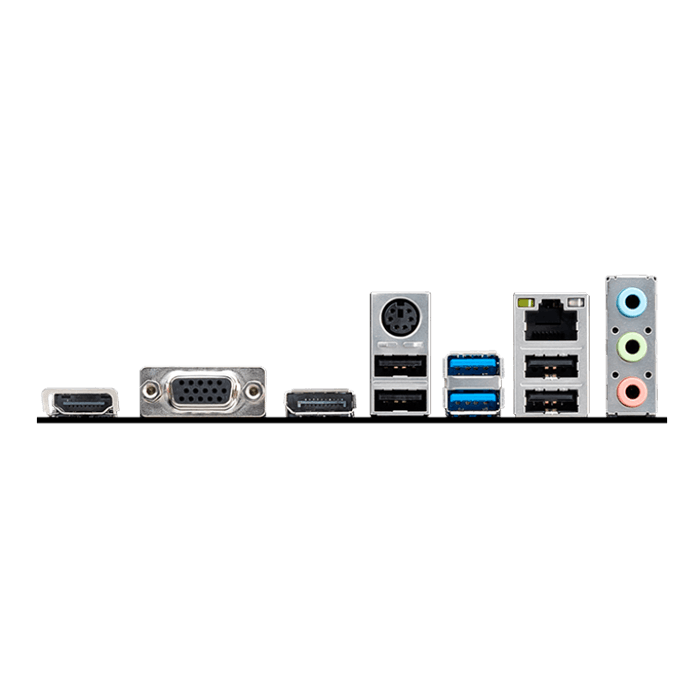

BACK PANEL PORTS
  • 1x HDMI
  • 1x VGA
  • 1x DisplayPort
  • 1x Keyboard/Mouse
  • 2x USB 3.2 Gen 1 5Gbps Type-A
  • 1x LAN port
  • 3x Audio connector
  • 4x USB 2.0
DIMENSIONS
  • mATX Form Factor
  • 9.61 x 8.31 in. (24.4 cm x 21.1 cm)
OPERATING SYSTEM

Support for Windows® 11 64-bit
