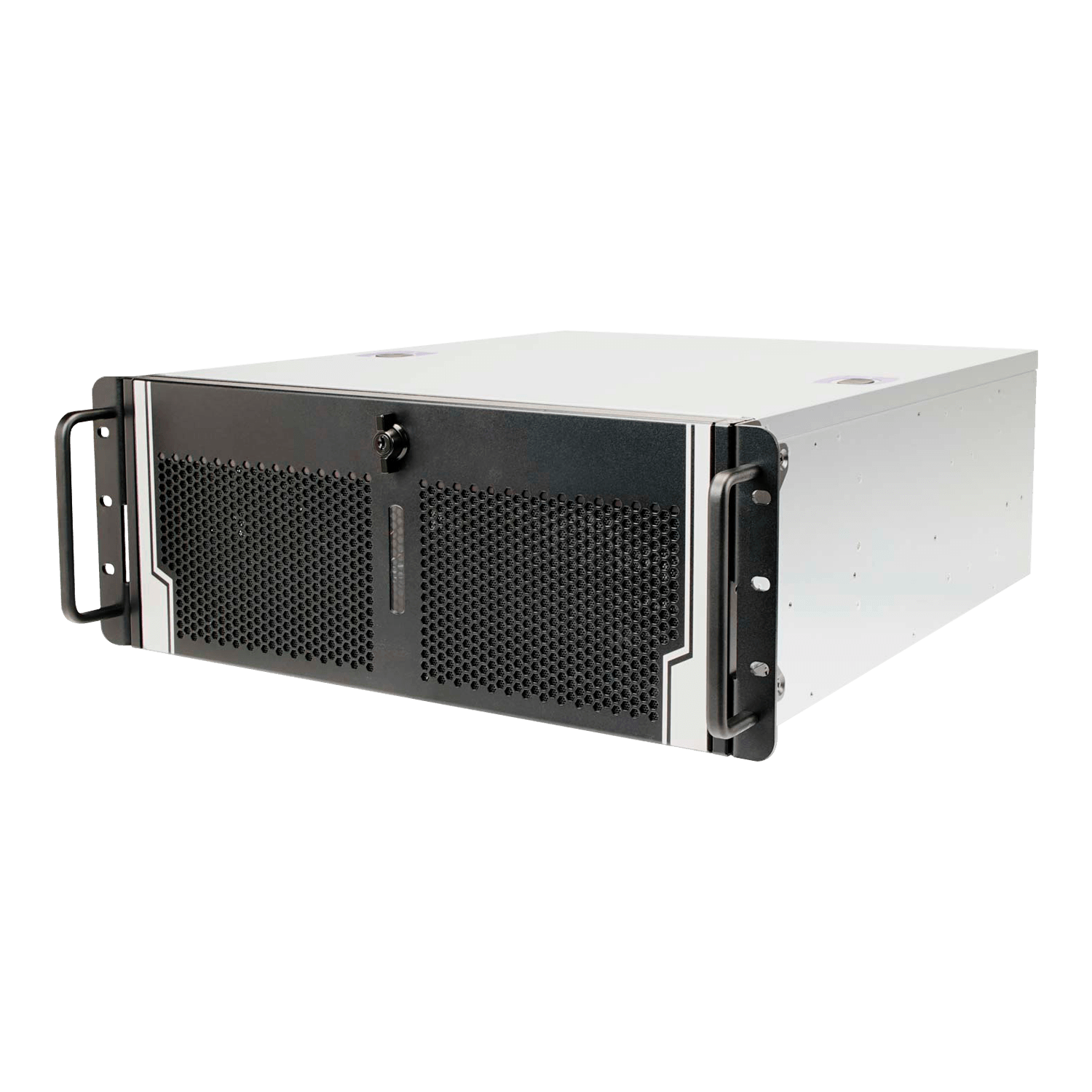

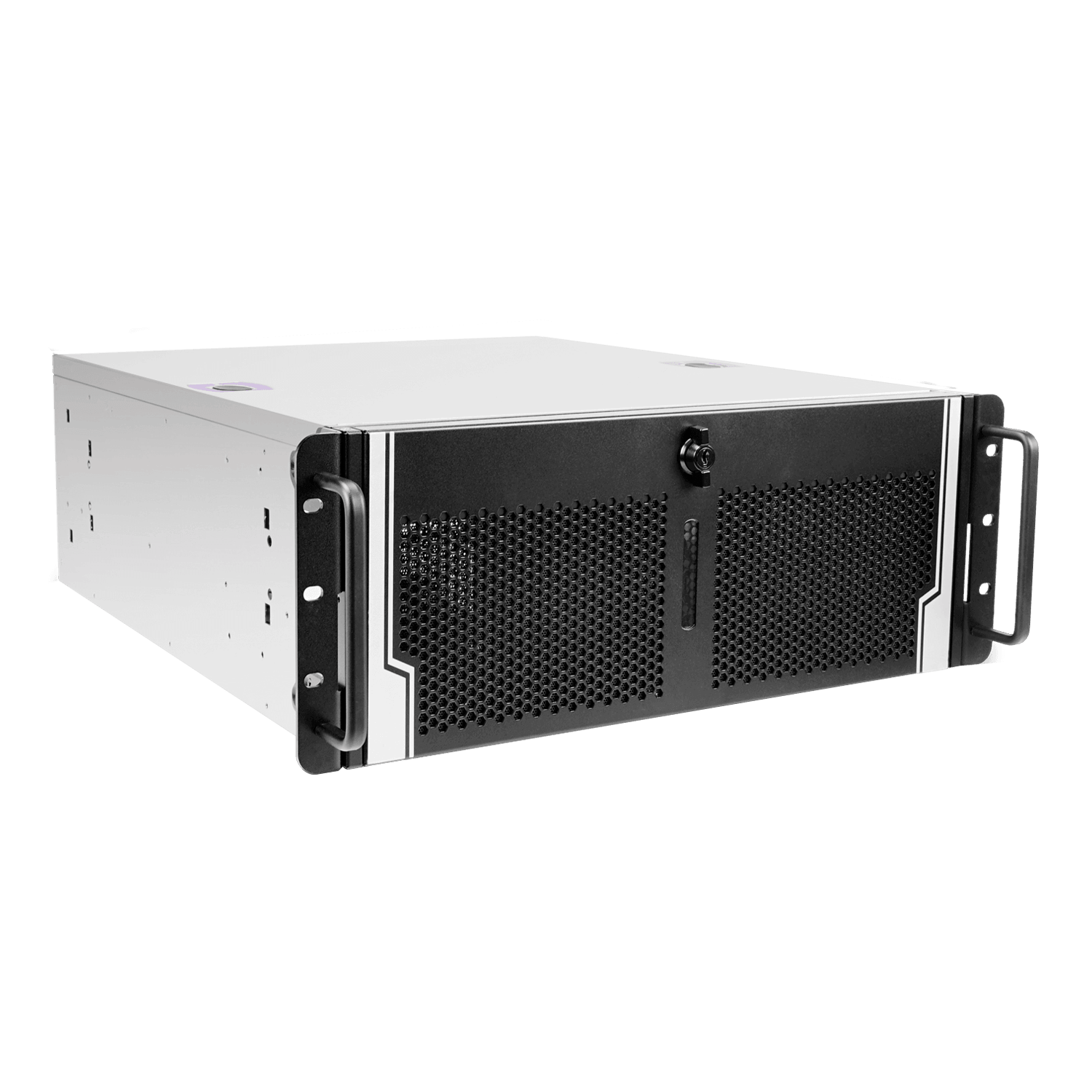

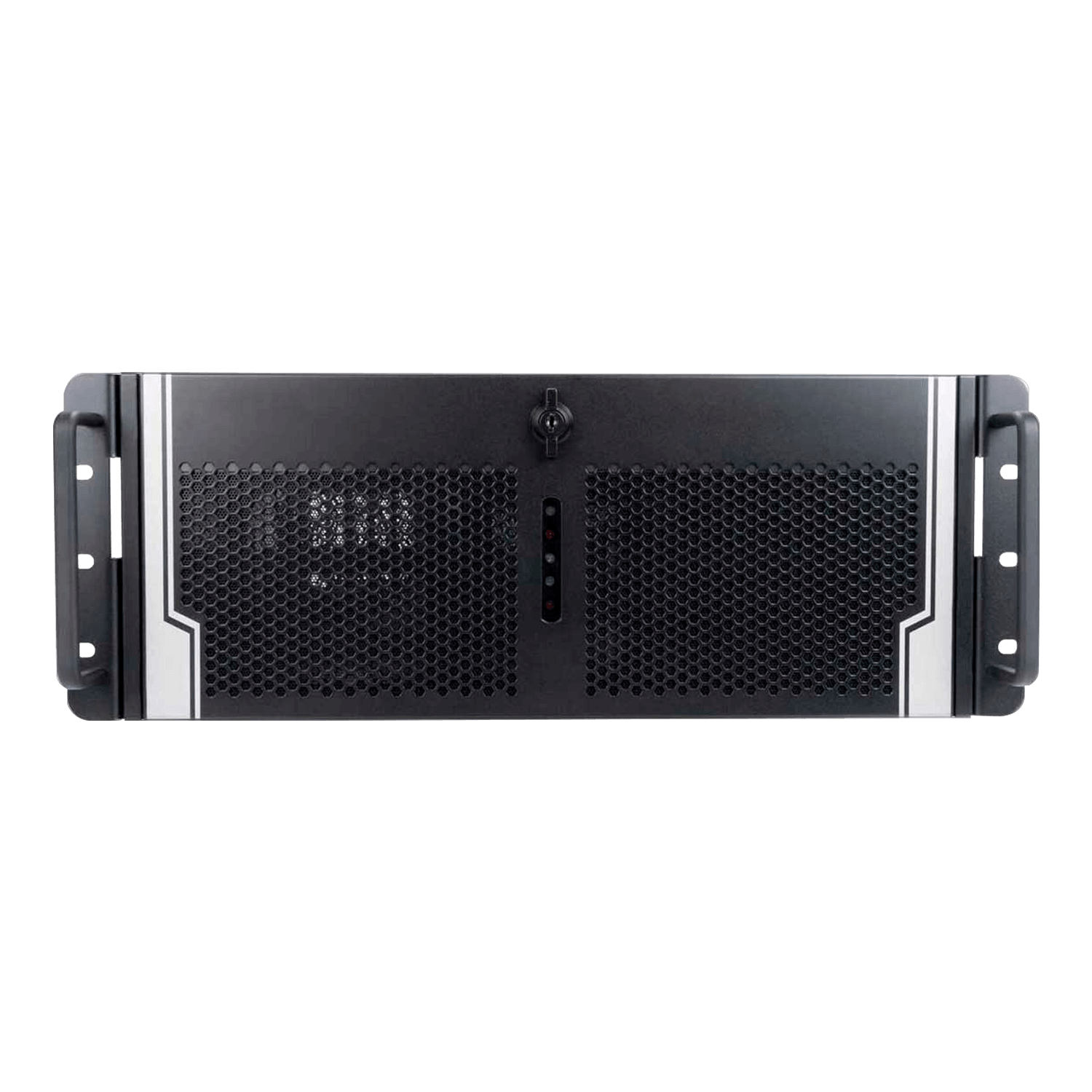

R400N-8P.3F.CR800, 3x 5.25" + 1x 3.5" External Bays, 3x 2.5" Internal Bays, 800W PSU, CEB, Black/Grey, 4U Chassis - TAA Compliant
Quantity:
- SKU: 18622442
- Manufacturer: InWin
- MPN: R400N-8P.3F.CR800
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$761.79
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5") |
| Drive Bay |
• External: 5.25" x 3, 3.5" x 1 • Internal: 3.5" x 3, or 3.5" x 2 & 2.5" x 1 |
| Power Supply |
Supports: • PS2 single PSU • 550W/800W/1200W/1600W 1+1 CRPS 80 Plus Platinum |
| Indicators | Power status, HDD, LAN activity LEDs |
| Front Control Panel | Power switch, system reset, USB 2.0 x 2 |
| Chassis Security | Intrusion switch (optional) |
| Cooling Fans |
• 120 x 25mm PWM front fan x 1, 3500RPM • 80 x 25mm PWM rear fan x 2 (optional), 4200RPM • 80 x 25mm PWM rear fan x 2 (optional), 4500RPM |
| Expansion Slot | Full height PCIe slots x 8 |
| Material |
• Material: SGCC • Thickness: 1.2mm |
| Rail Kit | Supports 28" tool-less & ball-bearing slide rails |
| Product Dimensions (DxWxH; Chassis Only) |
515x 430 x 174.8mm (20.3" x 16.9" x 6.9") |
| Package Dimensions (DxWxH) | 696 x 610 x 310mm |
| Weight (Chassis Only) |
• Net weight: 11.5kg • Gross weight: 14.7kg |
| Cubic Feet | 4.65 |
| Container Information |
Single packing with pallets: • 20': 144pcs • 40': 300pcs • 40' HQ: 350pcs |
|
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications. * The above image is for reference only. All hardware components and optional parts are not included. |
|
