RACKMUX® Rackmount SUN USB KVM Console Drawer 1RU, Trackball Mouse, 17" LCD, Numeric Keypad
VGA SUN USB KVM Drawer Mouse Numeric Keypad Rackmount 17 inch
17 inch VGA SUN USB KVM Drawer with Trackball Mouse & Numeric Keypad
17 inch Active Matrix LCD flat panel VGA monitor
Supports resolutions to 1152x900
17-key numeric keypad and trackball mouse
|
Rackmount SUN USB KVM Console Drawer 1RU

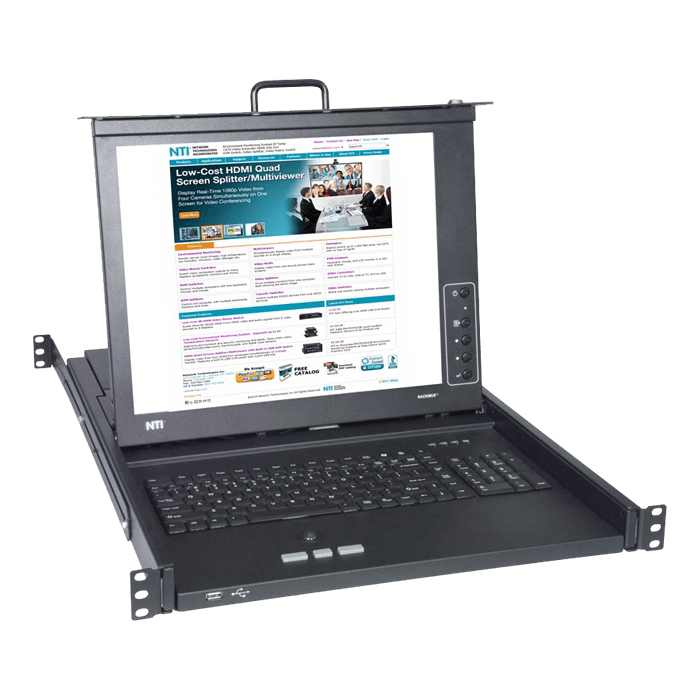

The RACKMUX® SUN USB KVM Drawer combines a rackmount LCD monitor, SUN USB keyboard and 3-button trackball mouse in a space-saving 1RU industrial strength drawer. It is available with a forward-folding 17" Active Matrix LCD flat panel VGA monitor.
Features & Applications:
- Forward-folding 17" Active Matrix LCD flat panel VGA monitor.
- Tilt LCD up and back to adjust to any comfortable viewing angle to 120°.
- Optional sunlight readable monitor available.
- Supports SUN-compatible 1152x900 resolution.
- Torque-friction hinges-monitor does not wobble, spring, or slam shut.
- Compact, heavy-duty tactile keyboard.
- Available with 17-key numeric keypad or large wrist-rest.
- Drawer locks into place when open to prevent it from sliding in and out of the rack.
- Available with optional mounting bracket for two-post style telco rack.
- Rugged steel construction with durable powder coat finish.
- LCD auto-shutoff in closed position.
- Internal cable arm provides proper cable management for sliding the drawer open and closed.
- Equipped with On Screen Display (OSD).
- Front panel security lock.
- Front panel USB port to connect an external USB device, such as a flash drive.
Specifications:
Host Interface
- Compatible with USB-enabled SUN, Windows, Linux, Apple, IBM, and HP computers.
- One female 15-pin HD and one female USB Type B connectors.
Monitor
- Forward-folding 17" Active Matrix LCD flat panel VGA monitor.
- 1280x1024 video resolution.
- Supports SUN-compatible 1152x900 resolution.
- Tilt: up to 120°
- Sunlight readable monitor available (RACKMUX-VS17-TS, RACKMUX-VS17-NTS)
- Frequency:
- RACKMUX-VS17-T, RACKMUX-VS17-NT:
- Horzontal: 31 to 80 KHz
- Vertical: 56 to 76 Hz.
- RACKMUX-VS17-TS, RACKMUX-VS17-NTS:
- Horzontal: 53 to 79 KHz
- Vertical: 50 to 75 Hz.
- Brightness:
- RACKMUX-VS17-T, RACKMUX-VS17-NT: 300 nits
- RACKMUX-VS17-TS, RACKMUX-VS17-NTS: 500 nits indoors, 1100 nits outdoors
- Contrast Ratio::
- RACKMUX-VS17-T, RACKMUX-VS17-NT: 500:1
- RACKMUX-VS17-TS, RACKMUX-VS17-NTS: 800:1
- Supports DDC1 and DDC2B protocols.
- OSD controls for brightness, contrast, phase, pitch, Horz- and Vert-center alignment, zoom and color adjustment.
Devices
- Keyboard available in multiple languages: English(US), English(UK), German, Italian, French, and Spanish.
- RACKMUX-VS17-T: 97-key (US) or 98-key (UK, German, Italian, French, Spanish), SUN-compatible keyboard with wrist-pad.
- RACKMUX-VS17-NT: 114-key (US) or 115-key (UK, German), SUN compatible keyboard with numeric keypad.
- Supports SUN keys including STOP, CUT, PASTE, COMPOSE, COPY, HELP, OPEN, UNDO, and PROPS.
- Three button trackball mouse.
- Front panel USB 1.1 port to connect external USB devices.
- Female USB Type A connector.
Cables
- 6-foot 15-pin HD VGA male to male cable included.
- 6-foot USB Type A male to USB Type B male cable included.
- 6-foot power supply cable included.
Power
- 110 or 220 VAC at 50 or 60 Hz via IEC connector.
- Power Consumption: 30W
- Maximum Inrush Current: 30A
MTBF
- RACKMUX-VS17-T: 40,530 hrs.
Environmental
- Operating temperature: 32°F to 104°F (0°C to 40°C).
- Storage temperature: -4°F to 140°F (-20°C to 60°C).
- Operating and Storage Relative Humidity: 20 to 90% non-condensing RH.
Dimensions
- WxDxH (Inches): 19x23.9x1.75.
- Weight: 26 lbs.
- Drawer is adjustable to various rack depths from 24" deep to 39" deep.
- Drawer locks into place when open to prevent it from sliding in and out of the rack.
- Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.
