ROG Rapture GT-AX11000 Pro, IEEE 802.11ax, Tri-Band 2.4 / 5 / 5 Ghz, 1148 / 4804 / 4804 Mbps, 1xUSB 3.1 / 1xUSB 2.0, 5xRJ45, Retail Wireless Router
Quantity:
- SKU: 15963779
- Manufacturer: ASUS
- MPN: GT-AX11000 PRO
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$339.22
ROG Rapture GT-AX11000 Pro, IEEE 802.11ax, Tri-Band 2.4 / 5 / 5 Ghz, 1148 / 4804 / 4804 Mbps, 1xUSB 3.1 / 1xUSB 2.0, 5xRJ45, Retail Wireless Router
ASUS ROG Rapture GT-AX11000 Pro (90IG0720-MA1A0V). The ROG Rapture GT-AX11000 Pro is designed for gamers who want to keep multiple devices connected and still get incredible gaming performance. Enjoy up to twelve simultaneous WiFi streams for more video streaming, gaming and browsing for everyone in your home.
- High-efficiency WiFi 6 – Ultrafast WiFi 6 tri-band boosts speeds up to 11,000 Mbps, with 160 MHz channels for better efficiency and throughput
- Expanded coverage – Exclusive ASUS RangeBoost Plus improves signal range and overall coverage
- Flexible networking ports – One 2.5G port and one 10G port can be configured for either WAN or LAN operation
- Extreme quad-core CPU power – High-performance WiFi chipsets and 64-bit 2.0 GHz quad-core CPU take wireless signal processing to the next level
- Triple-level game acceleration – Online gaming gets network prioritization every step of the way, from PC to game server
| Model Name | GT-AX11000 PRO |
| Network Standard |
IEEE 802.11ax IPv4 IPv6 |
| Product Segment | AX11000 ultimate AX performance |
| AX technology | Yes |
| Data Rate |
2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps 5G-1Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps 5G-2Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps |
| Antenna | External antenna x 8 (non-detachable) |
| Transmit/Receive |
2.4GHz 4x4 5GHz-1 4x4 5GHz-2 4x4 |
| Processor | 2.0GHz quad-core processor |
| Memory | 256MB NAND flash and 1GB DDR4 RAM |
| Boosts speed | OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth * The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions. |
| Operating Frequency | Tri-band Wi-Fi: 2.4 GHz / 5 GHz-1 / 5 GHz-2 |

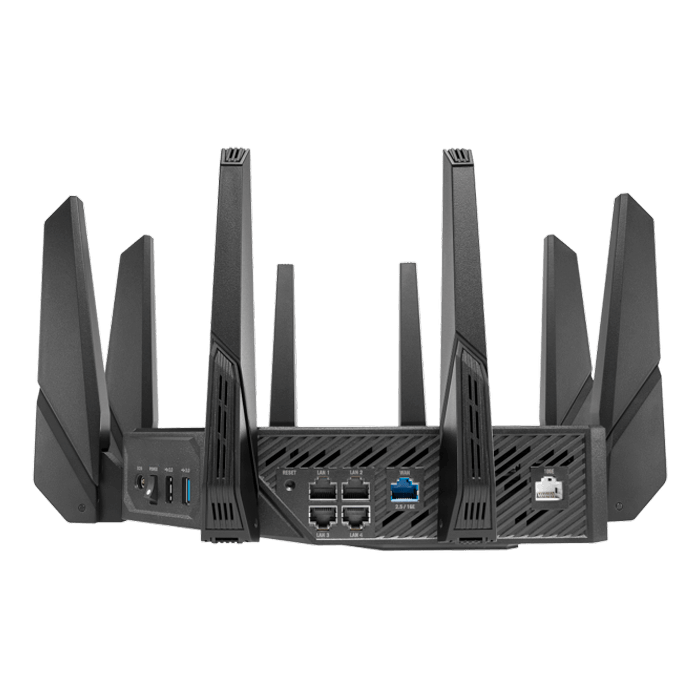

| Ports | 1 x 2.5 Gigabit WAN Port 1 x 10 Gigabit WAN/LAN Port 4 x Gigabit LAN Ports 1 x USB 3.2 Gen 1 Port 1 x USB 2.0 Port |
| Button | WPS Button, LED Button, Reset Button, Power Switch |
| LED Indicator | Power x 1 2.4G x 1 5GHz-1 x 1 5GHz-2 x 1 WPS x 1 10GE x 1 LAN x 1 WAN x 1 |
| Power Supply | AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 3.42 A ;19.5 V with max. 3.33 A |
| Package content | GT-AX11000 Pro WiFi Gaming Router RJ-45 Cable Power Adapter Quick Start Guide Warranty Card |
| Product Weight (g) | 2180g |
| AiMesh |
AiMesh Primary AiMesh router AiMesh node |
| Router APP | ASUS Router APP |
| Game |
Game Boost/acceleration Game Radar WTFast UU boost ROG_First OpenNAT (Game Profile) |
| Alexa | Support Alexa skill |
| AiProtection |
AiProtection Pro Router Security Assessment Malicious site blocking Two-Way IPS Infected Device Prevention and Blocking |
| Parental Control |
Parental Control Parental Control Customized Internet schedule Maximum Parental Control profile : 64 Maximum Parental Control content filter rule : 64 |
| Traffic Control |
Adaptive QoS Bandwidth Monitor Bandwidth limiter Maximum Bandwidth limiter rule : 32 Traditional QoS Traffic Monitor Real-time traffic monitor Wired Traffic Monitor Wireless Traffic Monitor Traffic Analyzer Traffic analysis period : Daily, Weekly, Monthly Website history |
| Wireless |
IPv6 MU-MIMO WiFi Encryption : WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, Open System UTF-8 SSID Guest Network Maximum Guest Network rule : 2.4 GHz x 3, 5 GHz-1 x 3, 5 GHz-2 x 3 Guest Network Connection time limit Guest Network Encryption : Open system, WPA/WPA2-Personal/WPA3-Personal WPS Wi-Fi MAC address filter Maximum MAC filters : 64 Wireless scheduler Airtime fairness RADIUS Client Universal beamforming |
| WAN |
Explicit beamforming Internet connection Type : Automatic IP, Static IP, PPPoE, PPTP, L2TP Dual WAN WAN Aggregation 3G/4G LTE dongle Android tethering Port forwarding Maximum port forwarding rule : 64 Port triggering Maximum port triggering rule : 32 DMZ DDNS NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay Let's Encrypt Safe browsing DNS-over-TLS |
| LAN |
DHCP Server IGMP snooping IPTV LAN Link Aggregation Manually assign IP address Maximum manually assign IP address rule : 128 |
| VPN |
VPN Client L2TP VPN Client OVPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server OVPN VPN Server PPTP VPN Server WireGuard VPN Fusion |
| USB application |
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4 Safely Remove disk AiCloud Download master AiDisk Media Server Time Machine Samba Server FTP Server Shared Folder privileges |
| Administration |
Operating mode : Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge Operating system : ASUSWRT Free OS upgrade Firewall Maximum Firewall keyword filter : 64 Maximum Firewall network service filter : 32 Maximum Firewall URL filter : 64 Wake on LAN (WOL) SSH Configuration backup and restore Diagnosis tools Feedback system System log New Device Connect Notification Login Captcha Connection Diagnosis Security Scan Auto Firmware Update |
