ROG Rapture GT6(B-2-PK), IEEE 802.11ax, Tri-Band 2.4 / 5GHz / 5GHz, 574 / 4804 / 4804 Mbps, 3xRJ45, 1x USB 3.2 Gen 1, Retail Wireless Mesh System
Quantity:
- SKU: 15843401
- Manufacturer: ASUS
- MPN: ROG Rapture GT6(B-2-PK)
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$447.12
ROG Rapture GT6(B-2-PK), IEEE 802.11ax, Tri-Band 2.4 / 5GHz / 5GHz, 574 / 4804 / 4804 Mbps, 3xRJ45, 1x USB 3.2 Gen 1, Retail Wireless Mesh System

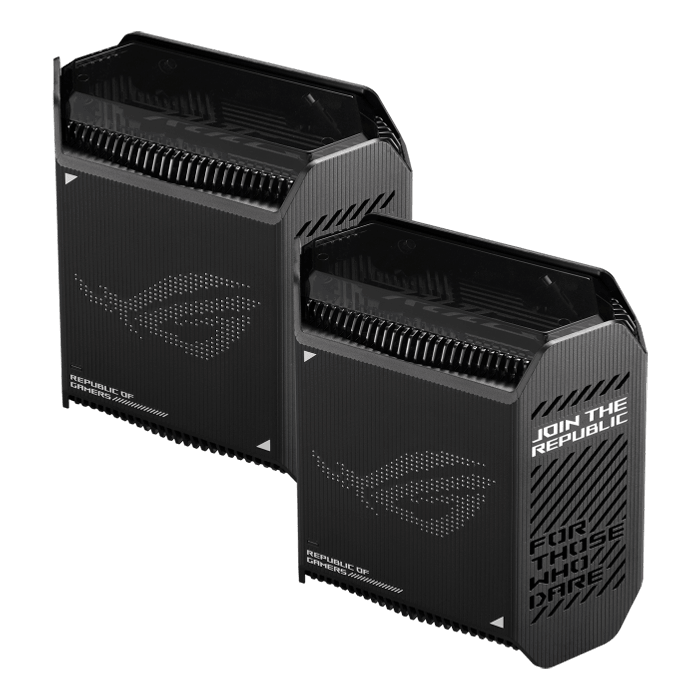

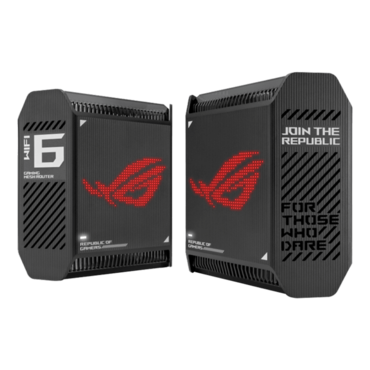

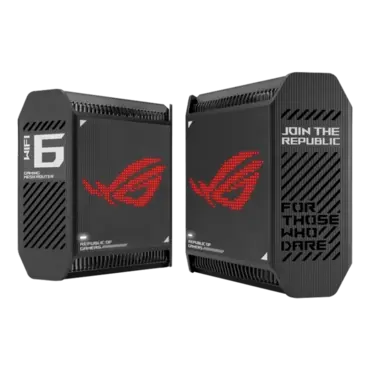

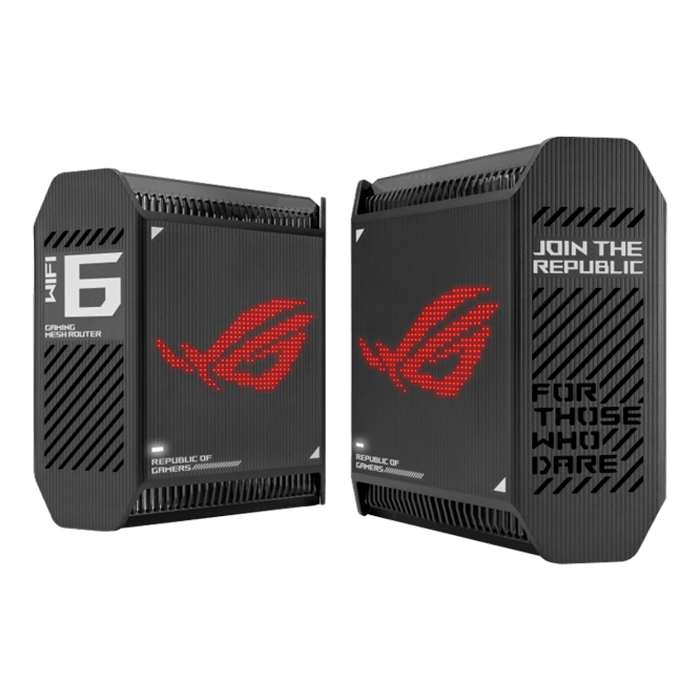

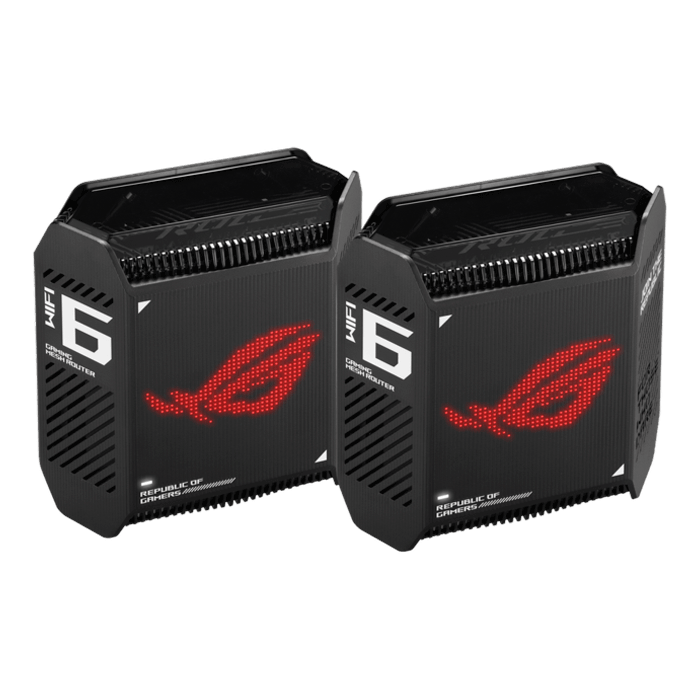

ASUS ROG Rapture GT6(B-2-PK) (90IG07F0-MF9A20). Experience the ideal all-around Wifi solution with the latest edition of the Rapture series. The ROG Rapture GT6 is the first tri-band ROG mesh Wifi system and is designed to deliver amazing experiences through the latest network technology. This next-gen gaming mesh Wifi system is your high-tech companion for your internet journey.
- High-Efficiency Performance – WiFi 6 tri-band gaming mesh system with dedicated high-performance backhaul and 160 MHz channels that provide ultrafast speeds of up to 10,000 Mbps.
- Expanded Coverage – Nine powerful internal antennas and ASUS RangeBoost Plus technology to cover up to 5,800 square feet.
- Ultra-fast Wired Connection – Enjoy up to 2.5 times faster wired connectivity with a 2.5 Gbps WAN port and LAN aggregation.
- Triple-Level Game Acceleration – Optimize game traffic every step of the way, from your device to the game server.
- Comprehensive Network Security - Free lifetime subscription to AiProtection by Trend Micro™ and ASUS Instant Guard, which secures your WiFi and protects your devices wherever you are.
| Model Name |
GT6(B-2-PK) GT6(W-2-PK) |
| Design | Black Moonlight White |
| Network Standard |
WiFi 6 (802.11ax) IPv4 IPv6 Backwards compatible with 802.11a/b/g/n/ac Wi-Fi |
| Product Segment | AX10000 ultimate AX performance |
| AX technology | Yes |
| Data Rate |
2.4GHz AX: 2x2 (Tx/Rx) 1024 QAM 20/40MHz, up to 574Mbps 5G-1Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps 5G-2Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps |
| Antenna | Internal antenna x 9 |
| Transmit/Receive |
2.4GHz 2x2 5GHz-1 4x4 5GHz-2 4x4 |
| Processor | 1.7GHz tri-core processor |
| Memory | 256MB Flash 512MB DDR4 RAM |
| Boosts speed | OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth * The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions. |
| Operating Frequency | 2.4G Hz 5 GHz-1 5 GHz-2 |
| Ports | 1 x 2.5 Gigabit WAN Port 3 x Gigabit LAN Ports 1 x USB 3.2 Gen 1x1 Port |
| Button | WPS Button Reset Button Power Switch |
| LED Indicator | Power x 1 |
| Power Supply | AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current |
| Package content | ROG Rapture GT6 RJ-45 Cable Power Adapter Quick Start Guide Warranty Card |
| Product Weight (g) | 880 g |
| AiMesh |
AiMesh Primary AiMesh router AiMesh node |
| Router APP | ASUS Router APP |
| Game |
Game Boost/acceleration Game Radar WTFast ROG_First OpenNAT (Game Profile) Gaming port |
| Alexa | Support Alexa skill |
| AiProtection |
AiProtection Pro Router Security Assessment Malicious site blocking Two-Way IPS Infected Device Prevention and Blocking |
| Parental Control |
Parental Control Parental Control Customized Internet schedule |
| Traffic Control |
Adaptive QoS Bandwidth Monitor Bandwidth limiter Traditional QoS Traffic Monitor Real-time traffic monitor Wired Traffic Monitor Wireless Traffic Monitor Traffic Analyzer Traffic analysis period : Daily, Weekly, Monthly Website history |
| Wireless |
IPv6 MU-MIMO WiFi Encryption : WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, Open System UTF-8 SSID Guest Network Guest Network Connection time limit WPS Wi-Fi MAC address filter Maximum MAC filters : 64 Wireless scheduler Wi-Fi Radar Airtime fairness RADIUS Client Universal beamforming |
| WAN |
Explicit beamforming Dual WAN 3G/4G LTE dongle Android tethering Port forwarding Maximum port forwarding rule : 64 Port triggering Maximum port triggering rule : 32 DMZ DDNS NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough, PPPoE relay Let's Encrypt Safe browsing DNS-over-TLS |
| LAN |
DHCP Server IGMP snooping IPTV LAN Link Aggregation Manually assign IP address |
| VPN |
VPN Client L2TP VPN Client OVPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server OVPN VPN Server PPTP VPN Server WireGuard VPN Fusion |
| USB application |
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4 Safely Remove disk AiCloud Download master AiDisk Media Server Time Machine Samba Server FTP Server Shared Folder privileges |
| Administration |
Operating mode : Wireless router mode Access point mode Free OS upgrade Firewall Maximum Firewall keyword filter : Max 64 rules Maximum Firewall network service filter : Max 32 rules Maximum Firewall URL filter : Max 64 rules Wake on LAN (WOL) SSH Configuration backup and restore Diagnosis tools Feedback system System log New Device Connect Notification Login Captcha Connection Diagnosis Security Scan Auto Firmware Update |
