Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
M/B Form Factor | ATX(12" x 9.6"), CEB(12" x 10.5"), EEB(12" x 13") |

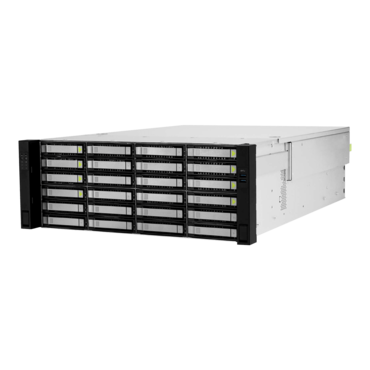

Drive Bay |

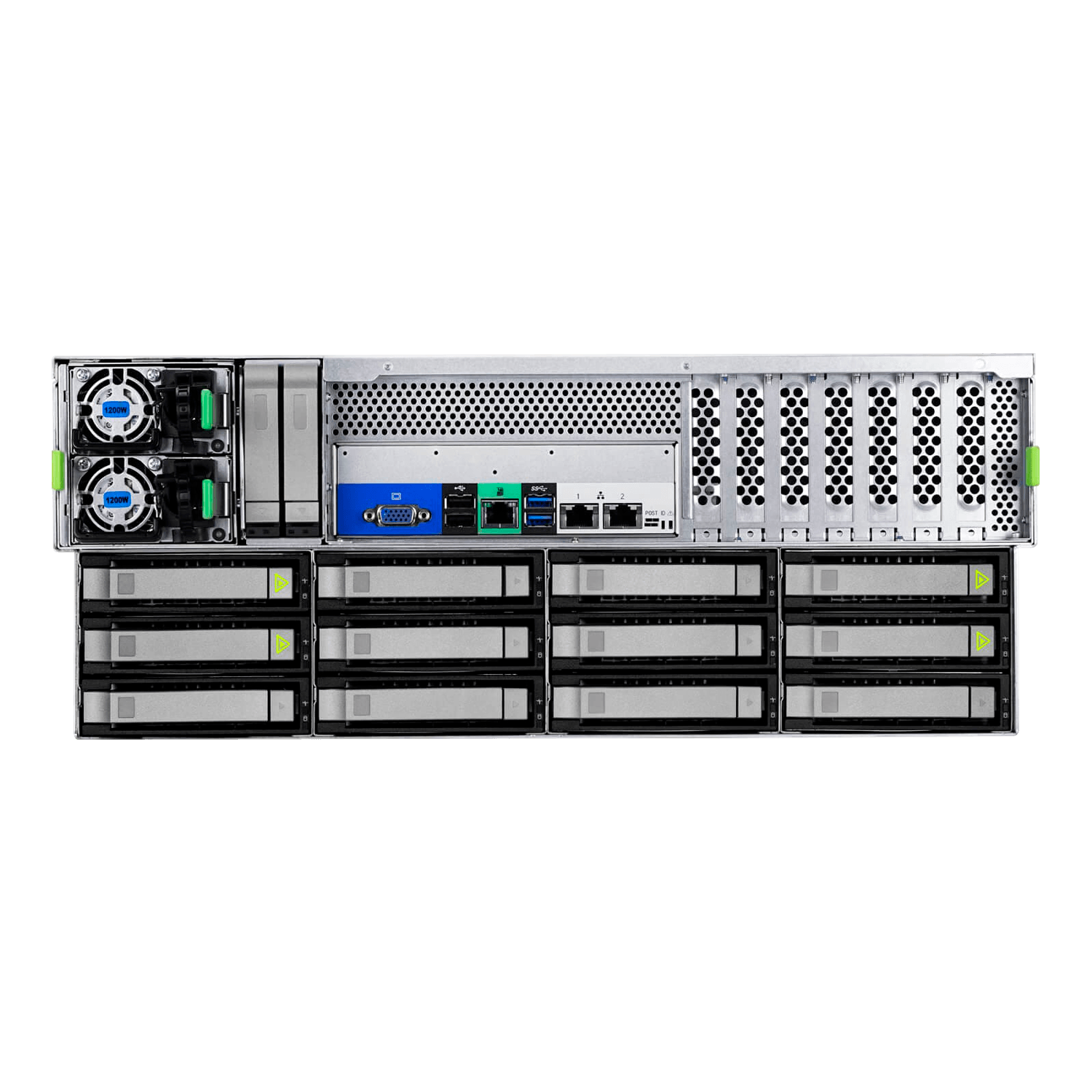

• External 2.5"/3.5" hot-swap trays x 36 (optional U.2 NVMe SSD tray x 12) • Rear 2.5" hot-swap trays x 2 (supports SAS 12Gbps) |
Power Supply |
Supports: • Form factor: 80 Plus Platinum CRPS • Watt: 1200W |
Indicators | Power LED, LAN1/LAN2/LAN3/LAN4 LED, system LED, ID LED, HDD LED |
Front Control Panel | Power on/off, reset, NMI, ID SW, USB3.0x2 |
Backplane Type-1 |
• Front host: Mini-SAS HD (SFF-8643) x 3, Slimline (SFF-8654) x 8 • Front HDD: SAS/SATA x 24 or SAS/SATA x 16 and NVMe SSD x 8 • Rear Host: Mini-SAS HD (SFF-8643) x 3, Slimline (SFF-8654) x 4 • Rear HDD: SAS/SATA x 12 or SAS/SATA x 8 and NVMe SSD x 4 |
Backplane Type-2 |
• Front Host: Mini-SAS HD (SFF-8643) x 3, OCuLink (SFF-8611) x 8 • Front HDD: SAS/SATA x 24 or SAS/SATA x 16 and NVMe SSD x 8 • Rear Host: Mini-SAS HD (SFF-8643) x 3, OCuLink (SFF-8611) x 4 • Rear HDD: SAS/SATA x 12 or SAS/SATA x 8 and NVMe SSD x 4 |
12Gbps Expander Module | Broadcom SAS 35 x 36R expander |

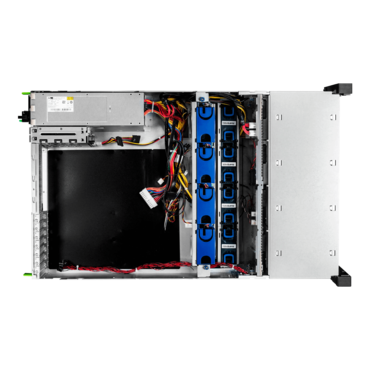

Cooling Fans |
• 80 x 38mm PWM hot-swap top fans x 4, 8300RPM • 80 x 38mm PWM hot-swap bottom fans x 4, 12000RPM |
Expansion Slot | Low-profile PCIe slots x 7 |
Material |
• Material: SGCC • Thickness: 1.2mm |
Rail Kit | Supports 28" ball-bearing slide rail |
Product Dimensions (DxWxH; Chassis Only) |
659.3 x 448.5 x 174.5mm (26" x 17.7" x 6.9") |
Package Dimensions (DxWxH) | 920 x 610 x 315mm |
Weight (Chassis Only) |
• Net weight: 26.56kg • Gross weight: 30.51kg |
Cubic Feet | 6.24 |
Container Information |
Single packing with pallets: • 20': 120pcs • 40': 252pcs • 40'HQ: 294pcs |
* InWin NVMe backplane supports PCIe Gen4 data transfer speed, the actual speed will be determined by MB and HDD specifications. * All components and optional parts are not included. In Win Development Inc. reserves the right to make final modifications. |
