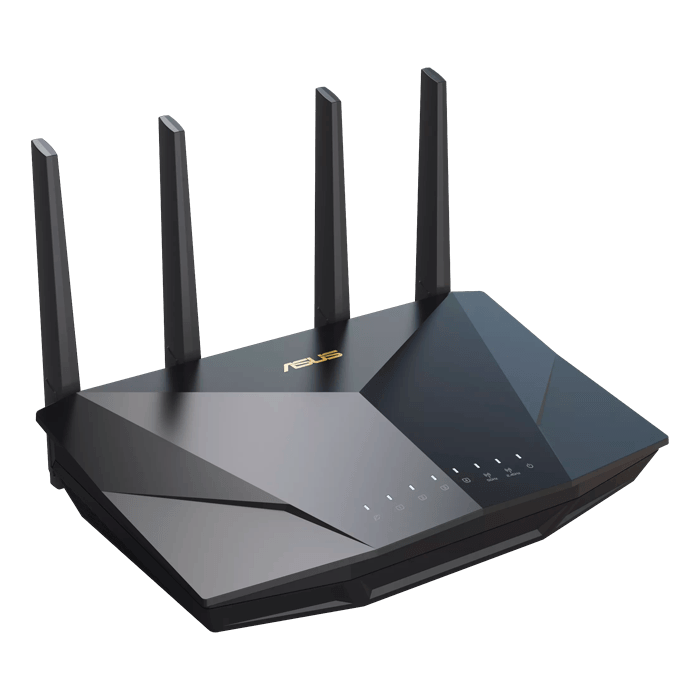

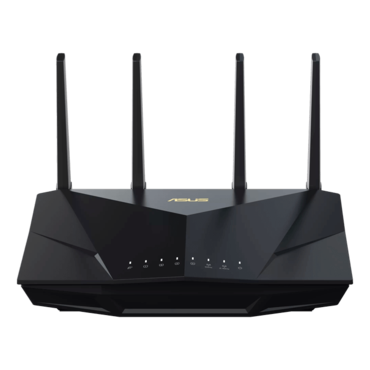

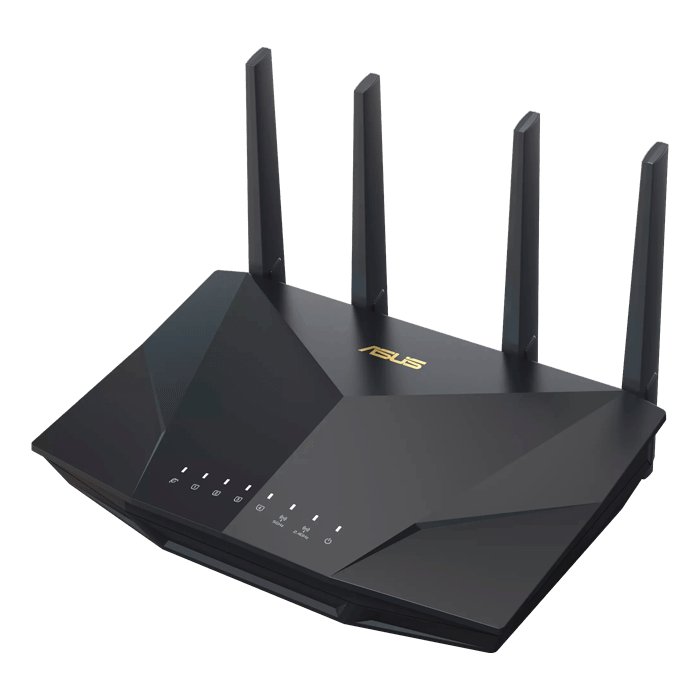

RT-AX5400, IEEE 802.11ax, Dual-Band 2.4 / 5GHz, 574 / 4804 Mbps, 4xRJ45, USB 3.2, Wireless Router
Quantity:
- SKU: 15970110
- Manufacturer: ASUS
- MPN: RT-AX5400
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$187.00
RT-AX5400, IEEE 802.11ax, Dual-Band 2.4 / 5GHz, 574 / 4804 Mbps, 4xRJ45, USB 3.2, Wireless Router
ASUS RT-AX5400 (90IG0860-MA1B0T). With comprehensive built-in VPN network protection provided by advanced ASUS security tech, RT-AX5400 can definitely exceed your imagination of networking experience and work perfectly with your existing WiFi devices*! Let’s gear up for ultra-secure connectivity and powerful performance!
- High Efficiency WiFi 6 – This ultrafast WiFi 6 router delivers up to 5,400 Mbps speed, with increased capacity to handle more devices.
- Powerful WAN Aggregation – Blazing bonded WAN speeds up to 2 Gbps deliver reliable internet connectivity for smart homes and small businesses.
- Commercial-grade Security Anywhere – Protect your home network with AiProtection Pro, powered by Trend Micro™. And when away from home, ASUS Instant Guard gives you a one-click sharable secure VPN.
- Advanced Parental Controls – Protect your kids online with instant monitoring, content filters and customized settings for each connected device, at no extra cost.
- Easy Extendable Network – Enjoy seamless roaming with rich, advanced features by adding any AiMesh-compatible router.
| Model | RT-AX5400 |
| Network Standard |
IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) |
| Product Segment | AX5400 ultimate AX performance : 574+4804 Mbps |
| AX technology | Yes |
| Antenna | External antenna x 4 (non-detachable) |
| Processor | 1.5 GHz tri-core processor |
| Memory |
256 MB Flash 512 MB RAM |
| Boosts speed |
OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth |
| Operating Frequency | 2.4G Hz / 5 GHz |

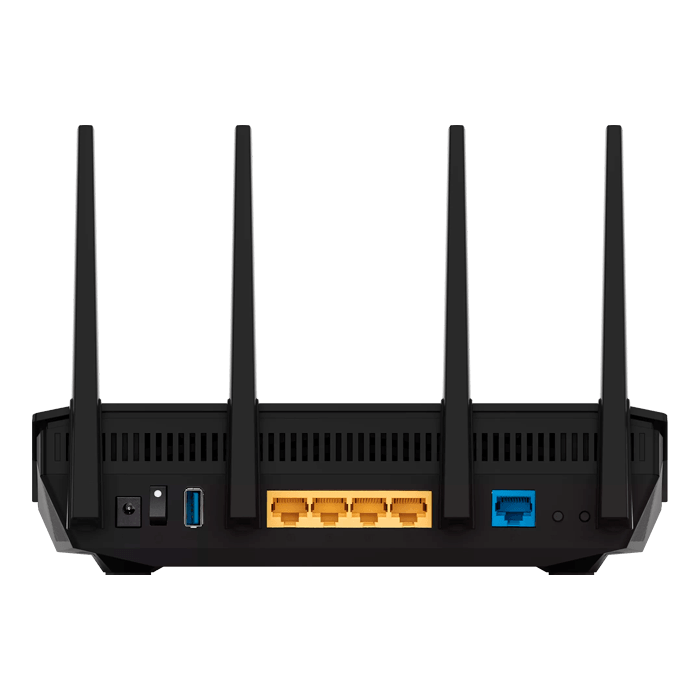

| Ports |
RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4 USB 3.2 Gen 1 x 1 |
| Button | WPS Button, Reset Button, Power Switch |
| LED Indicator |
Power x 1 2.4G x 1 5G x 1 LAN x 4 WAN x 1 |
| Power Supply |
AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 1.75 A current |
| Package content |
RT-AX5400 WiFi router RJ-45 cable Power adapter Quick Start Guide Warranty card |
| Product Weight (g) | 612.4g |
| AiMesh |
AiMesh Primary AiMesh router AiMesh node |
| Router APP | ASUS Router APP |
| Alexa | Support Alexa skill |
| AiProtection |
AiProtection Pro AiProtection Malicious site blocking Two-Way IPS Infected Device Prevention and Blocking |
| Parental Control |
Parental Control Parental Control Customized Internet schedule |
| Traffic Control |
Adaptive QoS Bandwidth Monitor Bandwidth limiter Maximum Bandwidth limiter rule : 32 Traditional QoS Maximum Traditional QoS rule : 32 Traffic Monitor Real-time traffic monitor Wired Traffic Monitor Wireless Traffic Monitor Traffic Analyzer Traffic analysis period : Daily, Weekly, Monthly Website history |
| Wireless |
IPv6 MU-MIMO Wi-Fi Encryption : WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support UTF-8 SSID Guest Network Maximum Guest Network rule : 2.4GHz x3, 5GHz x3 Guest Network Connection time limit Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal, WPS WPS WiFi MAC address filter Maximum MAC filters : 64 Wireless scheduler Airtime fairness RADIUS Client Universal beamforming Explicit beamforming |
| WAN |
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP Dual WAN WAN Aggregation 3G/4G LTE dongle Android tethering Port forwarding Maximum port forwarding rule : 64 Port triggering Maximum port triggering rule : 32 DMZ DDNS NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay Let's Encrypt Safe browsing DNS-over-TLS |
| LAN |
DHCP Server IPTV LAN Link Aggregation Manually assign IP address Maximum manually assign IP address rule : 64 |
| VPN |
Instant Guard VPN Client L2TP VPN Client OVPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server OVPN VPN Server PPTP VPN Server WireGuard VPN Fusion |
| USB application |
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4 3G/4G LTE dongle Safely Remove disk AiCloud Download master AiDisk Media Server Time Machine Samba Server FTP Server Shared Folder privileges |
| Administration |
Operating mode : Wireless router mode Access point mode Media bridge mode Repeater mode AiMesh node mode Operating system : ASUSWRT Free OS upgrade Firewall Maximum Firewall keyword filter : 64 Maximum Firewall network service filter : 32 Maximum Firewall URL filter : 64 SSH Wake on LAN (WOL) Configuration backup and restore Diagnosis tools Feedback system System log New Device Connect Notification Login Captcha Connection Diagnosis Security Scan Auto Firmware Update |
