Radeon™ RX 6950 XT NITRO+ PURE, 1890 - 2435MHz, 16GB GDDR6, Graphics Card
- SKU: 14946763
- Manufacturer: SAPPHIRE
- MPN: 11317-04-20G
- Availability: TEMPORARILY OUT OF STOCK

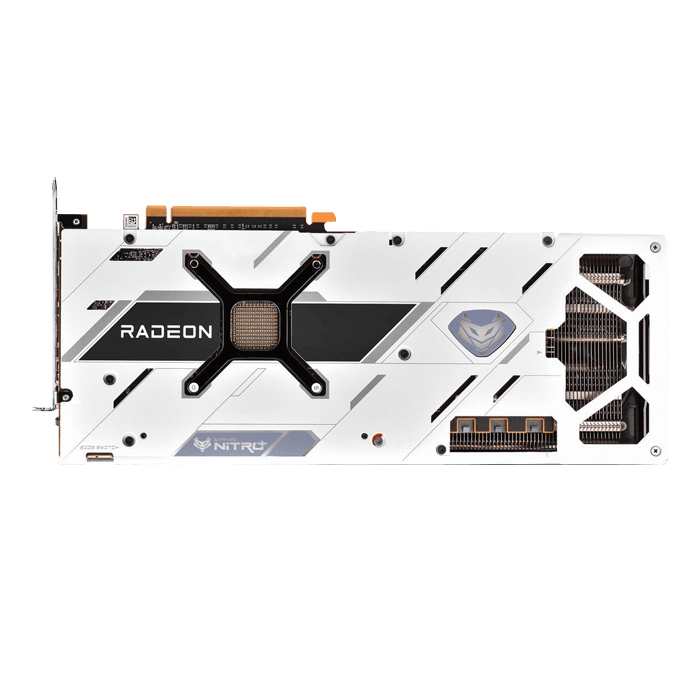

SAPPHIRE Radeon™ RX 6950 XT NITRO+ PURE (11317-04-20G). The NITRO+ AMD Radeon™ RX 6950 XT PURE delivers mega 4K gaming performance with incredible graphical quality. The all new High TG Copper PCB works in tandem with the die-casted Frontplate Heatsink to ensure stable, top-notch airflow and cooling performance. Fitted with the latest Angular Velocity Fan Blade Design, and constructed in the Die Casted Aluminum-Magnesium Alloy Frame, experience increased airflow and cooler operation in a strong and scratch resistant special frame. The NITRO+ AMD Radeon™ RX 6950 XT PURE is finished with a high quality aluminum Metal Blackplate with Thermal Pad to protect components on the backside of the PCB and help dissipate heat, and enveloped in a sleek Sporty White Design to be a stunning addition to your battlestation!
- GPU: OC BIOS Up to 2435 MHz
- GPU: Boost Clock: Up to 2368 MHz
- GPU: Game Clock: Up to 2162 MHz
- Memory: 16GB/256 bit DDR6. 18 Gbps Effective
- Stream Processors: 5120
- RDNA™ 2 Architecture
- Ray Accelerator:80
- ARGB Fan
| GPU |
AMD Radeon™ RX 6950 XT Graphics Card 7nm GPU AMD RDNA™ 2 Architecture |
| Engine Clock |
OC BIOS Up to 2435 MHz Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary. |
| Stream Processors | 5120 |
| Infinity Cache | 128MB |
| Ray Accelerators | 80 |
| Memory Size/Bus | 16GB GDDR6 |
| Memory Clock | 18 Gbps Effective |
| Displays | Maximum 4 Displays |
| Resolution |
|
| Interface |
PCI-Express 4.0 |
| Output |
|
| BIOS Support |
|
| Game Index |
4K |
| Sapphire Features |
|
| AMD Features |
|
| Cooling |
3 Fans |
| Form Factor |
3.5 slot, ATX Dimension: 320(L)X 134.75(W)X 71.57 (H)mm |
| Power Consumption |
405W Total Board Power |
| OS |
Linux®, Windows® 7*, Windows® 10, and Windows 8.1. 64-bit operating system required *Does not support all features including but not limited to Hardware Raytracing |
| System Requirement |
|
