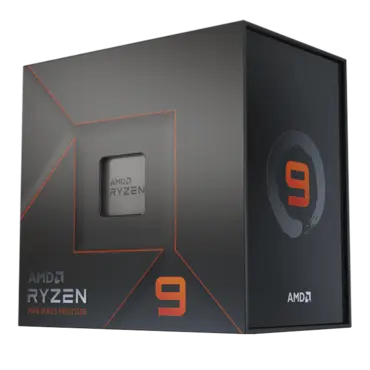

Ryzen™ 9 7950X 16-Core 4.5 - 5.7GHz Turbo, AM5, 170W TDP, Processor
Quantity:
- SKU: 15133851
- Manufacturer: AMD
- MPN: 100-100000514WOF
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$542.78
Ryzen™ 9 7950X 16-Core 4.5 - 5.7GHz Turbo, AM5, 170W TDP, Processor
Welcome to the new era of performance. AMD Ryzen 7000 Series ushers in the speed of “Zen 4” for gamers and creators with pure power to tackle any game or workflow on the digital playground. The world’s most advanced PC processor1 for gamers and creators extends AMD performance leadership to power your PC.
| General Specifications | ||
| Platform | Desktop | |
| Market Segment | Enthusiast Desktop | |
| Product Family | AMD Ryzen™ Processors | |
| Product Line | AMD Ryzen™ 9 Desktop Processors | |
| AMD PRO Technologies | No | |
| Consumer Use | Yes | |
| Regional Availability | Global | |
| Former Codename | "Raphael AM5" | |
| Architecture | "Zen 4" | |
| # of CPU Cores | 16 | |
| Multithreading (SMT) | Yes | |
| # of Threads | 32 | |
| Max. Boost Clock | Up to 5.7GHz | |
| Base Clock | 4.5GHz | |
| L1 Cache | 1MB | |
| L2 Cache | 16MB | |
| L3 Cache | 64MB | |
| Default TDP | 170W | |
| Processor Technology for CPU Cores | TSMC 5nm FinFET | |
| Processor Technology for I/O Die | TSMC 6nm FinFET | |
| CPU Compute Die (CCD) Size | 71mm² | |
| I/O Die (IOD) Size | 122mm² | |
| Package Die Count | 3 | |
| Unlocked for Overclocking | Yes | |
| AMD EXPO™ Memory Overclocking Technology | Yes | |
| Precision Boost Overdrive | Yes | |
| Curve Optimizer Voltage Offsets | Yes | |
| AMD Ryzen™ Master Support | Yes | |
| CPU Socket | AM5 | |
| Supporting Chipsets | X670E X670 B650E B650 |
|
| CPU Boost Technology | Precision Boost 2 | |
| Instruction Set | x86-64 | |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 | |
| Max. Operating Temperature (Tjmax) | 95°C | |
| Launch Date | ||
| *OS Support | Windows 11 - 64-Bit Edition Windows 10 - 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer. |
|
| Connectivity | ||
| USB Type-C® Support | Yes | |
| Native USB 3.2 Gen 2 (10Gbps) Ports | 4 | |
| Native USB 3.2 Gen 1 (5Gbps) Ports | 0 | |
| Native USB 2.0 (480Mbps) Ports | 1 | |
| Native SATA Ports | 0 | |
| Native PCIe® Lanes (Total/Usable) | 28/24 | |
| Additional Usable PCIe Lanes from Motherboard | AMD X670E | 12x Gen4 |
| AMD X670 | 12x Gen4 | |
| AMD B650E | 8x Gen4 | |
| AMD B650 | 8x Gen4 | |
| NVMe Support | Boot, RAID0, RAID1, RAID10 | |
| Memory Channels | 2 | |
| Max. Memory | 128GB | |
| System Memory Subtype | UDIMM | |
| Max Memory Speed | 1x1R | 5200 MT/s |
| 1x2R | 5200 MT/s | |
| 2x1R | 3600 MT/s | |
| 2x2R | 3600 MT/s | |
| ECC Support | Yes (Requires mobo support) | |
| Graphics Capabilities | ||
| Integrated Graphics | Yes | |
| Graphics Model | AMD Radeon™ Graphics | |
| Graphics Core Count | 2 | |
| Graphics Frequency | 2200 MHz | |
| GPU Base | 400 MHz | |
| USB Type-C® DisplayPort™ Alternate Mode | Yes | |
| Product IDs | ||
| Product ID Boxed | 100-100000514WOF | |
| Key Features | ||
| Supported Technologies | AMD EXPO™ Technology AMD Ryzen™ Technologies |
|
