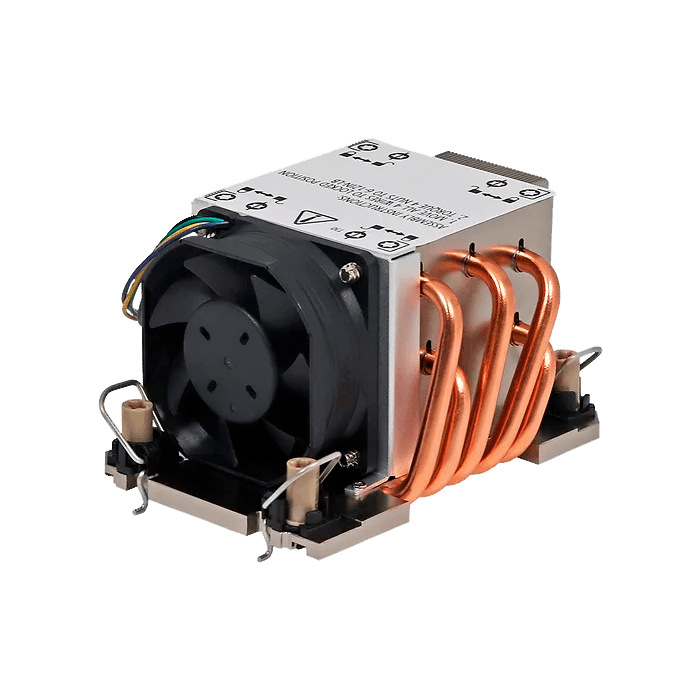

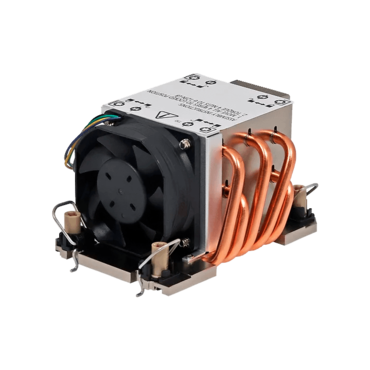

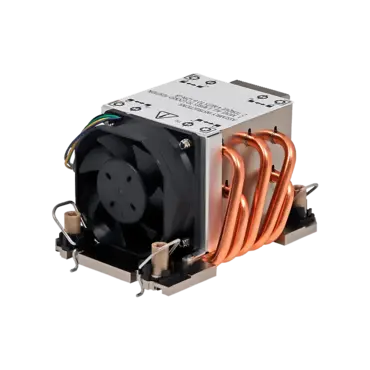

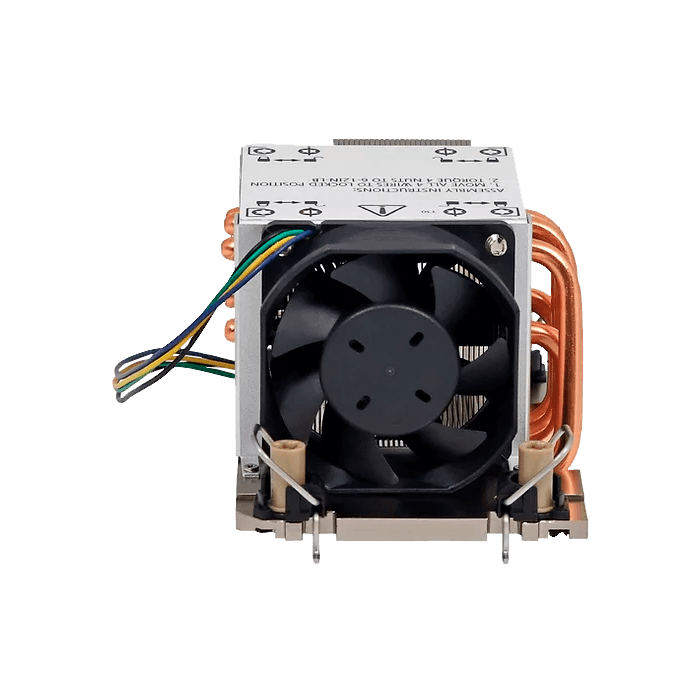

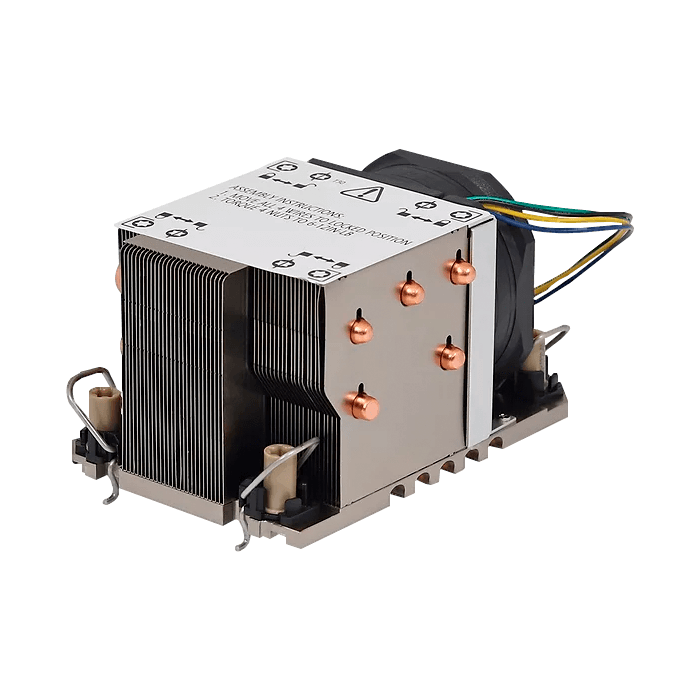

S5, Socket LGA 4677, 66mm Height, 300W TDP, Copper/Aluminum CPU Cooler
Quantity:
- SKU: 14795299
- Manufacturer: DYNATRON
- MPN: S5R1
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$52.34
| CPU Support | Intel |
| CPU Socket | FCLGA 4677 |
| Solution | 2U Server and Up |
| Dimensions | 118 x 82 x 66 mm |
| Weight | 425.1 g |
| Material | 5 Heatpipes with Aluminum Fin Base and Aluminum Fin Stack |
| Fan Dimension | 60 x 60 x 25 mm |
| Speed |
At Duty Cycle 0~20%: 2300± 200 RPM At Duty Cycle 50%: 5400± 10% RPM At Duty Cycle 100%: 11000±10% RPM |
| Rated Voltage | 12V |
| Bearing | Double Ball |
| Power |
At Duty Cycle 0~20%: 0.84 W At Duty Cycle 50%: 2.76 W At Duty Cycle 100%: 18.0 W |
| Air Flow |
At Duty Cycle 0~20%: 11.91 CFM At Duty Cycle 50%: 28.38 CFM At Duty Cycle 100%: 58.31 CFM |
| Noise Level |
At Duty Cycle 0~20%: 25.8 dBA At Duty Cycle 50%: 44.4 dBA At Duty Cycle 100%: 59.8 dBA |
| Air Pressure |
At Duty Cycle 0~20%: 1.48 mm-H2O At Duty Cycle 50%: 7.54 mm-H2O At Duty Cycle 100%: 28.8 mm-H2O |
| Lead Wire Pin Out |
Pin#1-Black(-) Pin#2- Yellow(+) Pin#3- Green(Tachometer/ Signal Output) Pin#4- Blue (PWM) |
| Thermal Grease | Shin-Etsu 7762 Pre-printed |
| NOTE: | Dynatron S2, S3, S4, S5 and S6 each comes with E1B Package Carrier. E1A and E1C Package Carriers are not included but they are available upon request. |
