CPU | CPU Model | AMD EPYC 7272 |
CPU Quantity | 1 | |
CPU Core | 12 | |
CPU Architecture | 64-bit | |
CPU Frequency | 2.9 (base) / 3.2 (turbo) GHz | |
Hardware Encryption Engine | ✔ | |
Memory | System Memory | 32 GB DDR4 ECC RDIMM |
Memory Module Pre-installed | 32 GB (32 GB x 1) | |
Total Memory Slots | 16 | |
Maximum Memory Capacity | 1024 GB (64 GB x 16) | |
Notes |
|
|

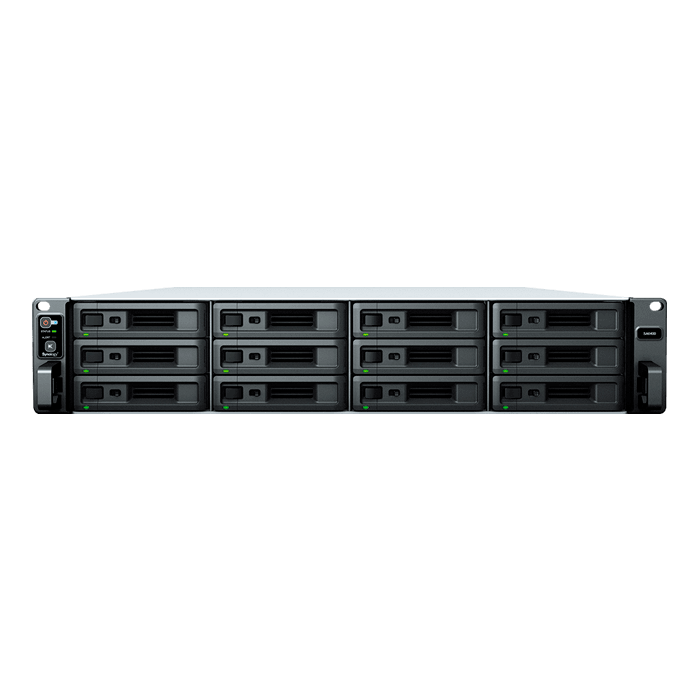

Storage | Drive Bays | 12 |
Maximum Drive Bays with Expansion Unit | 108 (RX1223RP x 8) | |
Compatible Drive Type* (See all supported drives) |
|
|
Hot Swappable Drive* | ✔ | |
Notes |
|
|

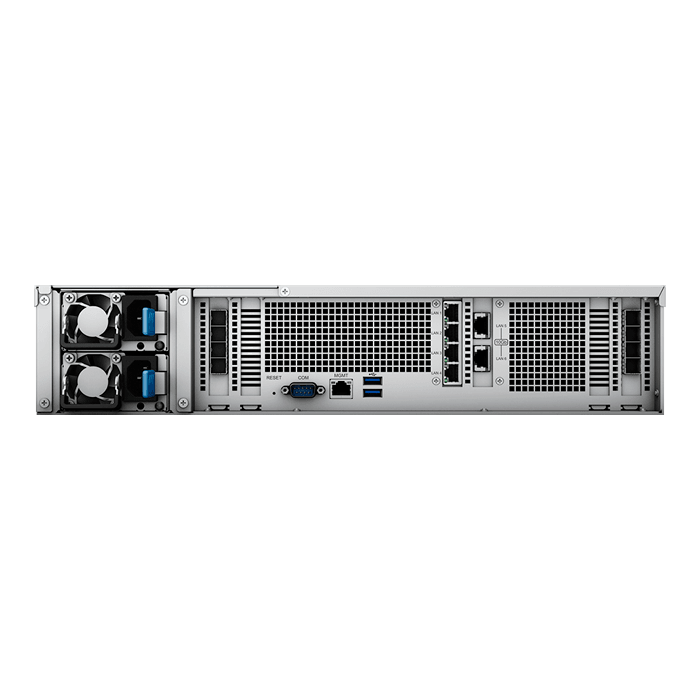

External Ports | RJ-45 1GbE LAN Port | 4 |
RJ-45 10GbE LAN Port | 2 | |
Out-of-Band Management LAN Port | 1 | |
Max. Number of LAN Ports | 15 | |
USB 3.2 Gen 1 Port* | 2 | |
Expansion Port | 8 | |
Expansion Port Type | Mini-SAS HD | |
Notes | The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019. | |
PCIe | PCIe Expansion | 2 x Gen3 x8 slots (x8 link) |
Appearance | Form Factor (RU) | 2U |
Size (Height x Width x Depth) | 88 mm x 482 mm x 724 mm | |
Weight | 16.5 kg | |
Rack Installation Support* | 4-post 19" rack (Synology Rail Kit - RKS-02) | |
Notes | The rail kit is sold separately | |
Others | System Fan | 80 mm x 80 mm x 4 pcs |
Fan Speed Mode |
|
|
Easy Replacement System Fan | ✔ | |
Power Recovery | ✔ | |
Noise Level* | 55.5 dB(A) | |
Scheduled Power On / Off | ✔ | |
Wake on LAN / WAN | ✔ | |
Power Supply Unit / Adapter | 550 watts | |
Redundant Power Supply | ✔ | |
AC Input Power Voltage | 100V to 240V AC | |
Power Frequency | 50/60 Hz, Single Phase | |
Power Consumption |
180.5 watts (Access) 88.56 watts (HDD Hibernation) |
|
British Thermal Unit |
615.89 BTU/hr (Access) 302.18 BTU/hr (HDD Hibernation) |
|
Notes |
|
|
Temperature | Operating Temperature | 0°C to 35°C (32°F to 95°F) |
Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
Relative Humidity | 5% to 95% RH | |
Certification |
|
|
Warranty | 5 Years | |
Notes | The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) | |
Environment | RoHS Compliant | |
Packaging Content |
|
|
Optional Accessories |
|
|
Notes | All memory modules will operate at the maximum frequency specified by the CPU manufacturer. |
