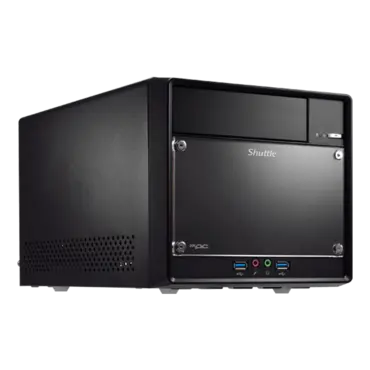

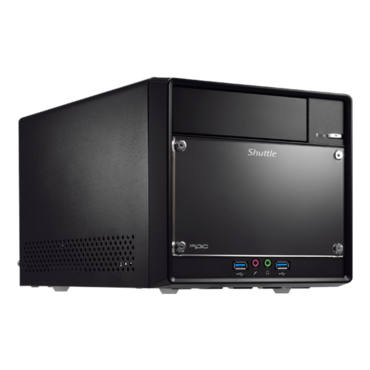

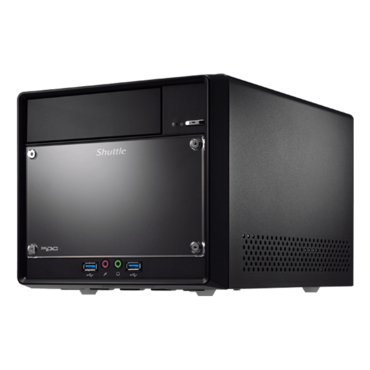

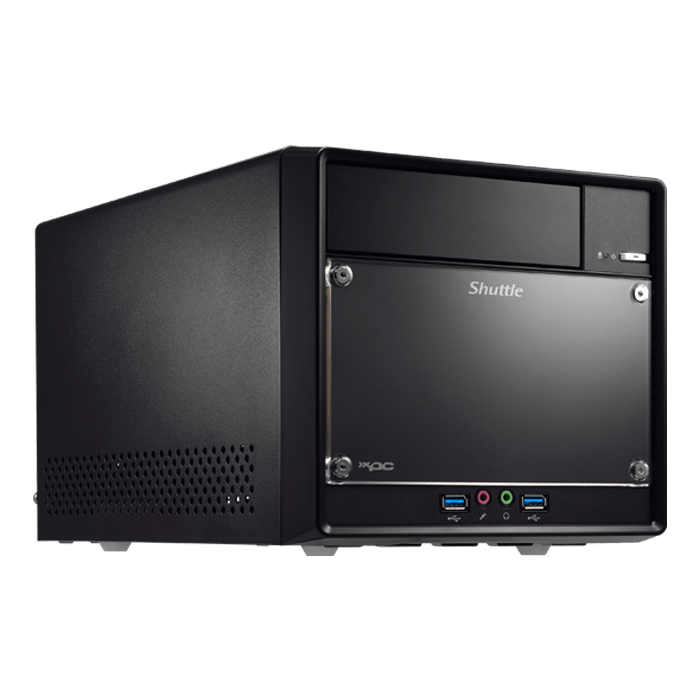

SH310R4V2, Intel® H310 Chipset, 2x DDR4 DIMM, 1x M.2 NVMe/SATA, 1x 5.25", 2x 3.5" HDD, 80 PLUS Bronze 300W PSU, Cube PC Barebone
Quantity:
- SKU: 12588007
- Manufacturer: SHUTTLE
- MPN: SH310R4V2
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$389.27
- Stylish aluminum chassis and a size three times smaller than a full tower PC
- Supports large format dual slot graphic cards and up to three 3.5" hard drives
- Intel® H310 chipset drives 8th/9th generation processors for high performance
- Customizable acrylic front panel on chassis
| PROCESSOR | Supports Intel® 8th/9th Generation Core™ i3/i5/i7/i9, Pentium®, Celeron® 95W processors | |
| MEMORY | (2) DDR4 2400/2666 MHz, dual channel up to 32GB (16GB x 2) | |
| VIDEO GRAPHICS | Integrated Intel UHD graphics (depends on processor type used) | |
| VIDEO OUTPUT | HDMI + DisplayPort + VGA, Supports dual independent displays | |
| AUDIO | Realtek ALC662, 5.1 Channel HD audio | |
| ETHERNET |
Intel Chip i219-LM
10/100/1000 Mb/s |
Supports Wake-ON-LAN function |
| STORAGE INTERFACE | SATA 6 GB/s | |
| ONBOARD CONNECTORS |
(2) 4 pin fan connector
(3) SATA 6.0 connectors (1) ATX main power (2x10) (1) ATX 12V power (2x2) (1) Low pin count header |
(1) RS232 header
(1) Front audio header (1) Front USB 3.1 FCC connector (1) 1x4 USB 2.0 wafer |

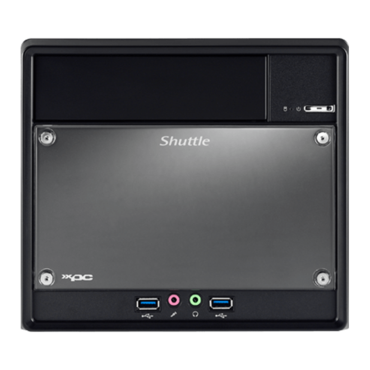

| FRONT PANEL |
(1) Power Button
(1) Power LED (1) HDD LED (2) USB 3.1 Gen 1 port |
(1) External microphone jack 1/8"
(1) External headphone jack 1/8" |

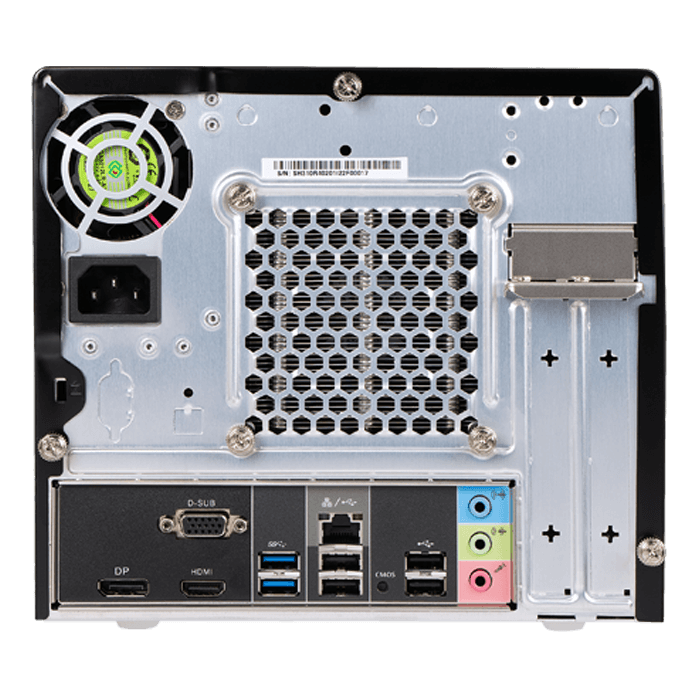

| BACK PANEL |
(1) HDMI
(1) DisplayPort (1) VGA (2) USB 3.1 Gen 1 port (4) USB 2.0 (1) Clear CMOS button |
(1) MIC in
(1) Line-in jack 1/8" (1) Line out jack 1/8" (3) Antenna hole (1) Kensington Lock (1) LAN |
| DRIVE BAYS |
(1) 5.25" ODD bay
(2) 3.5" HDD bay Supports up to 2.5" HDD/SSD x 3 if PHD3 accessory is used |
|
| DIMENSIONS | 13(L) x 8.5(W) x 7.79(H) inches | |
| POWER |
Input: 100 - 240V AC
Supports 80 PLUS Bronze |
80 PLUS 300W power supply |
| ACCESSORIES |
Quick Guide
CPU Thermal Grease Screw Package |
Driver DVD
Power Cord |
| EXPANSION SLOT |
(1) PCI-E X16 Gen 3.0 slot
(1) PCI-E X1 Gen 2.0 slot |
(1) M.2 MAX to 2230 Type E key socket
(1) M.2 MAX to 2280 Type M, key socket |
| OS SUPPORT | Windows 10 64bit, Linux | |
