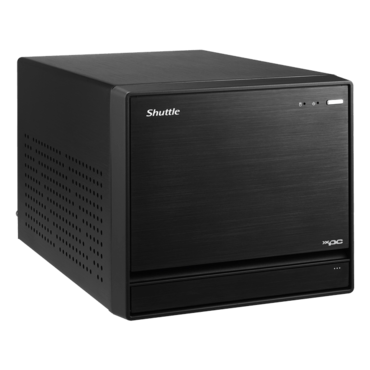

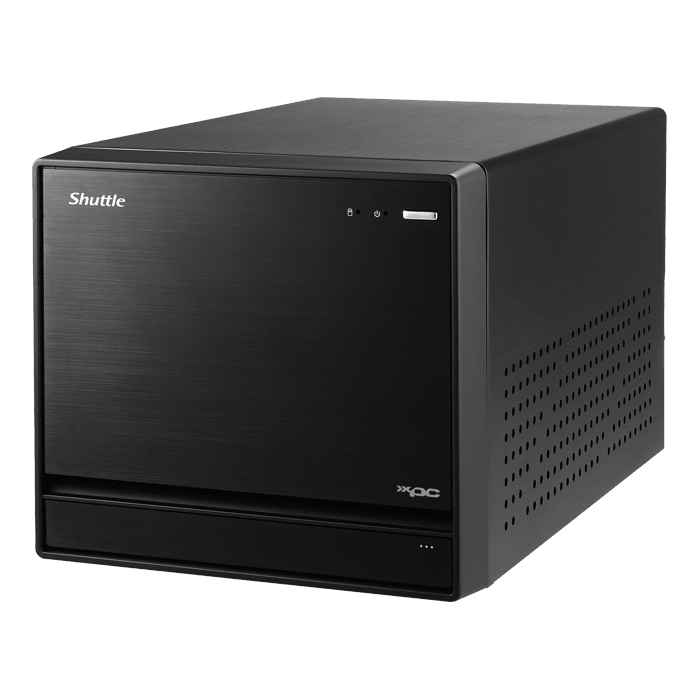

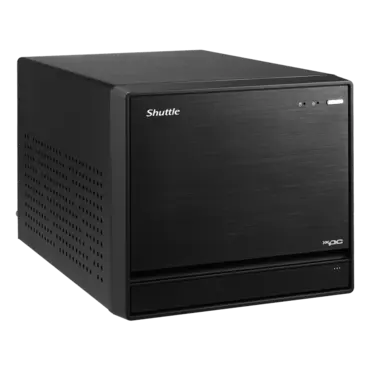

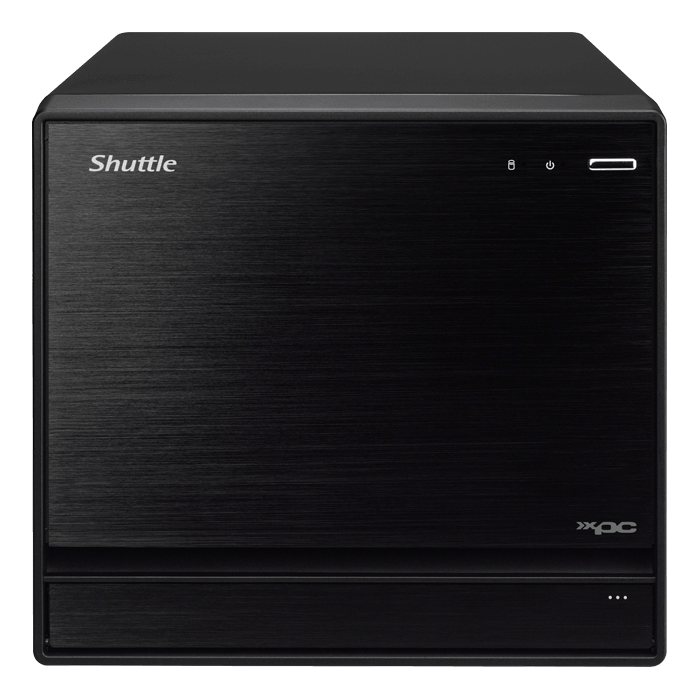

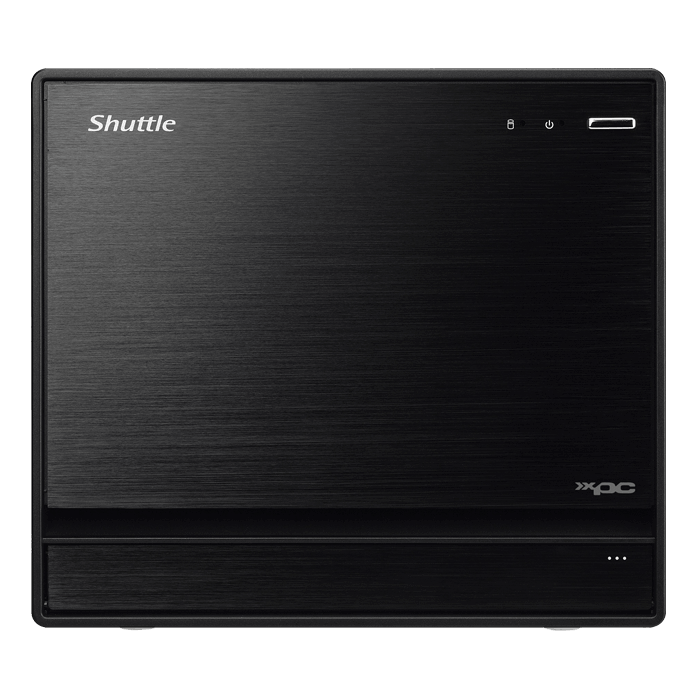

SH570R8 TAA Compliant, Intel® H570 Chipset, 4x DDR4 DIMM, 1x M.2 NVMe/SATA, 4x 3.5" HDD, 80 PLUS Gold 500W PSU, XPC Cube PC Barebone
Quantity:
- SKU: 14778630
- Manufacturer: SHUTTLE
- MPN: SH570R8
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$580.73
| PROCESSOR | Supports Intel® 10th and 11th generation 125W Core™ i3/i5/i7/i9, Pentium®, and Celeron® LGA 1200 processors | |||
| MEMORY | 4 x 288 pin DDR4 2666/2933/3200 MHz*, Supports dual channel up to 128GB (32GB x 4) | |||
| VIDEO GRAPHICS | Intel HD Graphics 630, Supports DirectX 12 | |||
| VIDEO OUTPUT | HDMI + DisplayPort x 2, Supports triple independent displays, Supports 4K playback | |||
| AUDIO | Realtek ALC897, 5.1 channel HD audio | |||
| ETHERNET |
Intel i210AT/i219LM 10/100/1000 MB/s operation |
Supports Wake on LAN function Supports Teaming function | ||
| STORAGE INTERFACE | SATA 6 GB/s | |||
| ONBOARD CONNECTORS |
Occupied front connectors: (1) RS232 (2x5 pin header) |
(2) Fan connectors (4-pin header) (1) USB 2.0 (4-pin header) |
||

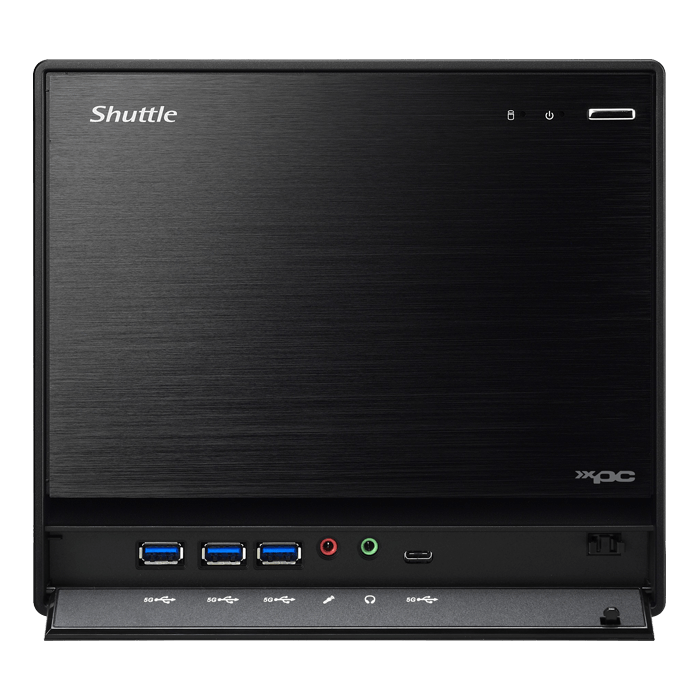

| FRONT PANEL |
(1) Power Button (1) Power LED (1) HDD LED (1) USB 3.2 Gen 1 (Type-C) |
(3) USB 3.2 Gen 1 (Type-A) (1) Microphone-in (1) Headphone out |
||

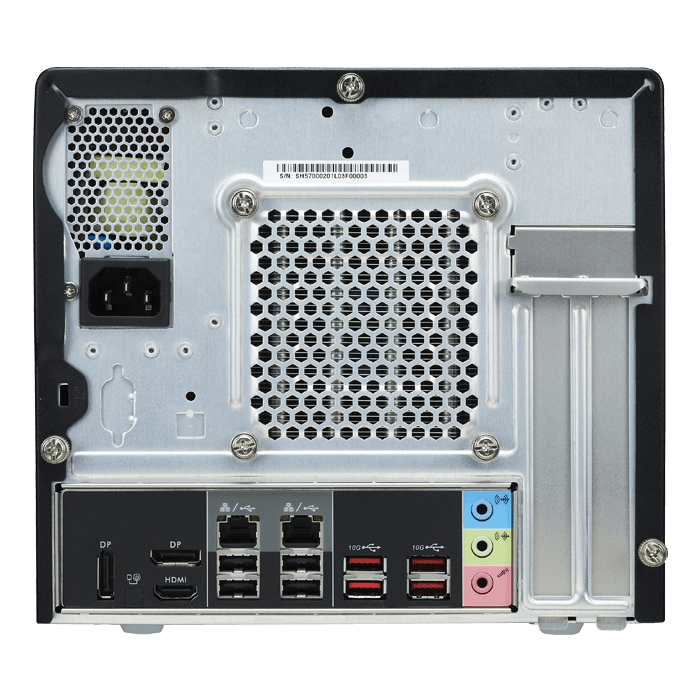

| BACK PANEL |
(1) HDMI 2.0b/HDMI 1.4b** (2) DisplayPort 1.4 (4) USB 2.0 (4) USB 3.2 Gen 2 (Type-A) (2) LAN ports (1) Optional RS232 |
(1) Audio line-in (1) Audio line-out (1) Microphone input (1) Clear CMOS button (3) Perforation for optional WLAN antennas |
||
| DRIVE BAYS | (4) 3.5" HDD bay | Supports up to 2.5" drives with optional PHD3 accessory, can be installed into one 3.5" drive bay | ||
| DIMENSIONS | 13(L) x 8.5(W) x 7.48(H) inches | |||
| POWER | Input: 100 - 240V AC, 50-60 Hz 80 PLUS Gold | 80 PLUS 500W power supply | ||
| ACCESSORIES | Quick Guide Heatsink compound SATA cable x 2 | Driver DVD Power Cord Screw Package | ||
| EXPANSION SLOT |
(1) PCI-E X16 slot Gen 4.0 (1) PCI-E X4 slot Gen 3.0 |
(1) M.2 MAX to 2230 Type E key socket (1) M.2 MAX to 2280 Type M key socket |
||
| OS SUPPORT | Windows 10 64 bit, Linux | |||
|
*DDR4 clock frequency depends on processor: 11th Gen “Rocket Lake” supports DDR4-3200, 10th Gen “Comet Lake” Core i7/i9 CPUs supports DDR4-2933, other 10th Gen CPUs supports DDR4-2666 **HDMI 1.4b with 10th Gen “Comet Lake” processor |
||||
