SST-SOB03, BD 6x / DVD 8x / CD 24x, BD/DVD/CD Disc Burner, Slim Slot-loading, Optical Drive
Ultra HD Blu-ray playback
SILVERSTONE SST-SOB03 (SOB03). Designed for chassis’ requiring installation of a slim optical drive.
Ultra HD Blu-ray playback
The Intel Software Guard Extensions (Intel SGX) feature is a requirement for the CPU and motherboard firmware to play DRM (digital rights management) protected content on Ultra HD Blu-ray movie discs on a Windows platform.
NoteIntel SGX has been removed from Intel 11th generation and newer CPUs, and support for SGX may be removed on new versions of Intel drivers or utility programs such as Intel SGX and Intel Management Engine drivers and firmware in the future. Such changes could cause these platforms to lose support for Ultra HD Blu-ray movie disc playback.
- Blu-ray / DVD / CD read and write
- Convenient slot loading design

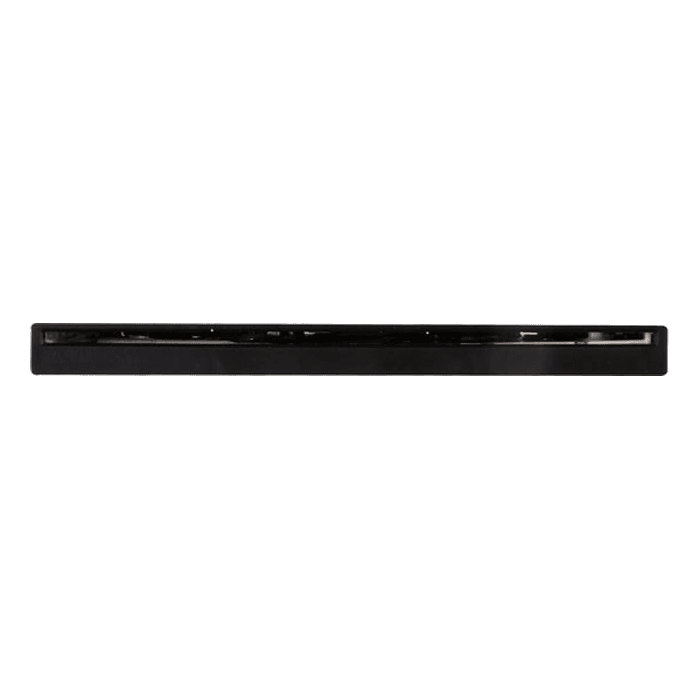

- Includes two front bezels for 9.5mm or 12.7mm height slots
- Designed for chassis’ requiring installation of a slim optical drive
- Maximum 150 Mbyte/s data transfer speed and stability with SATA interface
Model No. | SST-SOB03 | |
Power requirement | DC 5V ± 0.25V, 1800mA (Max.) | |
Max. Write Speed | ||
CD-R | Max.24X CAV | |
CD-RW | 4X CLV | |
High Speed CD-RW | 10X CLV | |
Ultra Speed CD-RW | Not Support | |
DVD-R | Max.8X CAV | |
DVD-R DL | Max.4X Zone CLV | |
DVD-RW | Max.6X Zone CLV | |
DVD+R | Max.8X CAV | |
DVD+R DL | Max.4X Zone CLV | |
DVD+RW | Max.8X Zone CLV | |
DVD-RAM | 3X-5X PCAV ( 4.7GB) | |
BD-R (SL/DL) | Max.6X CAV | |
BD-RE (SL/DL) | 2X CLV | |
BD-R (TL/QL) | 2X CLV | |
BD-RE (TL) | 2X CLV | |
Max. Read Speed | ||
DVD-ROM | 8x CAV | |
CD-ROM | 24x CAV | |
BD-ROM | 2.0x CLV(for Video) / Max 6X CAV(for Data) | |

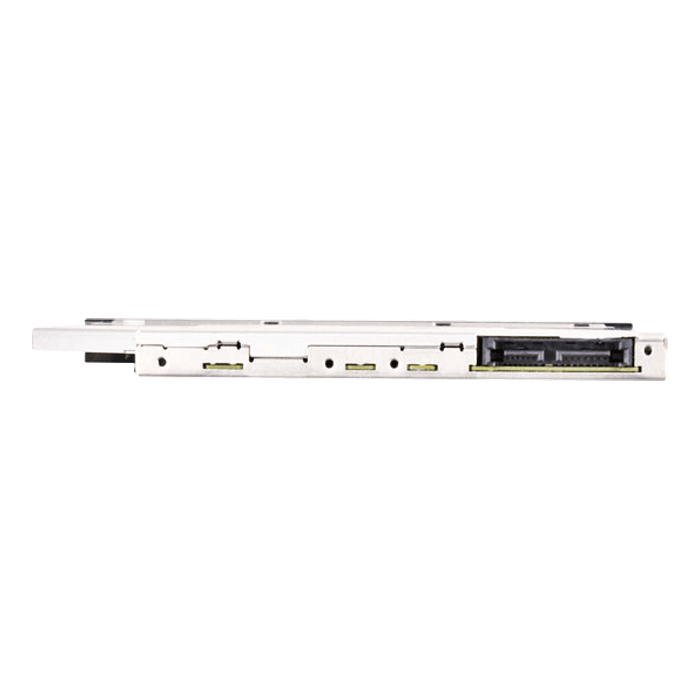

Interface | SATA interface (150 Mbyte/s). | |
Buffer memory | 2MB. | |
Power Supply | 5V DC from PC’s power supply | |
Access speed | ||
CD-ROM | 180ms (Typ.) | |
DVD-ROM SL | 190ms (Typ.) | |
BD-ROM SL | 300ms (Typ.) | |
Eject | Soft Eject | |
Temperature |
Operating guarantee : 5~50 ? Non operating : -20~60 ? |
|
Humidity |
Operating guarantee : 10~80% RH Non operating : 5~90% RH |
|
MTBF | 60,000hr (Duty : 20%) | |
Net weight | 140±10g | |
Dimension |
128mm (W) x 9.5mm (H) x129mm (D) (without bezel) 5.04" (W) x 0.37" (H) x 5.08" (D) (without bezel) |
