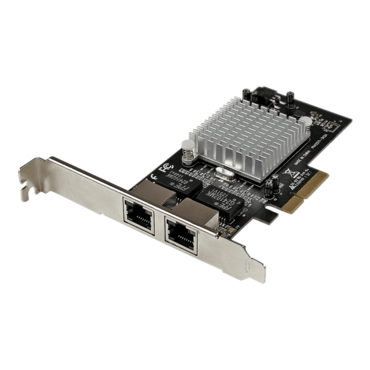

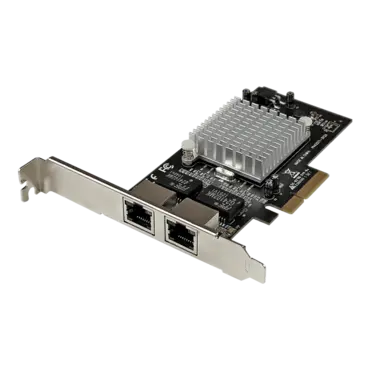

ST2000SPEXI, 1Gbps, 2xRJ45, PCIe Network Adapter
Quantity:
- SKU: 8099112
- Manufacturer: STARTECH.COM
- MPN: ST2000SPEXI
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$170.71
- Two 10/100/1000Mbps compatible RJ-45 Ethernet ports
- Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3ad (link aggregation) and supports IEEE 802.1Q VLAN tagging
- Jumbo Frame support up to 9k bytes
- Teaming Support
- Supports Checksum Offload (IP, TCP, UDP), Transmit Segmentation Offload (TCP, UDP) and Large send Offload
- Wake-on-LAN / Remote Wake-up support
- Configured with standard profile bracket, low profile/half-height bracket included
- Supports Intel® Virtualization Technology (VT-c, VMDq, SR-IOV)
- Four-lane (x4) PCI Express compatible with x4, x8 and x16 PCIe slots
- Compatible with PCI Express Base Specification 2.1 (backward compatible with 1.0a/1.1)
| Warranty Information | Warranty | 2 Years |
| Connector(s) | 1 - Connector Type(s) | PCI Express x4 |
| 2 - External Ports | RJ-45 | |
| Environmental | Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) | |
| Humidity | 5~85% RH | |
| Hardware | Ports | 2 |
| Interface | RJ45 (Gigabit Ethernet) | |
| Bus Type | PCI Express | |
| Card Type | Standard Profile (LP bracket incl.) | |
| Port Style | Integrated on Card | |
| Industry Standards | PCI Express Base Specification 2.1 | |
| Chipset ID | Intel - I350-AM2 | |
| Indicators | 2 - LED Indicators | 10/100/1000 Mbps Indicator |
| Link / Activity | ||
| Packaging Information | Package Height | 1.1 in [29 mm] |
| Package Length | 5.7 in [14.4 cm] | |
| Shipping (Package) Weight | 5.8 oz [165 g] | |
| Package Width | 6.8 in [17.2 cm] | |
| Performance | Maximum Data Transfer Rate | 2000 Mbps (full-duplex), 1000 Mbps (half-duplex) |
| Compatible Networks | 10/100/1000 Mbps | |
| Auto MDIX | Yes | |
| Full Duplex Support | Yes | |
| Jumbo Frame Support | 9K max. | |
| Promiscuous Mode | Yes | |
| MTBF | 432,400 hours | |
| Supported Protocols | IEEE 802.3ad (link aggregation), IEEE 1588 (time sync) / 802.1AS, IEEE 802.1q (VLAN tagging) | |
| Physical Characteristics | Weight of Product | 2.8 oz [80 g] |
| Material | Steel | |
| Product Length | 2.6 in [67 mm] | |
| Product Width | 0.7 in [19 mm] | |
| Product Height | 4.8 in [12.1 cm] | |
| Software | OS Compatibility |
Windows® 7, 8, 8.1, 10 Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019 Linux 2.4.x to 4.11.x LTS versions only |
| Special Notes / Requirements | System and Cable Requirements | Available PCI Express x4 or higher (x8, x16) slot |
| What's in the Box | 1 - Included in Package | 2 Port Network Card |
| Low Profile Bracket | ||
| Driver CD | ||
| Instruction Manual |
