Leap to Next Level Productivity. Solid and Feature-Rich for Every Professional

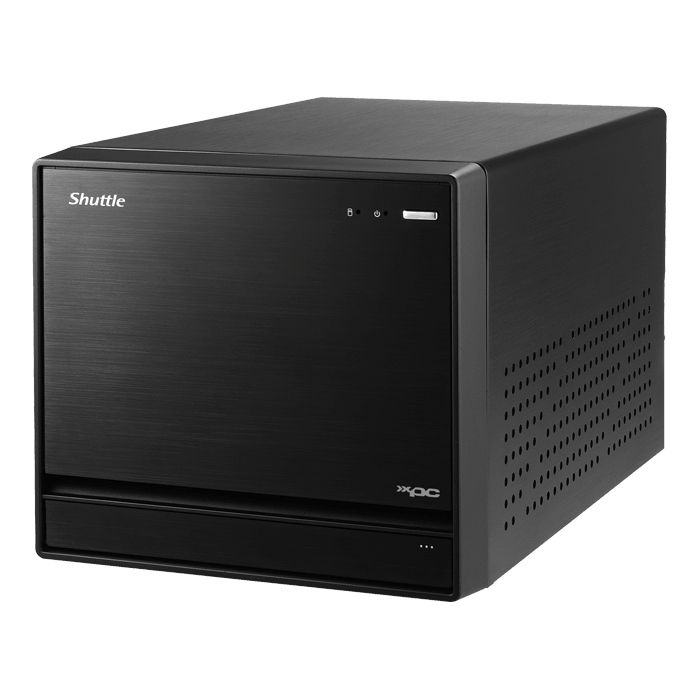

The Shuttle latest XPC SW580R8 supports Intel® Xeon® W series processors and up to 128GB of DDR4-3200 ECC memory to provide professionals with high-performance computing so as to maintain its stability and effectively reduce the numbers of the errors rate. Despite SW580R8 being only one-third of a traditional tower, there is enough room to accommodate up to 8 x 2.5-inch SSD, PCI-E 4.0 x16 expansion slot, dual 2.5GbE, and dual 1GbE, plus 12 USB interfaces (including 4 x USB 3.2 Gen2 and one Type-C). Its flexible expandability allows diverse applications. Thanks to an exclusive I.C.E 2 cooling technology, SW580R8 runs highly reliable and meets the long-run demands of computing work. The model equips with an 80 Plus Gold 500W power supply for guaranteed energy efficiency and energy saving. Overall, SW580R8 is suitable for professionals and enterprises to apply it as a high workloads workstation, business server, and more.
FORM FACTOR | Shuttle Form factor |
---|---|
PROCESSOR |
Support Intel® 10th/11th generation Core™ i3/i5/i7, Pentium®, Celeron®125W LGA1200 CPU Support Intel Intel® Xeon® W-1000 series 125W CPU |
CHIPSET | Intel W580 express chipset |
MEMORY | (4) DDR4 3200 MHz(11th CPU only) / 2933MHz / 2666MHz support, dual channel up to 128GB (32GB*4) |
VIDEO OUTPUT |
(1)HDMI + (2)DisplayPort , triple independent display 4K/60Hz playback (With Integrated Graphic in CPU) |
AUDIO |
Realtek ALC662/ALC897 5.1 Channel high definition audio |
ETHERNET |
Intel i211AT + i219 10Mb/s,100Mb/s,1Gb/s operation Realtek RTK8125b (2) 10Mb/s,100Mb/s,1Gb/s , 2.5Gb/s operation Support Wake-On-LAN function |
STORAGE INTERFACE | SATA 6.0Gb/s interface |
ONBOARD CONNECTORS |
(2)4 Pin fan connector (4)SATA 6 connector (1) ATX main power (2*10) (1) ATX 12V power (2*2) (1) 1X4 USB 2.0 header (1) RS232 header (1) VGA header (1) Front AUDIO header (2) Front USB FFC header |

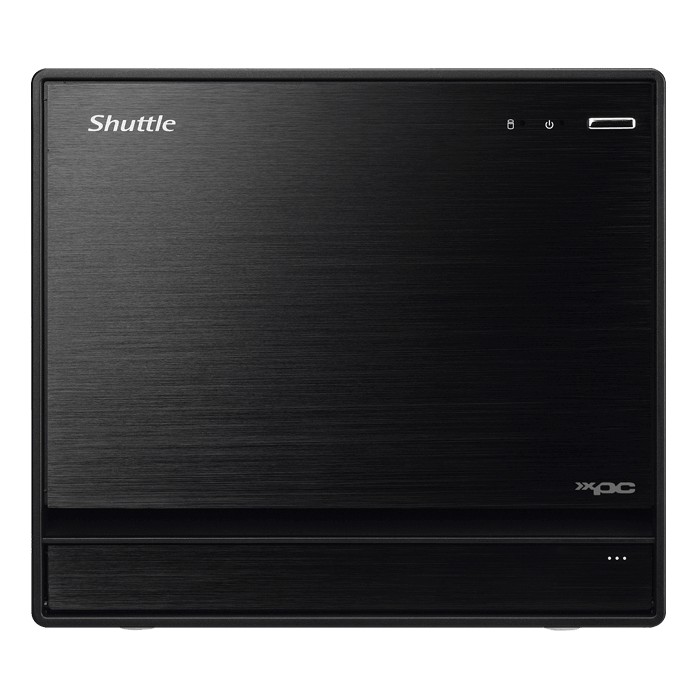

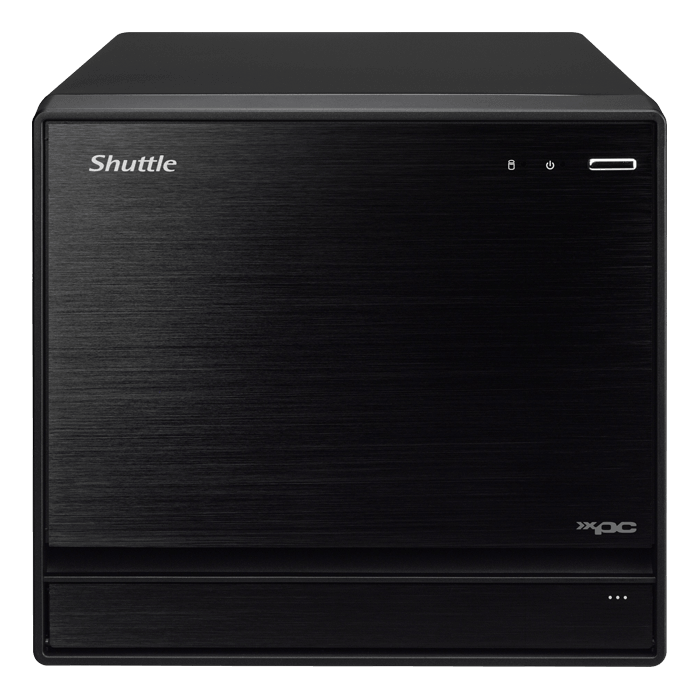

FRONT PANEL |
(3) USB 3.2 Gen 1 Port (1) USB 3.2 Gen 1 type-C Port (1) Microphone-In (1) SPK-Out (1) Power LED (1) HDD LED (1) Power-On button |

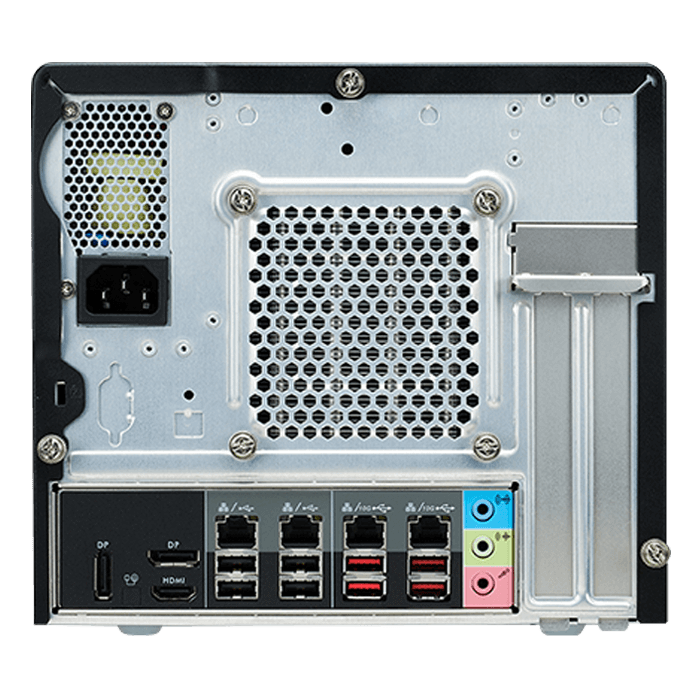

BACK PANEL |
(4) USB 2.0 Port (4) USB 3.2 Gen 2 Port (4)LAN (1)HDMI port (2)Display port (1)Audio Mic in (1)Audio Line in (1)Audio SPK out (1) 4-pin connector (supports external power/clear CMOS buttons) (3)Antenna Hole |
DRIVE BAYS | (4) 3.5"/2.5" HDD bay |
DIMENSIONS | 332(L) x 216(W) x 198(H) mm |
POWER |
80 Plus 500W power supply Input: AC100V-240V,60Hz-50Hz,8A-4A Support 80 PLUS Gold |
ACCESSORIES |
XPC Multi-Language quick guide XPC DVD Driver SATA Cable CPU Thermal Grease Power cord Screw package |
EXPANSION SLOT |
(1) PCI-E X16 Gen 4.0 slot (1) PCI-E X4 Gen 3.0 slot (2) M.2 2280 type M key socket *10th Gen CPU: One supports SATA & NVMe, another supports SATA only *11th Gen CPU: Both support SATA & NVMe (1) M.2 2230 type E key socket |
OS SUPPORT |
Windows 10/11 64bit OS Linux |
CERTIFICATION |
Safety certification : CB , BSMI , cTUVus EMI certification : FCC , CE , BSMI , RCM , VCCI |
OPERATING TEMPERATURE | 0°C~40°C |
