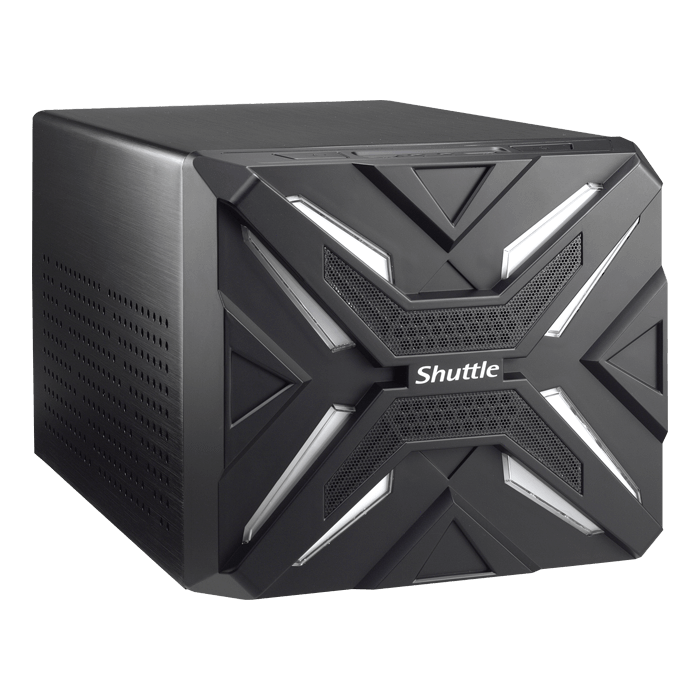

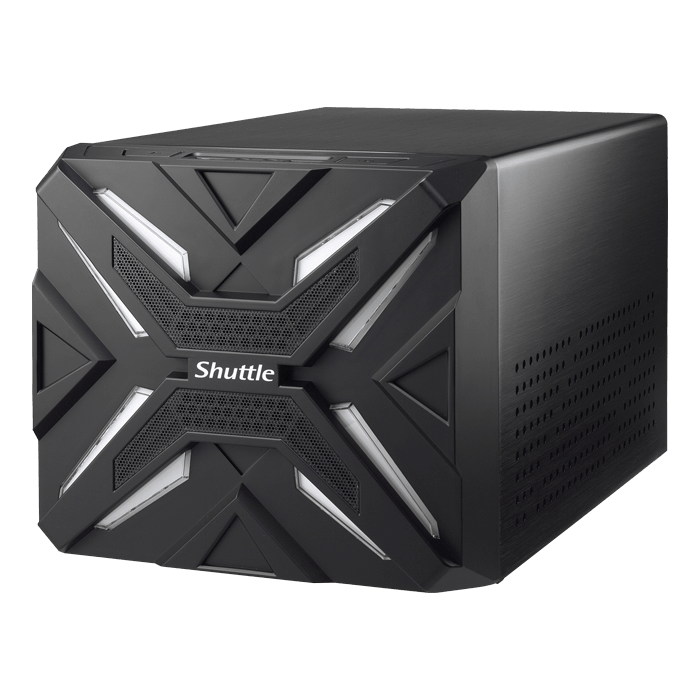

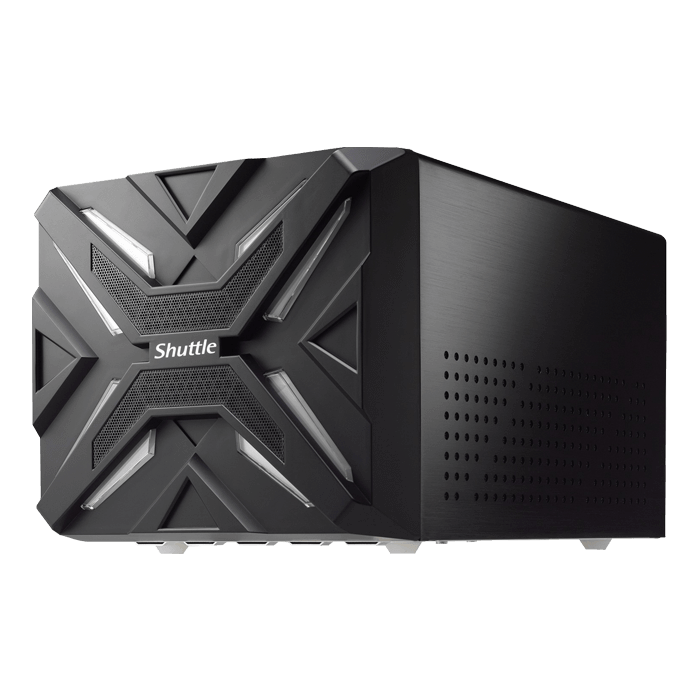

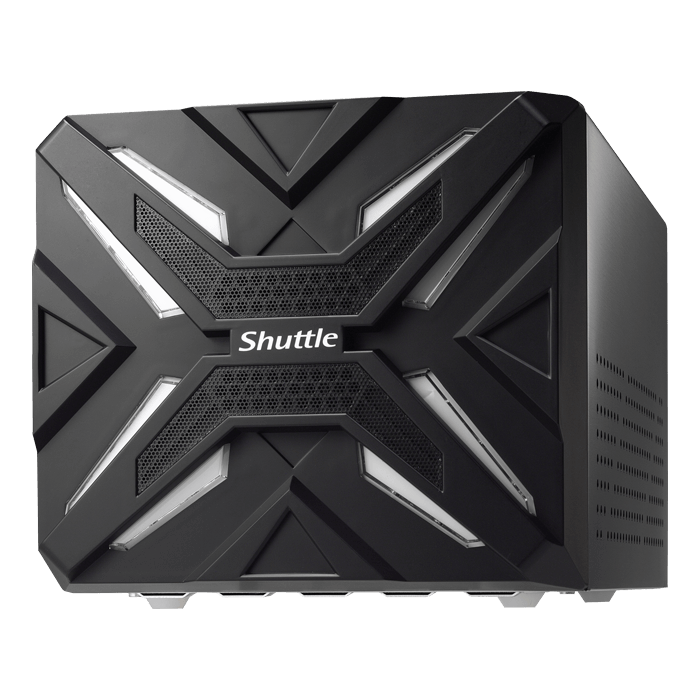

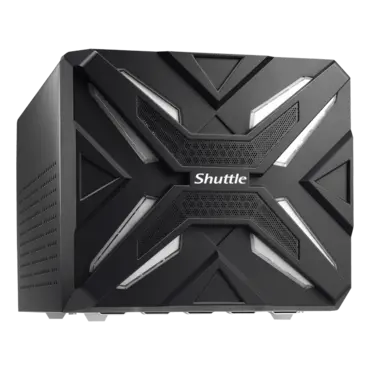

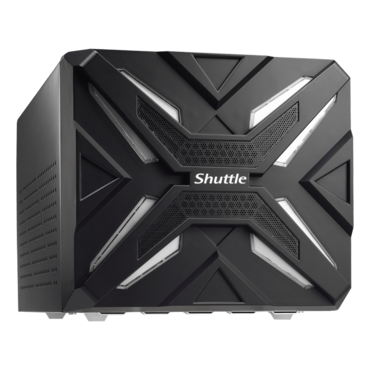

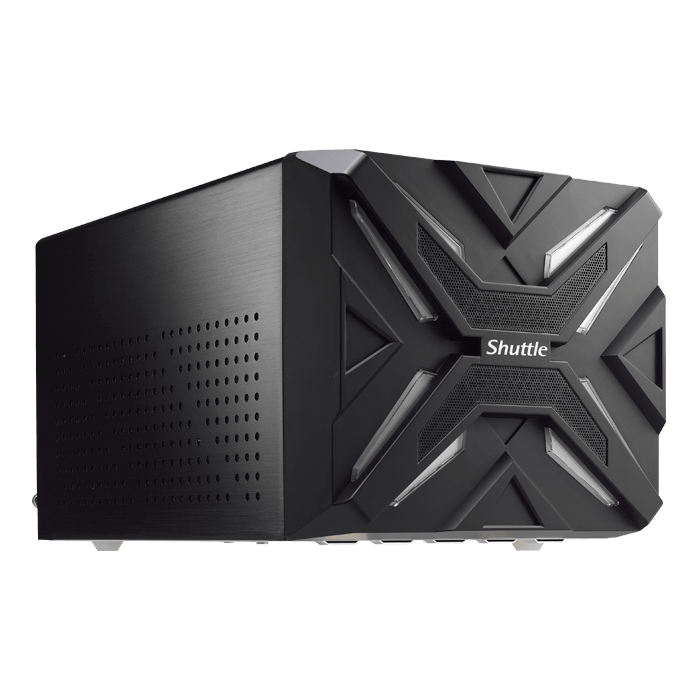

SZ270R9 Black Mini PC Barebone, Intel® Core i3 / i5 / i7, Intel® Z270, DDR4-2400 DIMM 64GB / 4, SATA / 4, USB 3.0 / 6, USB 2.0 / 4, DP / 2, HDMI, GbLAN, 500W PSU - TAA Compliant
Quantity:
- SKU: 11701897
- Manufacturer: SHUTTLE
- MPN: SZ270R9
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$278.40
| FORM FACTOR | Shuttle Form factor |
|---|---|
| PROCESSOR | Support Kabylake/Skylake 95W Core i3/i5/i7 LGA 1151 CPU processor |
| CHIPSET | Intel Z270 Express chipset |
| MEMORY | (4) DDR4 2133/2400MHz support dual channel up to 64GB (16GB*4) |
| VIDEO OUTPUT | Integrated in CPU |
| AUDIO | Realtek ALC662 5.1 channel High Definition Audio |
| ETHERNET | Intel Chip i211*2 10Mb/s,100Mb/s,1Gb/s operation Support Wake-ON-LAN function |
| STORAGE INTERFACE | SATA 6Gb/s |
| ONBOARD CONNECTORS | (2) 4 Pin fan connector (4) SATA 6.0 connectors (1) ATX main power (2*10) (1) ATX 12V power (2*2) (1) RS232 header (1) Front USB3.0 (1) Front AUDIO header (1) 2x5 pin USB header |

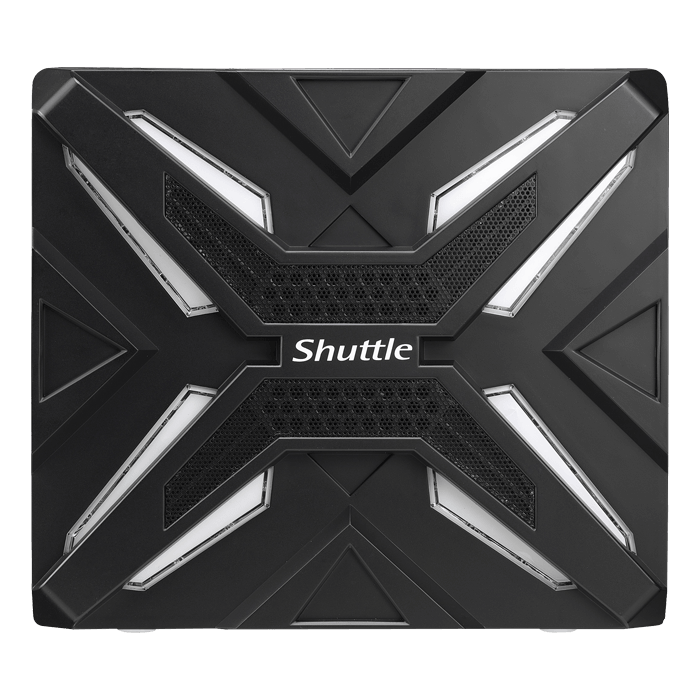

| FRONT PANEL | (2) USB 3.0 Port (1) External microphone jack (1) External headphone jack Power button Power led Turbo button Turbo led |

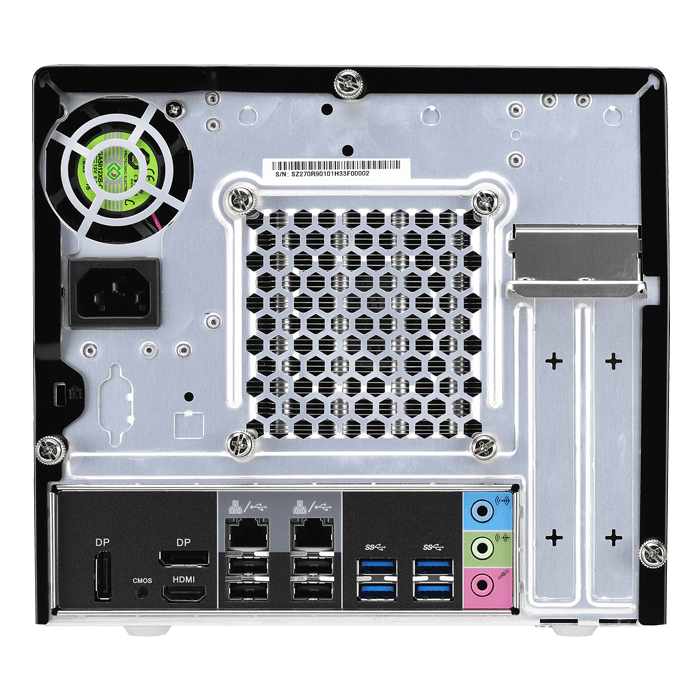

| BACK PANEL | (4) USB 2.0 Port (4) USB 3.0 Port (1) Line in jack (1) Line out jack (1) Audio MIC in (1) HDMI+DisplayPort (2) LAN (1) CMOS clear button (2) DisplayPort (3) Antenna hole |
| DRIVE BAYS | (4) 3.5" HDD bay *Support up to 8*2.5" HDD by using 4*PHD3 HDD rack when system extra SATA or RAID card |
| DIMENSIONS | 332(L) x 216(W) x 198(H) mm |
| POWER | 80 Plus 500W power supply Input:100 - 240V AC Support 80 PLUS silver |
| ACCESSORIES | XPC Multi-Language quick guide XPC DVD Driver SATA cable x4(For HDD) CPU Thermail Grease Power cord Screw package |
| EXPANSION SLOT | (1) PCI-E X16 slot (1) PCI-E X4 slot (2) M.2 2280 type M socket (1) M.2 2230 type A,E key socket |
| OS SUPPORT | Windows 7 & Embedded series O.S Windows 10 & Embedded series O.S Linux |
