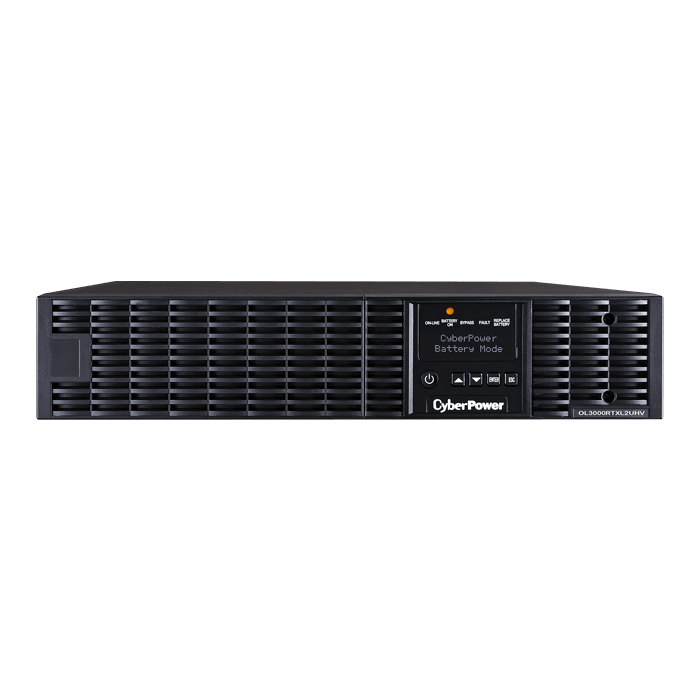

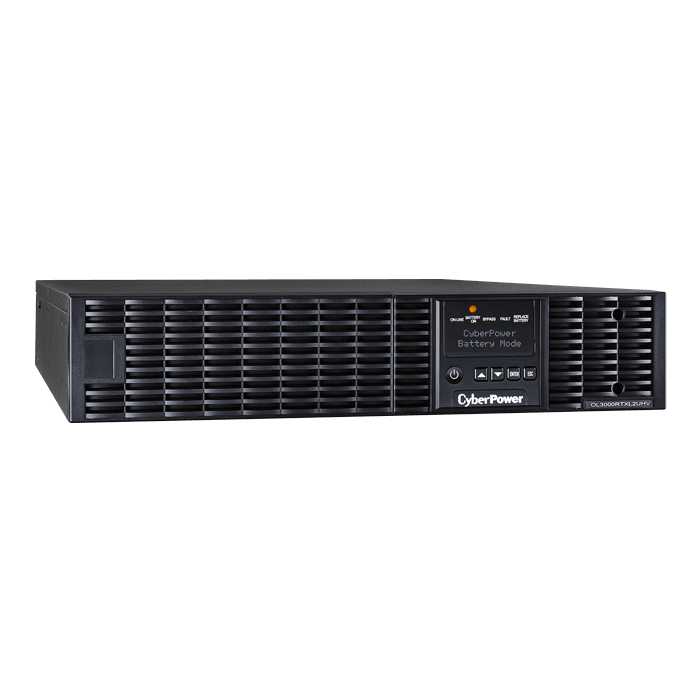

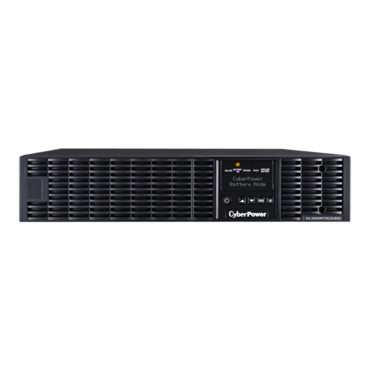

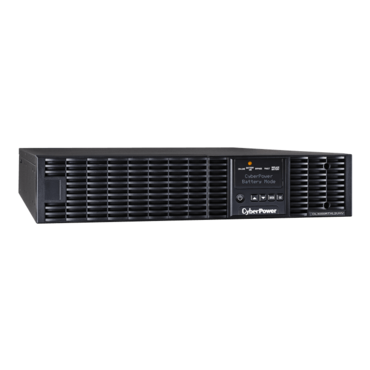

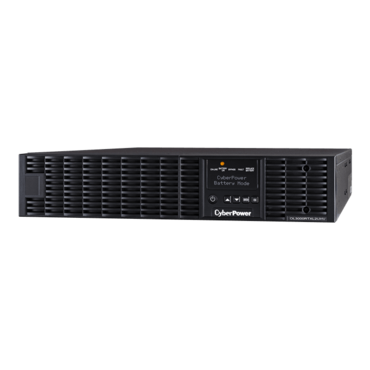

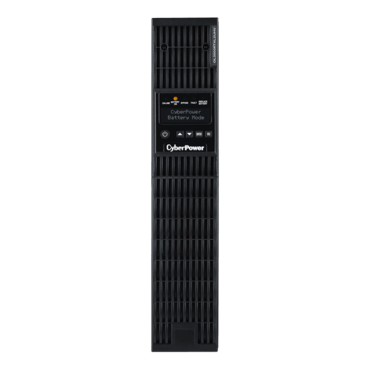

Smart App Online OL3000RTXL2UHVN, LCD, 3000 VA/2700 W, Sine Wave, 2U Rackmount/Tower UPS
Quantity:
- SKU: 12703461
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: OL3000RTXL2UHVN
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$2,569.95
- Capacity: 3000 VA / 2700 W
- Power Factor (PF): 0.9
- Topology: Double-Conversion
- Waveform: Sine Wave
- Output: 200, 208, 220, 230, 240 V ±2% (configurable)
- Plug type & cord: NEMA L6-20P, 10 ft. cord
- Outlet types: 2 × NEMA L6-20R, 1 × NEMA L6-30R
- Monitoring & Management: USB, Serial, RMCARD205, Relay, EPO
- Data line surge protection: Telephone, Network
- Management software: PowerPanel® Business Edition
- Warranty: 3 year
| General | |
| Energy Saving | Yes, ECO Mode Efficiency >97% |
| UPS Topology | Double Conversion |
| Battery | |
| Battery Quantity | 6 |
| Battery Size | 12V/9Ah |
| Battery Type | Sealed lead acid |
| Extended Battery Option | BP72V60ART2U |
| Hot Swappable | Yes |
| Replacement Battery Cartridge | RB1290X6A |
| Replacement Battery Cartridge Quantity | 1 |
| Runtime at Full Load | 3.5 minutes |
| Runtime at Half Load | 11 min |
| Smart Battery Management (SBM) Mode | Yes |
| Typical Recharge Time | 4 h (0% to 90%) |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 43.18 x 8.89 x 59.99 (cm) |
| Physical Dimensions – (WxHxD) (in) | 17 x 3.5 x 23.62 (in) |
| Physical Dimensions – (WxHxD) (mm) | 432 x 89 x 600 (mm) |
| Weight (kg) | 30.93 |
| Weight (lb) | 68.2 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 36.74 |
| Shipping – Weight (lb) | 81 |
| Shipping Dimensions – (WxHxD) (cm) | 55.88 x 23.47 x 90.86 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 22 x 9.24 x 35.77 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 558.8 x 234.7 x 908.56 (mm) |
| Input | |
| Cold Start | Yes |
| Cord Length (ft) | 10 |
| Cord Length (m) | 3 |
| Frequency Range | 40 – 70 Hz (auto sensing) |
| Input Power Factor | 0.99 |
| Input Voltage Range |
120 – 139 VAC for 0–60% load 140 – 159 VAC for 0–70% load 180 – 189 VAC for 0–90% load 190 – 280 VAC for 0–100% load |
| Plug Type | NEMA L6-20P |
| Output | |
| Bypass | Internal Bypass (Automatic and Manual) |
| Crest Factor | 3:1 |
| Harmonic Distortion | THD < 3% at Linear Load, < 5% at Non-linear Load |
| On Battery Frequency | 50/60 Hz ± 0.25 Hz (auto-sensing or configurable) |
| On Battery Voltage | 200, 208, 220, 230, 240 V ±2% (configurable) |
| On Battery Waveform | Sine wave |

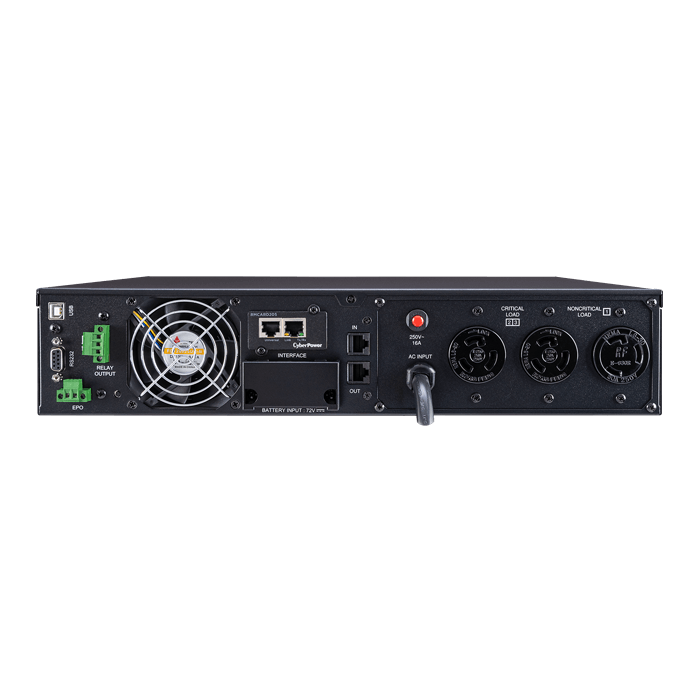

| Outlet Type | NEMA L6-20R (2), NEMA L6-30R (1) |
| Outlets – Total | 3 |
| Overload Protection |
Line Mode: 105% to 125% load for 1 min 126% to 150% load for 10 sec Battery Mode:105% to 130% load for 10 sec 131% to 150% load for 2 sec |
| Rated Power Factor | 0.9 |
| Transfer Time | 0 ms |
| VA | 3,000 VA |
| Watts | 2,700 W |
| Surge Protection & Filtering | |
| EMI/RFI Filtration | Yes |
| Phone RJ11 / Ethernet RJ45 | 1-In / 1-Out (combo) |
| Surge Protection | 1335 Joules, per IEC 61000-4-5 Level 3 |
| Management & Communications | |
| Audible Alarms |
Battery Mode Battery Low Overload UPS Fault |
| Cables Included | USB cable, Serial cable, Phone cable |
| Dry Contacts | Yes |
| EPO Port | Yes |
| Expansion Slot | RMCARD205 pre-installed |
| HID Compliant USB Port | Yes |
| LCD Control Panel | Supports: Multi-Language Interface, 25 Types of Function Setting, 24 Types of Read Out and 5 Event Logs. |
| LED Indicators |
Power On (white) Line Mode (green) Battery Mode (yellow) Bypass Mode (yellow) Fault (red) Replace Battery (red) |
| Removable LCD Control Panel Option | Yes – Requires a separate DB26 Cable |
| Rotatable LCD Control Panel Option | Yes |
| Serial Port | Yes |
| Software | PowerPanel® Business Edition |
| Upgradeable firmware | Yes |
| Physical | |
| Color | Black |
| Enclosure Construction | Steel |

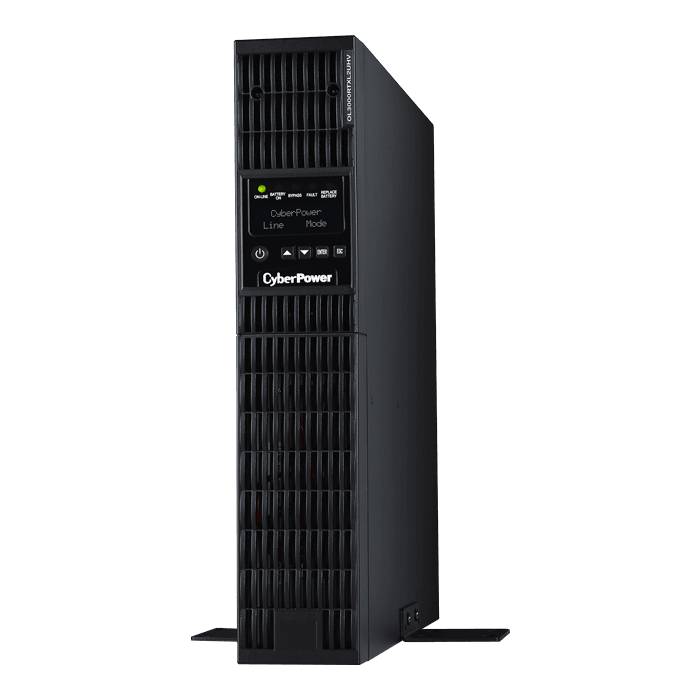

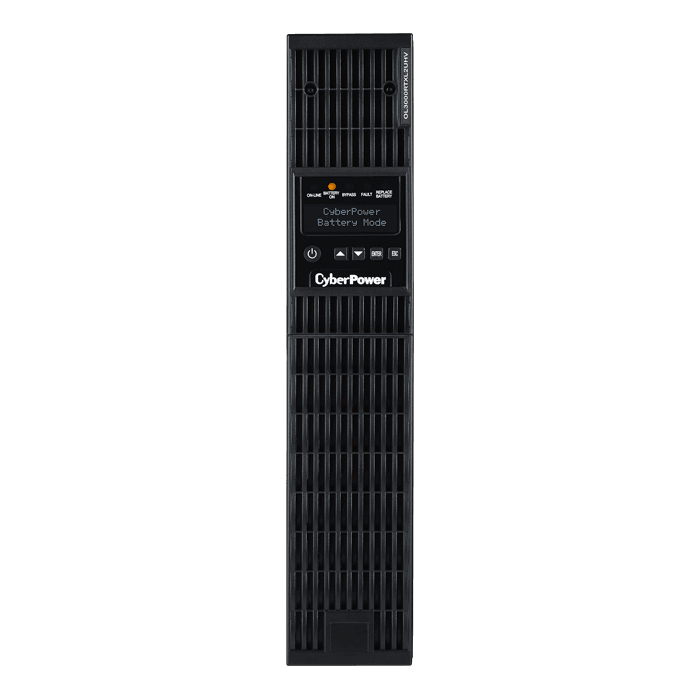

| Form Factor | Rack/Tower |
| Mounting Hardware | Included |
| Rack Size | 2U |
| Weight (lbs) | 68.2 |
| Environmental | |
| Audible noise at 1m from surface of unit | 38 to 55 dBA (0 to 100% load) |
| ECO Mode Thermal Dissipation (100% Load) | 207 BTU/h |
| Operating Elevation | 0 – 10,000 ft (0 – 3,000 m) |
| Operating Relative Humidity | 0 – 90% (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Storage Elevation | 0 – 50,000 ft (0 – 15,000 m) |
| Storage Relative Humidity | 0 – 95% (non-condensing) |
| Storage Temperature | -4°F to 113 °F (-20°C to 45 °C) |
| UPS Online Thermal Dissipation (100% load) | 790 BTU/hr |
| Certifications | |
| Environmental | ROHS Compliant |
| Safety |
UL 1778 5th Ed. CSA C22.2 NO.107.3-05 FCC Part 15 Class A |
| Warranty | |
| Connected Equipment Guarantee | Lifetime |
| Extended 2-Year Warranty | WEXT5YR-U4B |
| Product Warranty | 3 Years Limited |
