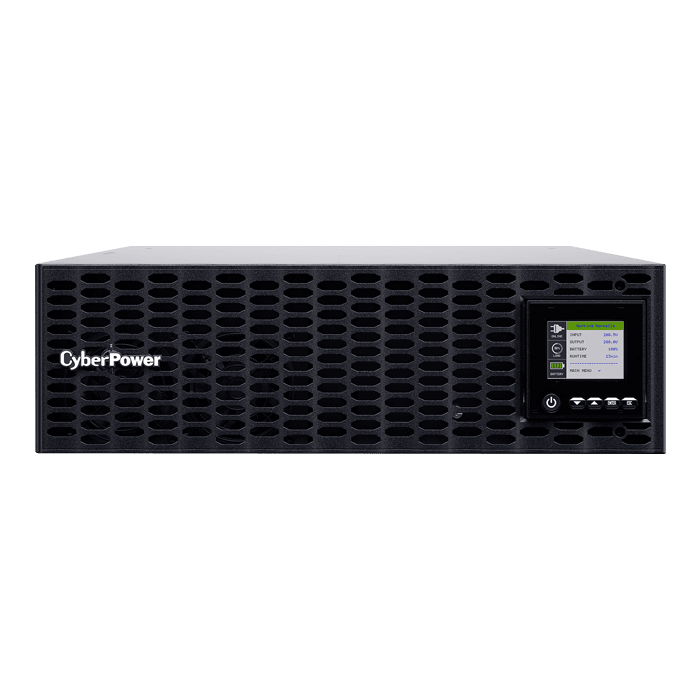

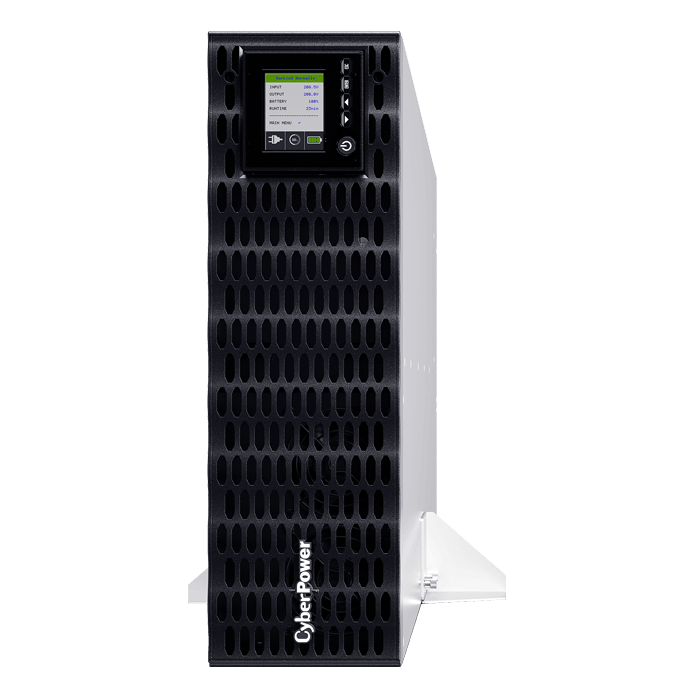

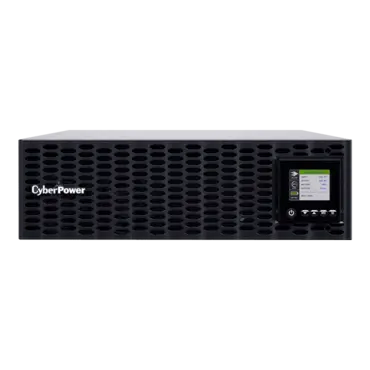

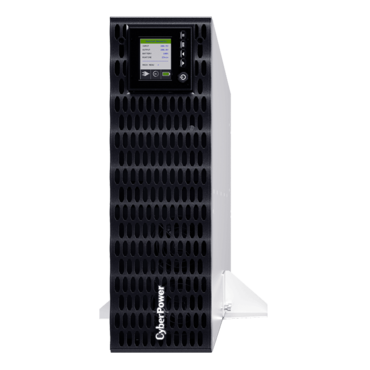

Smart App Online OL5KRTHDL, LCD, 5000 VA/5000 W, Sine Wave, 3U Rackmount/Tower UPS
Quantity:
- SKU: 17502715
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: OL5KRTHDL
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$6,729.95
| General | |
| Energy Saving | ECO Mode Efficiency >96% |
| Energy Star Certified | Yes |
| UPS Topology | Online Double Conversion |
| Battery | |
| Battery Equalization Technology | Yes |
| Battery Quantity | 12 |
| Battery Size | 12 V / 6 Ah |
| Battery Type | Sealed Lead-Acid Battery |
| Extended Battery Module | BP144VL2U01 |
| Field-serviceable Battery | Replaceable by qualified technician |
| Hot Swappable | Yes |
| Replacement Battery Cartridge | (1) RB1260X12 |
| Runtime at Full Load | 3.1 min |
| Runtime at Half Load | 7.9 min |
| Smart Battery Management (SBM) Mode | Yes |
| Typical Recharge Time | 4 Hours (0% to 90% charged) |
| Input | |
| Backfeed Protection | Yes |
| Circuit Breaker | 50 A |
| Cold Start | Yes |
| Cord Lengtd | 10 ft (3.0 m) |
| Input Frequency Range | 40 Hz – 70 Hz |
| Input Plug Type |
Hardwire Terminal (NEMA L6-30P power cord included) NEMA L6-30P |
| Input Power Factor | 0.99 |
| Input Voltage Range |
120 VAC – 139 VAC for 0–25% Load 140 VAC – 159 VAC for 0-50% Load 160 VAC – 179 VAC for 0–75% Load 180 VAC – 280 VAC for 0–100% Load |
| Nominal Input Voltage | 200 – 240 VAC |
| Output | |
| Bypass | Internal Bypass (Automatic and Manual) |
| Crest Factor | 3:1 |
| ECO Mode Voltage Regulation | ±10%, ±15% (configurable) |
| Harmonic Distortion |
< 3% at Linear Load < 5% at Non-Linear Load |
| Maintenance Bypass | Yes |
| On AC WaveForm | Sine Wave |
| On Battery Frequency | 50/60 Hz ± 0.25Hz (auto-sensing or configurable) |
| On Battery Voltage | 200/208/220/230/240 VAC ± 2% (configurable) |
| On Battery Waveform | Sine Wave |

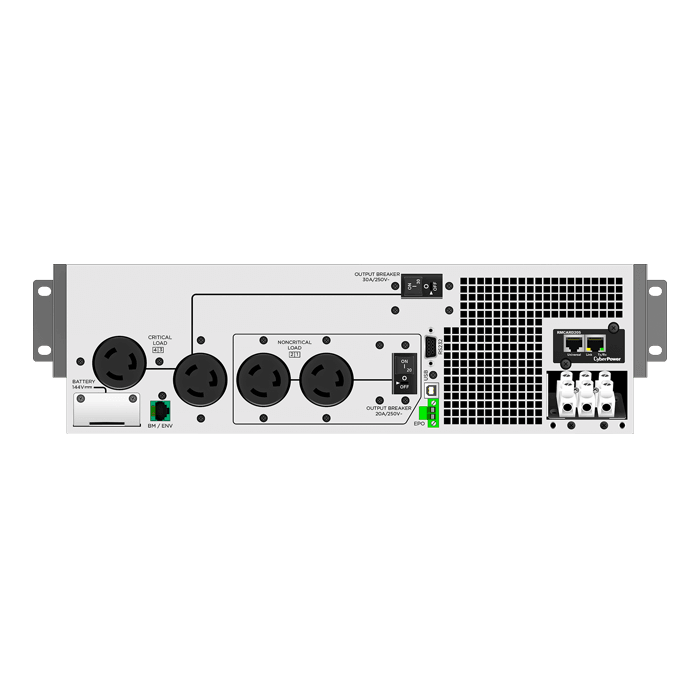

| Outlet Type |
2 – NEMA L6-20R 2 – NEMA L6-30R |
| Outlets – Total | 4 |
| Output Power Factor | 1 |
| Short Circuit Protection |
UPS Output Cut off Immediately Input Fuse / Circuit Breaker Protection |
| Typical Transfer Time | 0 ms |
| USB Charge Port | No |
| VA | 5000 VA |
| VA by Input Type |
5,000 (5 kVA) →w/ Hardwire Terminal 5,000 (5 kVA) – 240VAC →w/ Power cord 5,000 (5 kVA) – 230VAC →w/ Power cord 5,000 (5 kVA) – 220VAC →w/ Power cord 4,850 (4.85 kVA) – 208VAC →w/ Power cord 4,500 (4.5 kVA) – 200VAC →w/ Power cord |
| Watts | 5000 W |
| Watts by Input Type |
5,000 (5 kW) →w/ Hardwire Terminal 5,000 (5 kW) – 240VAC →w/ Power cord 5,000 (5 kW) – 230VAC →w/ Power cord 5,000 (5 kW) – 220VAC →w/ Power cord 4,850 (4.85 kW) – 208VAC →w/ Power cord 4,500 (4.5 kW) – 200VAC →w/ Power cord |
| Surge Protection & Filtering | |
| EMI/RFI Filtration | Yes |
| Surge Suppression (Joules) | 2430 J |
| Management & Communications | |
| Audible Alarms |
Battery Mode Low Battery Overload UPS Fault |
| Dry Contacts | No |
| Emergency Power Off (EPO) Port | Yes |
| HID Compliant USB Port | Yes |
| LCD | Multifunction LCD |
| LED Indicators | Power On (White) |
| Management Cable | USB Cable |
| Removable LCD Control Panel Option | No |
| Rotatable LCD Control Panel Option | Yes |
| SNMP / HTTP Remote Monitoring | Yes – RMCARD205 pre-installed |
| Serial Port | 1 Serial |
| Software (Free Download) | PowerPanel® Business |
| Physical | |
| Chassis Color | Unpainted |
| Form Factor | Rack / Tower |
| Front Panel Color | Black |
| Material of Construction | Metal |
| Mounting Hardware | Yes |
| Rack Height | 2U |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 43.18 x 8.64 x 71.88 (cm) |
| Physical Dimensions – (WxHxD) (in) | 17 x 3.4 x 28.3 (in) |
| Physical Dimensions – (WxHxD) (mm) | 432 x 86 x 719 (mm) |
| Physical Weight (kg) | 41.91 |
| Physical Weight (lb) | 92.4 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 51.98 |
| Shipping – Weight (lb) | 114.6 |
| Shipping Dimensions – (WxHxD) (cm) | 59.94 x 33.53 x 109.98 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 23.6 x 13.2 x 43.3 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 599.44 x 335.28 x 1099.82 (mm) |
| Environmental | |
| Audible noise at 1m from surface of unit | 43 dBA to 66 dBA (0% to 100% load) |
| Online Thermal Dissipation | 1186 BTU/hr |
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Relative Humidity | 0 – 90 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Storage Elevation | 0 – 50000 ft (0 – 15239 m) |
| Storage Relative Humidity | 0 – 95% (non-condensing) |
| Storage Temperature | -4 – 113 °F (-20 – 45 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety |
UL1778 5td Ed. CSA C22.2 No.107.3-05 FCC Part 15 Class A |
| Warranty | |
| CEG Amount | $300000 |
| Connected Equipment Guarantee | Lifetime |
| Extended Warranty Option | WEXT5YR-U20A |
| Product Warranty | 3 Year Limited Warranty |
