General | |
Current Rating | 30 A |
Over Temperature Protection | Yes |
UPS Topology | Step-Down Transformer |
Input | |
Cord Length | 3 ft (0.9 m) |
Input Frequency Range | 50 Hz – 60 Hz |
Input Plug Type | Hardwire Terminal (NEMA L6-30P power cord included) |
Maximum Input Current | 30A |
Nominal Input Voltage | 208 VAC |
Output | |
Nominal Output Voltage | 120 VAC |

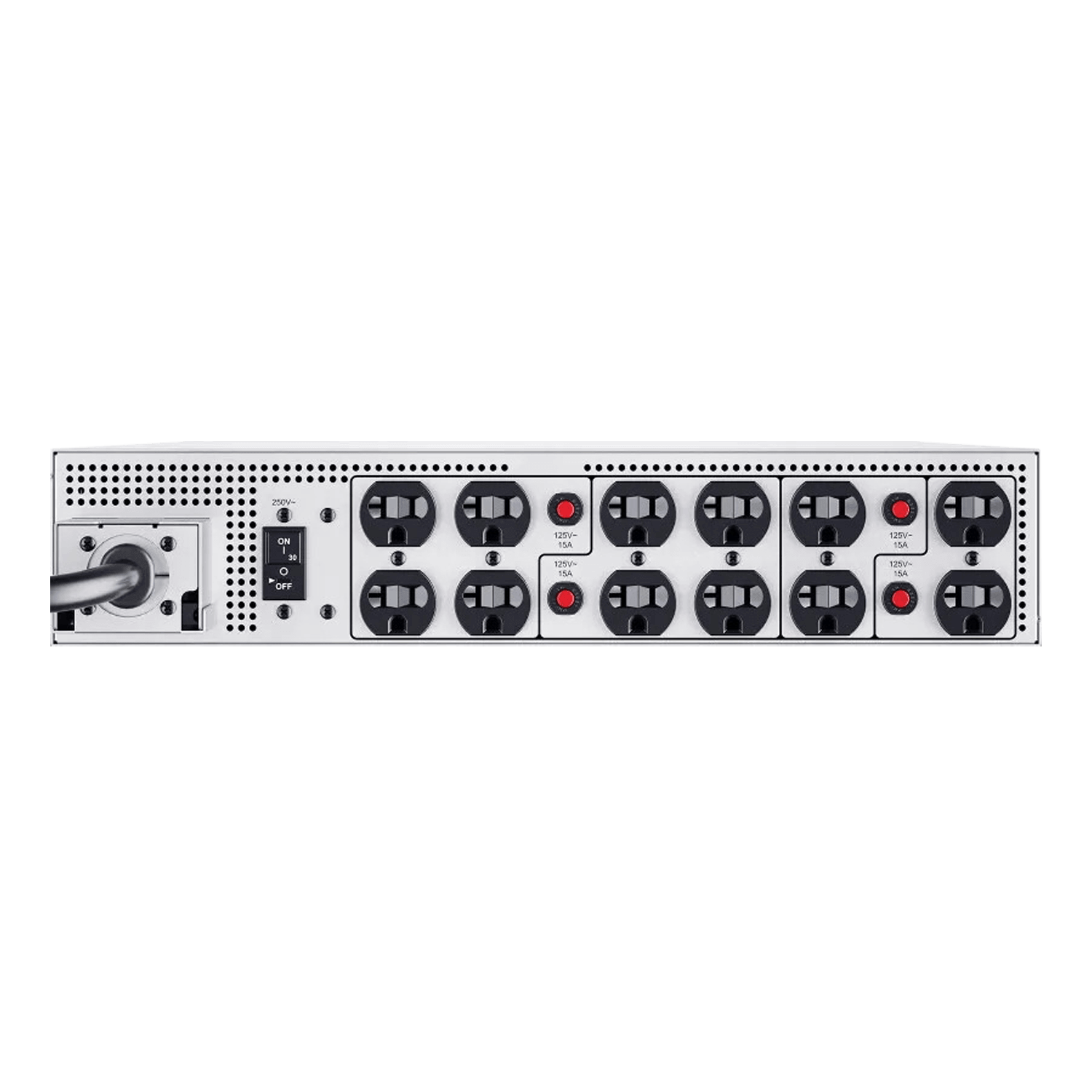

Outlet Type | 12 – NEMA 5-20R |
Outlets – Total | 12 |
Output Frequency | 50/60 Hz (auto-sensing/configurable) |
Overload Protection | Circuit Breaker Protected |
Step Down Thermal Dissipation | 954 BTU/hr |
USB Charge Port | No |
VA | 5000 VA |
Watts | 5000 W |
Physical | |
Color | Silver |
Form Factor | Rackmount |
Material of Construction | Metal |
Mounting Hardware | Yes |
Rack Height | 2U |
Dimensions | |
Physical Dimensions – (WxHxD) (cm) | 43.18 x 8.64 x 59.94 (cm) |
Physical Dimensions – (WxHxD) (in) | 17 x 3.4 x 23.6 (in) |
Physical Dimensions – (WxHxD) (mm) | 432 x 86 x 599 (mm) |
Physical Weight (kg) | 38.01 |
Physical Weight (lb) | 83.8 |
Dimensions – Shipping | |
Shipping – Weight (kg) | 52.48 |
Shipping – Weight (lb) | 115.7 |
Shipping Dimensions – (WxHxD) (cm) | 59.94 x 33.02 x 89.92 (cm) |
Shipping Dimensions – (WxHxD) (in) | 23.6 x 13.0 x 35.4 (in) |
Shipping Dimensions – (WxHxD) (mm) | 599.44 x 330.2 x 899.16 (mm) |
Environmental | |
Audible noise at 1m from surface of unit | 58 dBA |
Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
Operating Relative Humidity | 0 – 90 % (non-condensing) |
Operating Temperature | 32 – 104 °F (0 – 40 °C) |
Storage Elevation | 0 – 50000 ft (0 – 15239 m) |
Storage Relative Humidity | 0 – 95% (non-condensing) |
Storage Temperature | -4 – 113 °F (-20 – 45 °C) |
Compatibility | |
UPS Models | OL3000RTXL2UHV, OL5KRTHD, OL6KRT, OL6000RT3UPDU, OL6KRT3UHW, OL6KRTHD, OL6KRTHW, OL6KRTMB, OL8000RT3U, OL8000RT3UPDU, OL8KRT3UHW, OL8KRTHW, OL8KRTMB, OL10000RT3U, OL10000RT3UPDU, OL10KRT3HW, OL10KRTHW, OL10KRTMB |
Certifications | |
Environmental | RoHS Compliant |
Safety |
UL1778 5th Ed. CSA C22.2 No.107.3-05 |
Warranty | |
Extended Warranty Option | WEXT5YR-ACC2C |
Product Warranty | 3 Year Limited Warranty |
