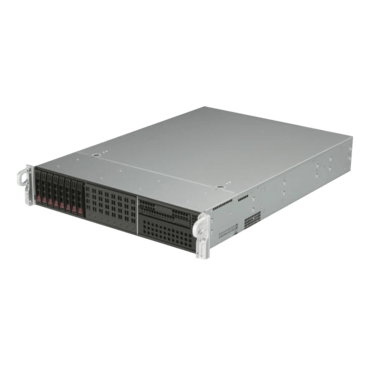

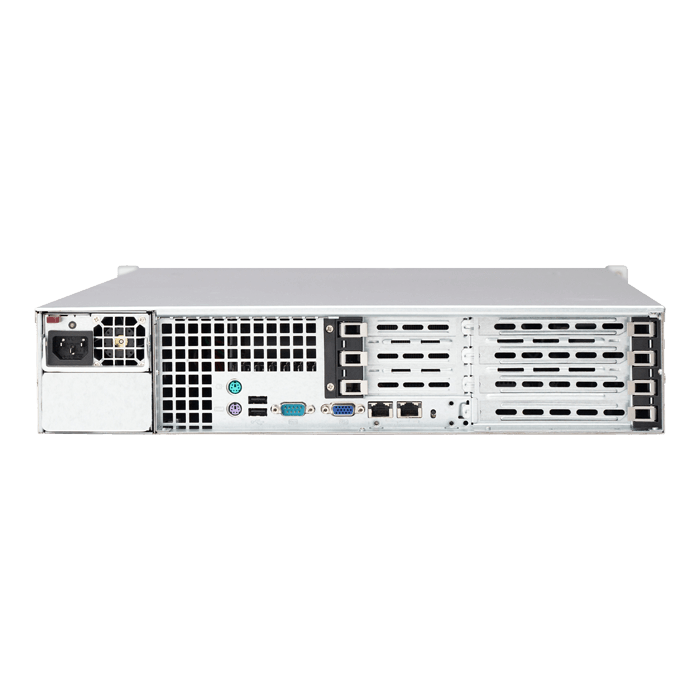

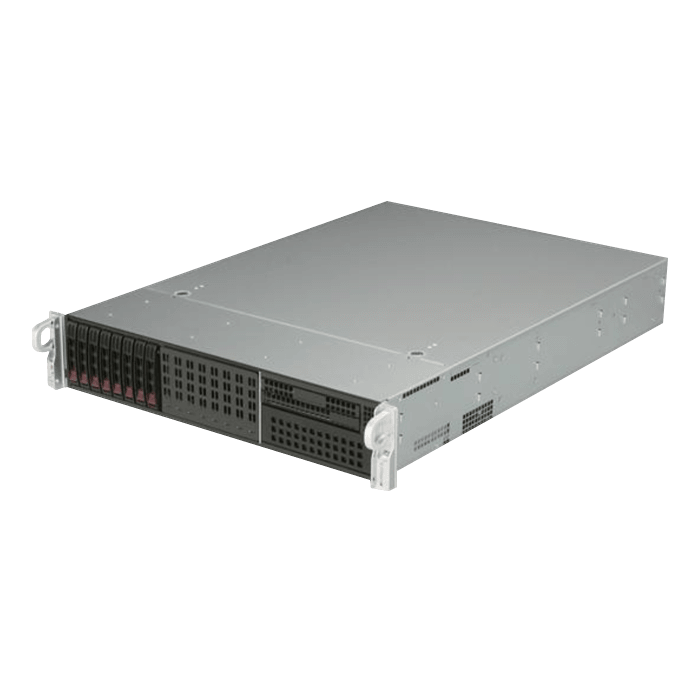

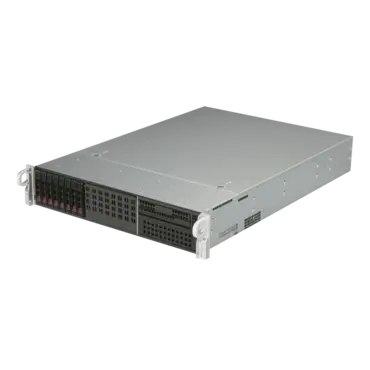

CSE-213LT-563UB |
|
Form Factor |
- 2U chassis supports for maximum motherboard sizes - SMC Proprietary UIO motherboards
|
Processor Support |
- Dual and Single Intel® and AMD processors
|
Dimensions |
Height |
|
Width |
|
Depth |
|
Gross Weight |
|
Packaging (W x H x L) |
- 26.5" (673 mm) x 10.5" (267 mm) x 38" (965 mm)
|
Available Color |
|
Expansion Slots |
- 4 full-height & full-length expansion slot(s)
- 3 low-profile expansion slot(s)
|
Drive Bays |
- 8 x 2.5" hot-swap SAS/SATA drive bay
- 1 x 5.25" drive bay
|
Backplane |
- 8-port 2U TQ backplane (W/O AMI9071/72 enclosure management), support up to 8x 2.5-inch SAS/SATA HDD/SSD
|
Peripheral Drives |
- Optional 1 x slim DVD-ROM drive bay
- Optional 2 x USB 2.0 ports
- Optional 1 x COM port tray
|
Front Panel |
Buttons |
- Power On/Off button
- System Reset Button
|
LEDs |
- 2 Network Activity LEDs
- HDD activity LED
- Power Status LED
- Power Fail LED
- System Information LED
|
Systems Cooling |
Fans |
- 3 x 8cm high-performance PWM fan(s)
|
Operating Environment (System) |
Operating Temperature Range |
|
Non-Operating Temperature Range |
- -40°C - 70°C (-40°F - 158°F)
|
Operating Relative Humidity Range |
- 8% - 90% (non-condensing)
|
Non-Operating Relative Humidity Range |
- 5% - 95% (non-condensing)
|
Power Supply |
1U 560W/600W Multi-output power supply Gold level, 24Pin output |
Power Efficiency |
|
Total Output Power and Input |
- 560W with Input 100 - 180Vac
- 600W with Input 180 - 240Vac
|
AC Input Frequency |
|
Dimensions (L x W x H) |
|
Output Type |
|
-12V |
|
+12V |
- Max: 46A / Min: 1A (100Vac - 180Vac)
- Max: 49A / Min: 1A (180Vac - 240Vac)
|
+5V |
|
+3.3V |
|
+5Vsb |
|
Certification |
|
Regulatory (Power Supply) |
Power Supply Safety / EMC |
- BSMI
- CCC
- CE/EMC
- FCC class B
- TUV/CB
- UL/CUL
|
