Product SKUs |
CSE-LB16AC2-R504W |

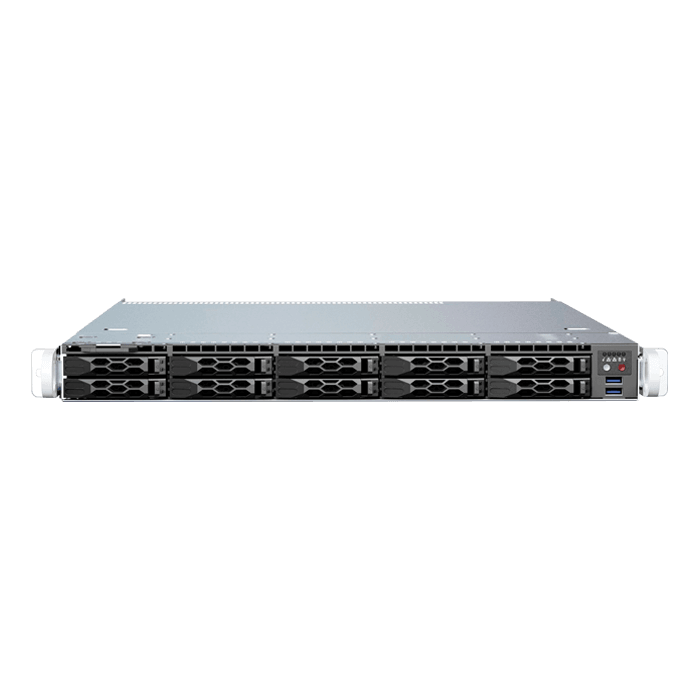

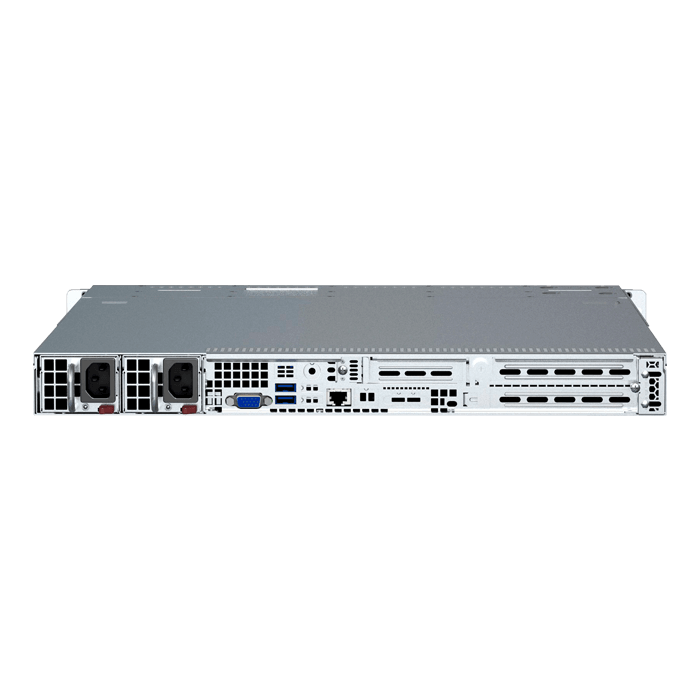

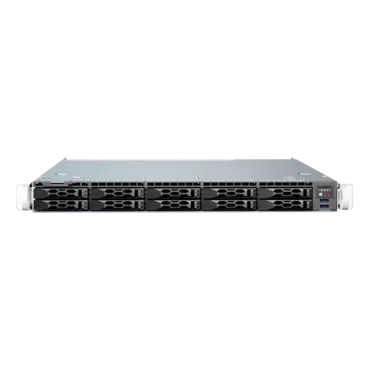

- SuperChassis LB16AC2-R504W
|
Form Factor |
- Optimized for WIO (W series) motherboards, support MB size up to 12.3" x 13.4"
|
Processor Support |
- Dual and Single Intel® and AMD processors
|
Dimensions |
Height |
|
Width |
|
Depth |
|
Gross Weight |
|
Packaging (W x H x L) |
- 23.1" (587 mm) x 6.9" (175 mm) x 32.2" (818 mm)
|
Available Color |
|
Expansion Slots |
- 2x Full-height expansion slot(s)
- 1x Low-profile expansion slot(s)
|
Drive Bays |
- 10x 2.5" hot-swap SAS3/SATA drive bay
|
Backplane |
- 10-Port 1U SAS3 12Gbps Hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
|
Front Panel |
Button |
- Power On/Off button
- Unit Identification (UID) button
|
LED |
- Power status LED
- HDD activity LED
- 2 Network Activity LEDs
- Unit Identification (UID) LED
|
Port |
|
Systems Cooling |
Fans |
- 3x 40x56mm counter-rotation PWM fan(s)
|
Operating Environment (System) |
Operating Temperature Range |
|
Non-Operating Temperature Range |
- -40°C - 70°C (-40°F - 158°F)
|
Operating Relative Humidity Range |
- 8% - 90% (non-condensing)
|
Non Operating Relative Humidity Range |
- 5% - 95% (non-condensing)
|
Power Supply |
1U 500W/600W redundant single output 80PLUS Platinum |
Power Efficiency |
|
Total Output Power and Input |
- 600W with Input 200 - 240Vac
- 500W with Input 100 - 127Vac
|
AC Input Frequency |
|
Dimensions (L x W x H) |
|
Output Type |
|
+12V |
- Max: 50A / Min: 0A (200Vac - 240Vac)
- Max: 42A / Min: 0A (100Vac - 127Vac)
- Max: 50A / Min: 0A
|
+5Vsb |
|
Power Distributor |
- PDB-PT116-L8824
- O/P: 12V/80
- +5V Max: 25A
- +3.3V Max: 25A
- -12V Max: 0.6A
|
Certification |
|
Regulatory (Power Supply) |
Power Supply Safety / EMC |
- CCC
- CE/EMC
- FCC
- TUV/CB
- UL/CUL
|
