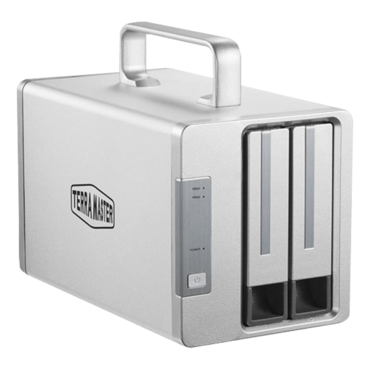

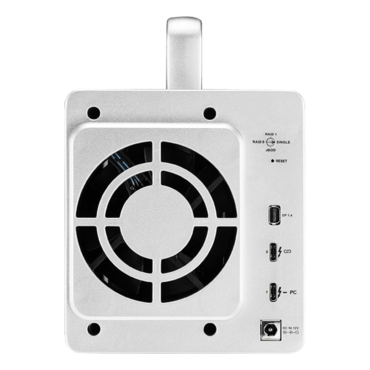

TD2 Thunderbolt 3 2-Bay Professional-Grade RAID, Thunderbolt 3, Storage for Video Editing and Photographe
- SKU: 15103534
- Manufacturer: TerraMaster
- MPN: TD2 THUNDERBOLT 3
- Availability: CONTACT US
Professional 8K Display
Using DisplayPort 1.4 and Thunderbolt 3 interfaces, you can link the TD2 Thunderbolt 3 to a single 8K or dual 4K displays. The device can serve up to 3 display screens.
Daisy-chaining
TD2 Thunderbolt 3 supports daisy-chained connections. You can connect to 5 other Thunderbolt 3 devices via a Thunderbolt 3 interface.
Hardware RAID Controller
TD2 Thunderbolt 3 is equipped with a hardware RAID controller. Use this to switch between RAID 0, RAID 1, JBOD, and Single freely. The device also supports automatic rebuilding of RAID 1.
Optimized for Video Professionals
With aluminum casing and a built-in, temperature-controlled smart fan, TD2 Thunderbolt 3 ensures total heat dissipation. Therefore, it maintains an optimal working performance – all the time.
| Storage | |
| Disk Slot Number | 2 |
| Compatible Disk Types | 3.5" SATA HDD |
| 2.5" SATA HDD | |
| 2.5" SATA SSD | |
| File System | FAT 32, FAT 16, NTFS, and EXT4 |
| Maximum Internal Raw Capacity | 36TB (18 TB drive x 2) (Capacity will vary along with the RAID type) |
| RAIDs Supported | SINGLE DISK,JBOD,RAID 0,RAID 1 |
| Hardware RAID | √ |
| RAID Manager Software | / |
| RAID Manager Software Language | / |
| RAID Online Expansion | / |
| RAID Migration | / |
| RAID Auto-rebuilding | √ |
| Drive Hot Swap | √ |
| HDD Sleep | √ |
| HDD S.M.A.R.T. Inspection | / |
| Sector Inspection and Parity Check | / |
| SSC Cache | / |
| Daisy Chain | / |
| HDD NCQ Technology | / |
| Alert Notice | / |
| Event Log | / |
| External Ports | |
| USB | / |
| Thunderbolt | 40Gb Thunderbolt 3 x 2 |
| DP Interface | DP 1.4 x 1 |
| Power Socket | DC IN 12V |
| Reading/writing Speed (max.) | |
| Reading Speed (max.) | Read: 810MB /sec , (Use SSD under RAID 0 mode) |
| Read: 521MB /sec , (Use HDD under RAID 0 mode) | |
| Writing Speed (max.) | Write: 806MB /sec, (Use SSD under RAID 0 mode) |
| Write: 506MB /sec, (Use HDD under RAID 0 mode) | |
| Appearance | |
| Size (H*W*D) | 227 x 119 x 173 mm |
| Packaging Size (H*W*D) | 258*220*200 mm |
| Weight | Net Weight: 1.4Kg Gross Weight: 2.2Kg |
| Others | |
| System fan | 80 mm x 80 mm x25mm (x 1) |
| Fan mode | Smart |
| Noise Level | 18.6dB(A) |
| Power Supply | |
| Power Supply | 90W |
| AC Input Voltage | 100V - 240V AC |
| Current Frequency | 50/60 Hz, single frequency |
| Power Consumption | 65.6W |
| Environment Temperature | |
| Working Temperature | 5°C ~ 40°C (40°F ~ 104°F) |
| Storage Temperature | -20°C ~ 60°C (-5°F ~ 140°F) |
| Relative Humidity | 5% ~ 95% RH |
| Supported OS | Windows OS?Mac OS |
| Warranty | 2 years |
| Certificate | CE, FCC, CCC, KC |
| Environment | RoHS compliance |
| Package Contents: | Host unit (x1) |
| Power cord (x1) | |
| Thunderbolt 3 cable (40Gbps) * 1 | |
| Quick Installation Guide (x1) | |
| Power adapter (x1) | |
| Screws (several) | |
| Limited Warranty Note x 1 | |
