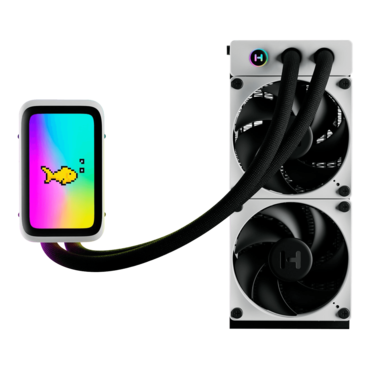

THICC Q60, LCD, 240mm Radiator, Liquid Cooling System
Quantity:
- SKU: 17615615
- Manufacturer: HYTE
- MPN: FAN-HYTE-Q60-BW
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$321.37
- Cooling unlocks potential
- Performance over patents
- Cables are just super gross, so we got rid of like all the cables
- THICC: Technology Harnessing Innovative Chonk for Cooling
- Dropping temps like Country Riddim at a Four Tet show
- “People turn the TV on, it looks just like a window”
| Weight | 5.1 lbs |
| CPU Compatibility | Intel Socket LGA 1851, 1700, 1200, 115X, 2011*, 2066* - AMD Socket AM5, AM4, TR4* - *Optional brackets, please contact support |
| Heat Exchanger Dimensions | 120 x 288 x 52 mm |
| Heat Exchanger Material | Aluminum |
| Heat Exchanger Technology | Parallel Dual Pass |
| Cold Plate Dimensions | 56 x 56 x 1.5 mm |
| Cold Plate Material | Copper |
| Cold Plate Technology | Micro-Skived Fin |
| Magnetic Interchangeable Cold Plate Cover | Anodized Aluminum |
| Tube Length | 400 mm |
| Tube Material | CIIR Rubber with Nylon Sleeving |
| Total CPU Block + LCD Screen Height | 105 mm |
| Fans | THICC FP12 x 2 |
| Fan Dimensions | 120 x 120 x 32 mm |
| Fan Speed | 0 – 3,000 RPM |
| Air Flow | 105.8 CFM |
| Static Pressure | 8.14 mm-H2O |
| Noise Level | <10.0* - 47.3 dBA - *Measuring below 10 dBA was not possible in our test chamber due to the noise floor |
| Bearings | Fluid Dynamic Bearing |
| Fan Blade Material | Fiberglass Reinforced Liquid Crystal Polymer (LCP) |
| Fan Frame Material | Polycarbonate |
| Fan Connector | Nexus Link Type-M |
| Nexus-Link Channels | 1x Type-C, 1x Type-M |
| Maximum Devices – Single Channel | 18 |
| Maximum Devices – All Channels | 34 |
| Maximum Current – Single Channel | 8A/12V |
| Maximum Current – All Channels | 15A/12V |
| Maximum PSU Power Draw | Up to 180W depending on the number of connected Nexus Link devices |
| LCD Size | 5 Inches |
| LCD Mounting Orientation | Portrait Only |
| LCD Resolution | 720 x 1280 (293 PPI) |
| LCD Panel Type | IPS |
| LCD Hinge | Double-Hinged Floating Spout |
| LCD Refresh Rate | 60 Hz |
| LCD Brightness | 300 nits |
| Bias Lighting | 42-Pixel qRGB Array |
| Logo Lighting | 4-Pixel qRGB Array |
| Pump RPM | 2,000 – 4,500 RPM |
| Pump Bearing | Ceramic |
| Pump Impeller Diameter | 24 mm |
| Coolant Operation Temperatures | -10 to 60 C |
| Processor | Quad-Core?64-bit?ARM Cortex |
| Speed | 1.3 GHz |
| RAM | 2GB DDR4 @2666 MT/s |
| Storage | 32GB eMMC |
| Graphics Engine | 500 MHz |
| Co-Processor | 32-Bit ARM Cortex-M4 |
| Input Connections | USB 2.0 Header, PWM, 6-Pin PCIe Power |
| Included Accessories | Intel Mounting Kit + AMD Mounting Kit + Fan Screws |
| Thermal Paste | Yes, Pre-Applied |
| Nexus Powered | Yes |
| Warranty | 6 years |
| Sku | FAN-HYTE-Q60-BW |
