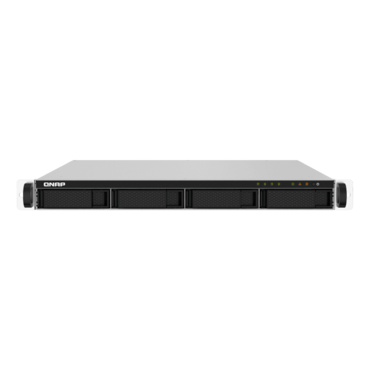

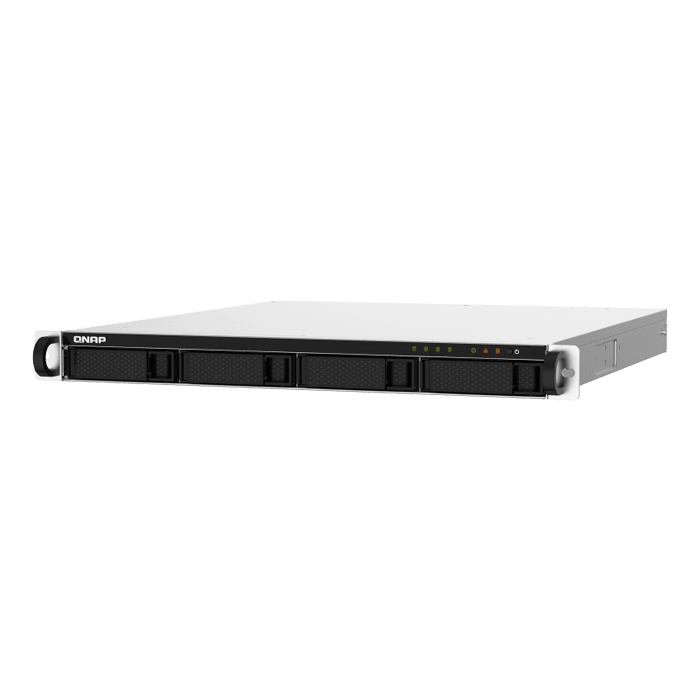

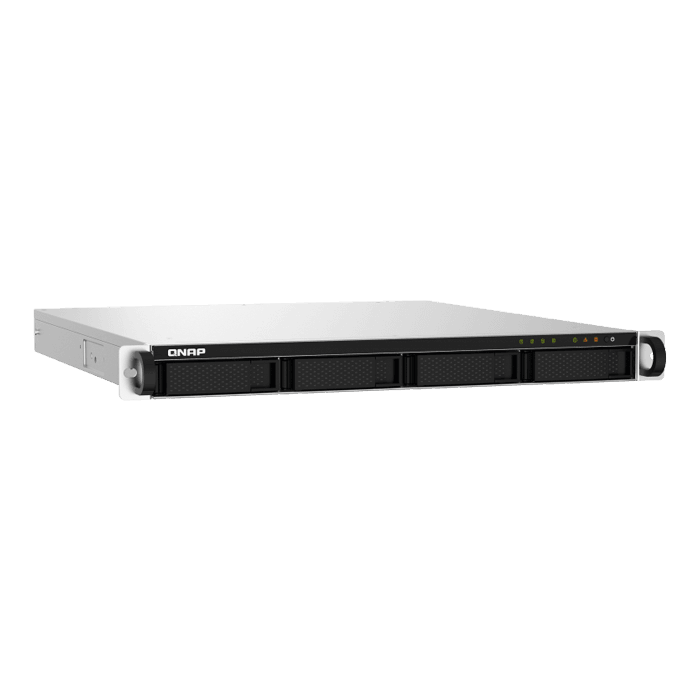

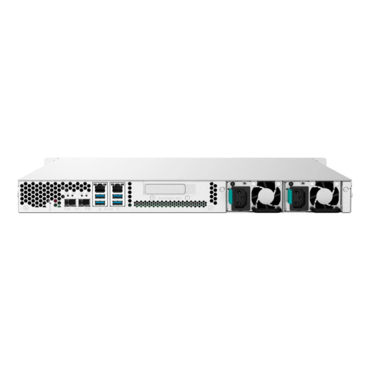

TS-432PXU-RP-2G, 4-bay 1U NAS Server, Alpine AL324, 4-core 1.7GHz processor, 16GB DDR4 RAM (2GB pre-installed), SATA 6Gb/s, 2.5GbLAN / 2, 10GbLAN / 2, Type-A USB 3.2 Gen 1 / 4, 250W Rdt PSU
Quantity:
- SKU: 13605944
- Manufacturer: QNAP
- MPN: TS-432PXU-RP-2G-US
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$1,036.11
| CPU | AnnapurnaLabs Alpine AL324 64-bit ARM® Cortex-A57 4-core 1.7GHz processor |
| CPU Architecture | 64-bit ARM |
| Floating Point Unit | ✔ |
| Encryption Engine | ✔ |
| System Memory | 2 GB UDIMM DDR4 (1 x 2 GB) |
| Maximum Memory | 16 GB (1 x 16 GB) |
| Memory Slot | 1 x UDIMM DDR4 |
| Flash Memory | 512 MB (Dual boot OS protection) |
| Drive Bay | 4 x 3.5" SATA 6Gb/s, 3Gb/s |
| Drive Compatibility |
3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | ✔ |
| M.2 Slot | Optional via a PCIe adapter |
| SSD Cache Acceleration Support | ✔ |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 10 Gigabit Ethernet Port | 2 x 10GbE SFP+ |
| Wake on LAN (WOL) |
Only the 2.5GbE port
|
| Jumbo Frame | ✔ |
| PCIe Slot |
1 Slot 1: PCIe Gen 2 x2 PCIe bandwidth limitations will restrict the NAS 10GbE performance.
|
| USB 3.2 Gen 1 port | 4 |
| Form Factor | 1U Rackmount |
| LED Indicators | HDD 1-4, Status, LAN, Storage expansion |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 44 × 439 × 499 mm |
| Weight (Net) | 8.12 kg |
| Weight (Gross) | 11.12 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit | 250W (x2) PSU, 100 - 240V |
| Power Consumption: Operating Mode, Typical |
53.343 W
Tested with drives fully populated.
|
| Fan | 2 x 40mm, 12VDC |
| System Warning | Buzzer |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 700 |
