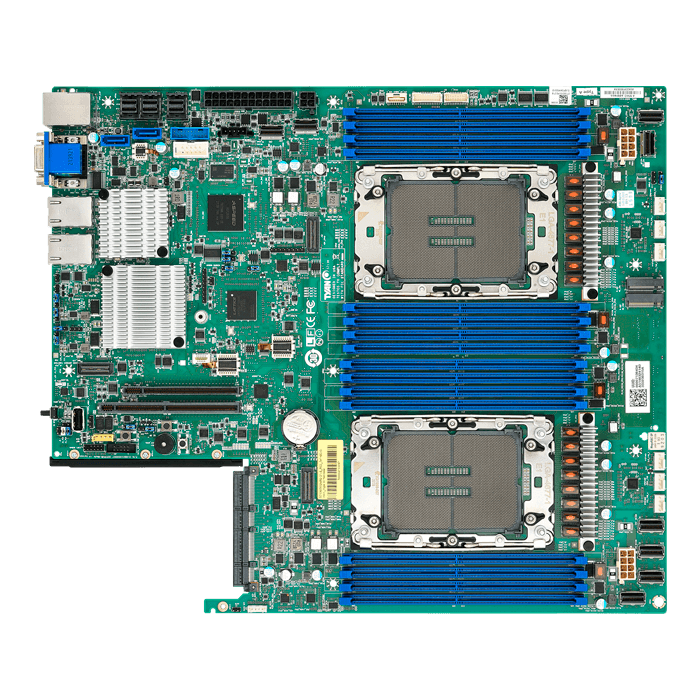

Tempest CX S7136 (S7136GM2NRE-2T), Intel® C741, 2x LGA 4677, DDR5-4800 2TB 3DS RDIMM / 16, VGA, 2x M.2, 2x 10GbLAN, Proprietary Retail
Quantity:
- SKU: 16442991
- Manufacturer: TYAN
- MPN: S7136GM2NRE-2T
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$1,108.59
| Processor | Q'ty / Socket Type | (2) LGA4677 |
| Supported CPU Series | Intel Xeon Scalable Processors | |
| Thermal Design Power Wattage | Max up to 350W (TDP) | |
| Chipset | PCH | Intel C741 |
| Memory | Supported DIMM Qty | (8)+(8) DIMM slots |
| DIMM Type / Speed | DDR5 4800MHz (1DPC) / 4400MHz (2DPC) | |
| Capacity | Up to 2,048GB RDIMM DDR5 4800 *Follow latest Intel DDR5 Memory POR | |
| Memory channel | 8 Channels per CPU | |
| Memory voltage | 1.1V | |
| Expansion Slots | PCIe | (1) PCIe Gen.5 x28 slot / (1) PCIe Gen.5 x24 slot |
| Others | (1) PCI-E Gen.5 x16 OCP 3.0 mezzanine slot | |
| LAN | Q'ty / Port | (2) 10GbE ports + (1) GbE dedicated for IPMI |
| Controller | Intel X710-AT2 | |
| PHY | Realtek RTL8211F | |
| Storage SATA | connector | (14) SATA |
| Controller | Intel C741 | |
| Speed | 6Gb/s | |
| RAID | RAID 0/1/10/5 (Intel RSTe) | |
| Storage NVMe | Connector (M.2) | (2) 2280 (by PCIe.4 interface) |
| Connector (U.2) | (8) MCIO x4 | |
| Graphic VGA | Connector type | D-Sub 15-pin |
| Resolution | Up to 1920x1200 | |
| Chipset | Aspeed AST2600 | |
| Input/Output | USB | (2) USB3.2 Gen.1 ports (@rear) |
| COM | (1) DB-9 COM Connector | |
| VGA | (1) D-Sub 15-pin port | |
| RJ-45 | (2) 10GbE ports + (1) GbE dedicated for IPMI | |
| Others | (1) ID button | |
| TPM (Optional) | TPM Support | Please refer to our TPM supported list. |
| interface | SPI | |
| System Monitoring | Chipset | Aspeed AST2600 |
| fan | Total (6) 4-pin headers | |
| temperature | Monitors temperature for CPU, memory & system environment | |
| Voltage | Monitors voltage for CPU, memory, chipset & power supply | |
| led | Over temperature warning indicator / Fan & PSU fail LED indicator / Over voltage warning indicator | |
| Others | Watchdog timer support | |
| Server Management | Onboard Chipset | Onboard Aspeed AST2600 |
| AST2600 iKVM Feature | 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub | |
| AST2600 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface | |
| BIOS | Brand / ROM size | AMI / 64MB |
| Features | Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.3/PnP/Wake on LAN / ACPI 6.0 / ACPI sleeping states S0, S5 | |
| Physical Dimension | Form Factor | Proprietary |
| Board Dimensions | 14.18" x 12.16" (360.2 x 308.8mm) | |
| Regulation | FCC (SDoC) | Class A |
| CE (DoC) | Class A | |
| RCM | Class A | |
| VCCI | Class A | |
| Operating Environment | Operating Temp. | 10° C ~ 35° C (50° F ~ 95° F) |
| Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | |
| In/Non-operating Humidity | 90%, non-condensing at 35°C | |
| RoHS | RoHS 6/6 Compliant | Yes |
| Operating System | OS supported list | Please refer to our AVL support lists. |
| Package Contains | mother board | (1) S7136 Motherboard |
| manual | (1) Quick Installation Guide | |
| Cable SATA | (2) SATA signal cables | |
| Others | (1) OCP 3.0 Slide Rail / (1) M.2 Card Latch / (2) MCC Carrier / (2) XCC Carrier |
