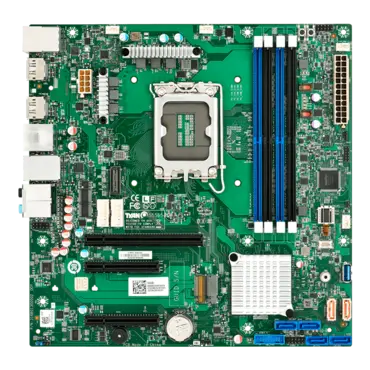

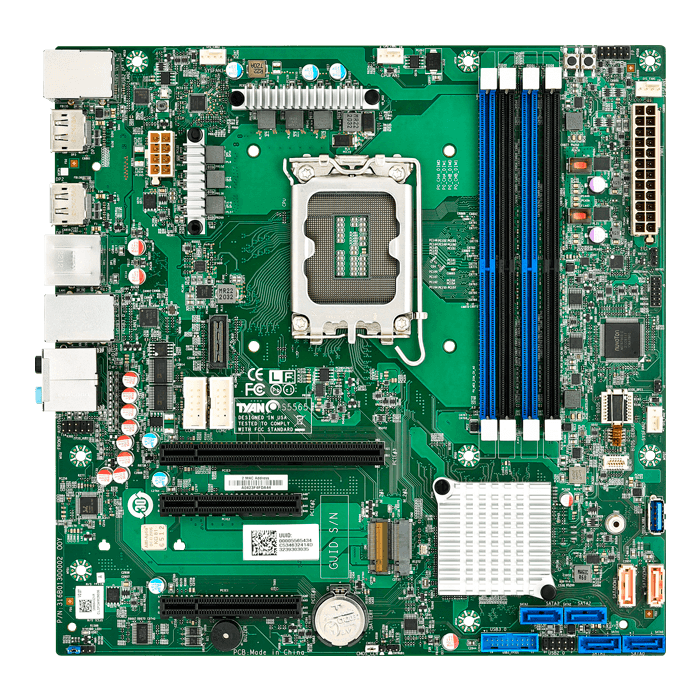

Tempest EX S5565 (S5565AG2NR), Intel® Q670, LGA 1700, microATX Motherboard

Quantity:
  • SKU: 17526811
  • Manufacturer: TYAN
  • MPN: S5565AG2NR
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$248.39
Quantity:
Processor Q'ty / Socket Type (1) LGA1700
Supported CPU Series Intel Core i9/i7/i5/i3 Processors / 12 Gen.
Thermal Design Power Wattage Max up to 125W (TDP)
Chipset PCH Intel Q670
Memory Supported DIMM Qty (4) DIMM slots
DIMM Type / Speed DDR4 Unbuffered non-ECC UDIMM 3200
Capacity Up to 128GB / *Follow latest Intel DDR4 Memory POR
Memory channel 2 Channels per CPU
Memory voltage 1.2V
Expansion Slots PCIe (2) PCIe Gen.3 x8 slots ( w/ x4 link) / (1) PCIe Gen.3 x16 slot
LAN Q'ty / Port (1) GbE + (1) 2.5GbE
Controller Intel I225V / Intel I219 (Intel AMT support)
Storage SATA Connector (2) SATA-DOM / (4) SATA
Controller Intel Q670
Speed 6Gb/s
RAID RAID 0/1/10/5 (Intel RSTe)
Storage NVMe Connector (M.2) (2) 22110/2280 (by PCIe Gen.3 interface)

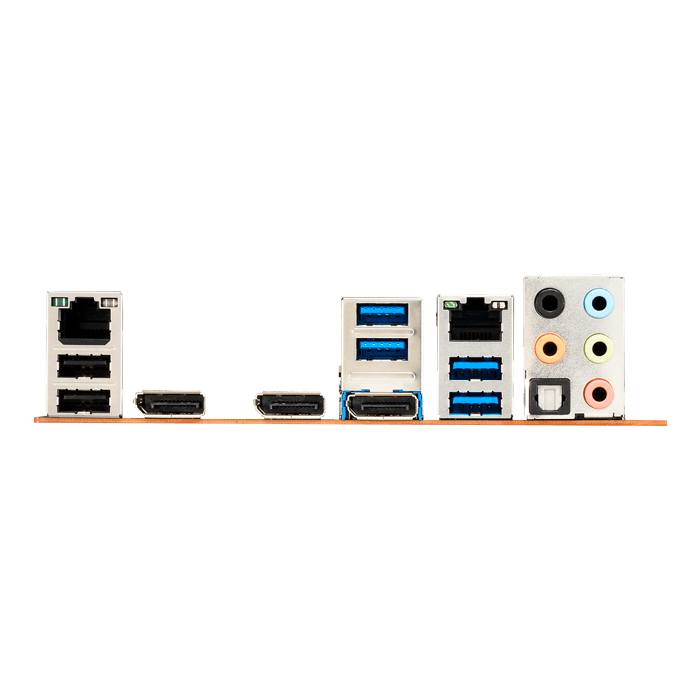

Graphic Display Port Connector type (3) Display ports
Resolution Up to 4096X2304 @60Hz
Chipset Intel Processor Graphics (pGFX)
Input /Output USB (1) USB2.0 header / (1) USB3.2 Gen.1 header / (2) USB2.0 ports / (4) USB3.2 Gen.1 ports
RJ-45 (1) GbE port + (1) 2.5GbE port
Front Panel (1) 2 x 5 header
Audio (1) 5 holes Audio Jack+SPDIF fiber connector
SATA (4) SATA-III connectors / (2) SATA-DOM connectors
Power (1) ATX 24-pin / (1) 2x4 Power input connector
Display port (3) Display ports
TPM (Optional) TPM Support Please refer to our TPM supported list.
Interface SPI
System Monitoring Chipset NCT6796D-E
Fan Total (4) 4-pin headers
Temperature Monitors temperature for CPU & system environment
Voltage Monitors voltage for CPU, memory, chipset & power supply
Others Watchdog timer support
Audio Chipset Realtek ALC888-VR
Feature 7.1 ch
Connector (1) SPDIF OUT Connector
BIOS Brand / ROM size AMI / 32MB
Feature Hardware Monitor / Console Redirection / User Configurable FAN PWM Duty Cycle / ACPI sleeping states S0,S3,S5
Physical Dimension Form Factor Micro ATX
Board Dimension 9.6" x 9.6" (243.8 x 243.8mm)
Regulation FCC (SDoC) Class B
CE (DoC) Class B
RCM Class B
VCCI Class B
Operating Environment Operating Temp. 0° C ~ 55° C (32° F~ 131° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Compliant Yes
Operating System OS supported list Please refer to our AVL support lists.
Package Contains Motherboard (1) S5565 Motherboard
Manual (1) Quick Installation Guide
I/O Shield (1) I/O Shield
Cable SATA (2) SATA signal cables
