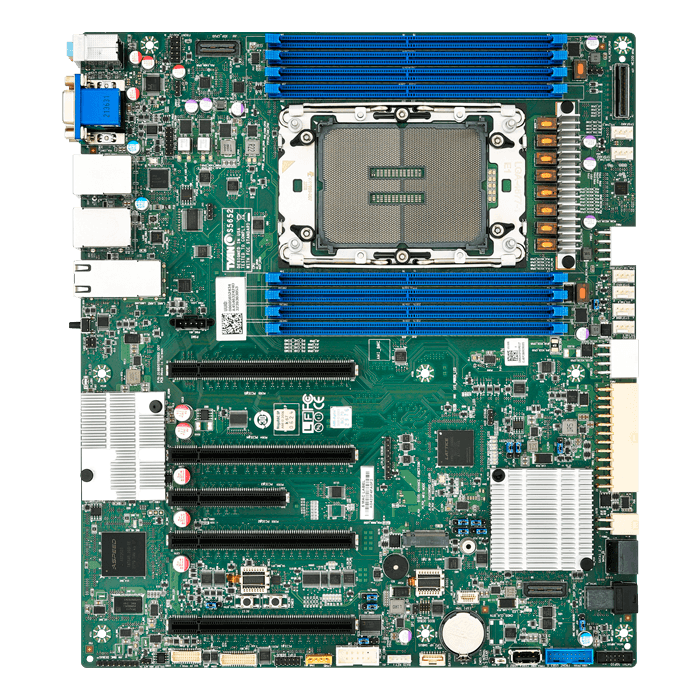

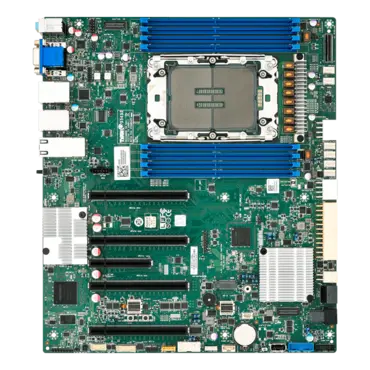

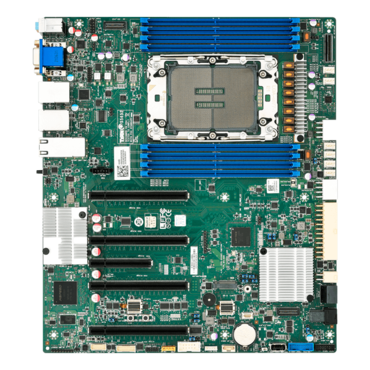

Tempest HX S5652 (S5652AGM3NRE-2T), Intel® C741, LGA 4677, DDR5-4800 2TB 3DS RDIMM / 8, VGA, M.2, 10GbLAN / 2, 1GbLAN, CEB Retail
Quantity:
- SKU: 16179407
- Manufacturer: TYAN
- MPN: S5652AGM3NRE-2T
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$776.25
| Processor | Q'ty / Socket Type | (1) LGA4677 |
| Supported CPU Series | 4th Gen. Intel Xeon Scalable Processors | |
| Thermal Design Power Wattage | Max up to 350W (TDP) | |
| Chipset | PCH | Intel C741 |
| Memory | Supported DIMM Qty | (8) DIMM slots |
| DIMM Type / Speed | DDR5 4800 MHz (1DPC) / 4400MHz (2DPC) | |
| Capacity | Up to 1,024GB RDIMM/2,048GB 3DS RDIMM 4800/4400 memory *Follow latest Intel DDR5 Memory POR | |
| Memory channel | 8 Channels per CPU | |
| Memory voltage | 1.1V | |
| Expansion Slots | PCIe | (1) PCIe Gen.5 x8 slot / (4) PCIe Gen.5 x16 slots |
| LAN | Q'ty / Port | (2) 10GbE ports + (1) GbE dedicated for IPMI |
| Controller | Intel X550 | |
| PHY | Realtek RTL8211F | |
| Storage SATA | Connector | (6) SATA |
| Controller | Intel C741 | |
| Speed | 6Gb/s | |
| RAID | RAID 0/1/10/5 (Intel RSTe) | |
| Storage NVMe | Connector (M.2) | (1) 2280 (by PCIe.3 interface) |
| Connector (U.2) | (1) MCIO x8 | |
| Storage (Optional) | VROC Support | Yes |
| Graphic VGA | Connector type | D-Sub 15-pin |
| Resolution | Up to 1920x1200 @60Hz | |
| Chipset | Aspeed AST2600 | |

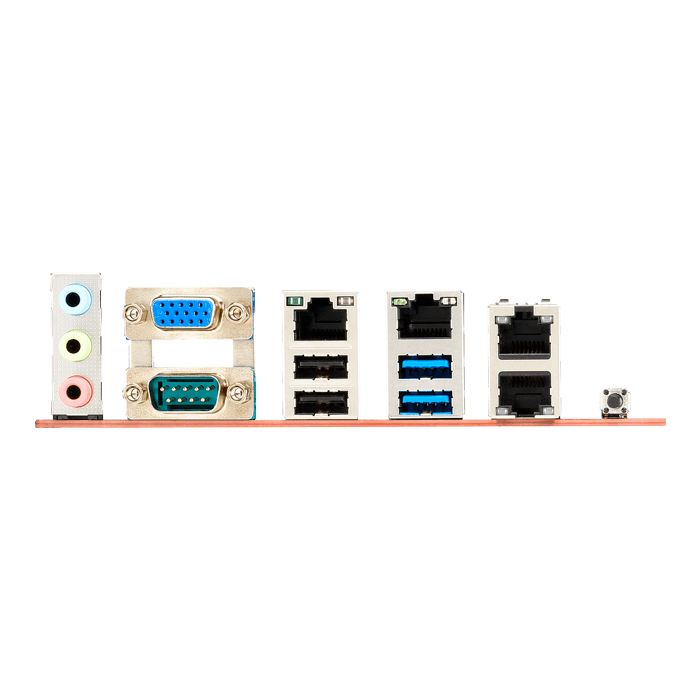

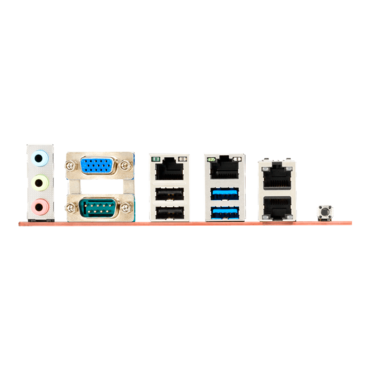

| Input /Output | USB | (1) USB2.0 port ( Type-A ) / (2) USB2.0 ports (@ rear) / (2) USB3.2 Gen.1 ports |
| COM | (1) DB-9 COM Connector (@ rear) | |
| VGA | (1) D-Sub 15-pin VGA port (@ rear) | |
| RJ-45 | (2) 10GbE ports + (1) GbE dedicated for IPMI | |
| Front Panel | (1) 2x12-pin SSI front panel header | |
| Audio | (1) 2x5-pin header / (1) 3 holes Audio Jack connector | |
| SATA | (6) SATA-III connectors | |
| Power | (1) ATX 24-pin + (2) 8-pin + (1) 4-pin power connectors | |
| Others | (1) UID button | |
| TPM (Optional) | TPM Support | Please refer to our TPM supported list. |
| Interface | SPI | |
| System Monitoring | Chipset | Aspeed AST2600 |
| Fan | Total (6) 4-pin headers | |
| Temperature | Monitors temperature for CPU, memory & system environment | |
| Voltage | Monitors voltage for CPU, memory, chipset & power supply | |
| LED | Over temperature warning indicator / Fan & PSU fail LED indicator | |
| Others | Watchdog timer support | |
| Audio | Chipset | Realtek ALC888S |
| Feature | 2.1 ch | |
| Server Management | Onboard Chipset | Onboard Aspeed AST2600 |
| AST2600 iKVM Feature | 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub | |
| AST2600 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface | |
| BIOS | Brand / ROM size | AMI / 32MB |
| Feature | Hardware Monitor / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / SMBIOS 3.3/PnP/Wake on LAN / ACPI sleeping states S0, S5 | |
| Physical Dimension | Form Factor | SSI CEB compatible |
| Board Dimension | 12” x 10.5” (305 x 267mm) | |
| Regulation | FCC (SDoC) | Class B |
| CE (DoC) | Class B | |
| RCM | Class B | |
| VCCI | Class B | |
| Operating Environment | Operating Temp. | 0° C ~ 40° C (32° F~ 104° F) |
| Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | |
| In/Non-operating Humidity | 90%, non-condensing at 35° C | |
| RoHS | RoHS 6/6 Compliant | Yes |
| Operating System | OS supported list | Please refer to our AVL support lists. |
| Package Contains | Motherboard | (1) S5652 Motherboard |
| Manual | (1) Quick Installation Guide | |
| I/O Shield | (1) I/O Shield | |
| Cable SATA | (2) SATA signal cables | |
| Others | (1) M.2 Card Latch / (2) MCC Carrier / (2) XCC Carrier |
