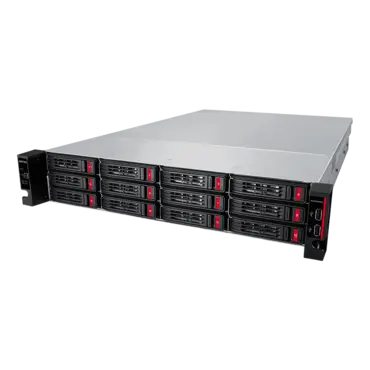

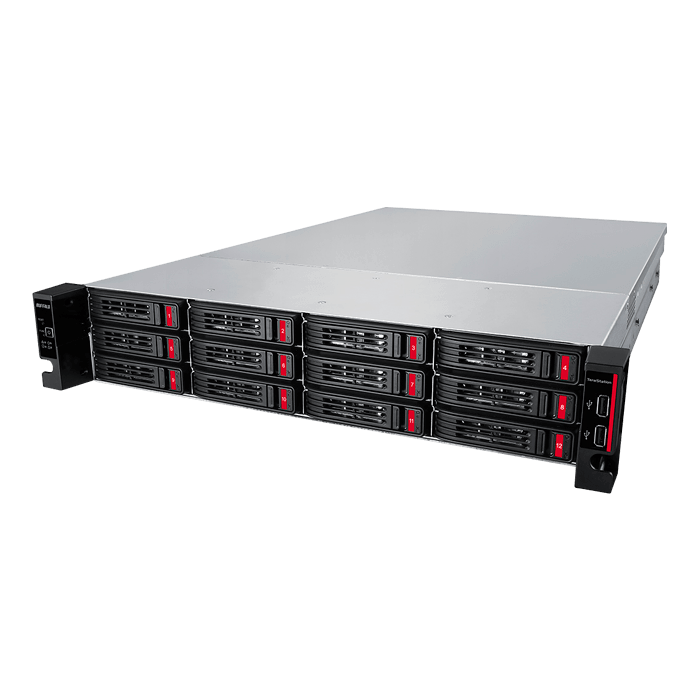

TeraStation™ TS51220RH TS51220RH3204 (8TBx4 HDDs included), 12-bay 2U NAS Server, Alpine AL524, 4-core 2.04GHz processor, 16GB DDR4 RAM, SATA 6Gb/s, 10GbLAN / 2, 1GbLAN/ 2, USB 3.2 / 2, 500W PSU
Quantity:
- SKU: 15386987
- Manufacturer: BUFFALO
- MPN: TS51220RH3204
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$4,082.91
| MODELS | |
| Model Name | TS5420 |
| Part Number | TS51220RH3204 (8TBx4) |
| Configuration | Rackmount |
| Country of Origin | Japan |
| INTERNAL HARD DRIVES | |
| Number of Drive Bays | 12 |
| Number of Included Drives | 4 or 12 |
| Capacity Range | 32, 48, 64, 80, 96, 144, 192, 240TB |
| Drive Type | Enterprise-grade HDD (CMR) |
| Supported RAID | 0/1/5/6/10/JBOD |
| Hot Spares | Yes, with hot swapping supported |
| USB INTERFACE | |
| Standards Compliance | USB 3.0 |
| Connector Type | A type |
| Number of Ports | 2x USB 3.0; 2x USB 2.0 |
| PERFORMANCE | |
| CPU |
Annapurna Labs® Alpine Processor AL524 (2.04 GHz Quad-Core) |
| Memory | 16 GB DDR4 |
| ENVIRONMENTAL & POWER | |
| Power Consumption |
Max 500W Data Transfer 177W Idling 135W |
| Power Supply |
Internal AC 100-240V, Universal 50/60Hz Optional dual power supply available |
| Operating Temperature | 32° - 104°F (0° - 40°C) |
| Operating Humidity | 10 - 85% non-condensing |
| SHIPPING | |
| Unit Dimensions (L x W x H) | 29.0 x 18.9 x 3.4 in |
| Unit Weight | 55.37 lbs |
| Package Dimensions (L x W x H) | 38.5 x 22.9 x 10.2 in |
| Package Weight | 66.5 lbs |
| Warranty | 5 Years (with product registration) |
| LAN INTERFACE | |
| Standards Compliance | IEEE802.3an (10GBASE-T), IEEE802.3bz (5GBASE-T/2.5GBASE-T), IEEE802.3ab (1000BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3 (10BASE-T) |
| Number of Ports | 2 (10GBASE-T), 2 (1000BASE-T) |
| Data Transfer Rates | 10 Gbps/1000 Mbps/100 Mbps/10 Mbps |
| Supported Protocols | TCP/IP |
| Network File Services | CIFS/SMB, AFP, FTP/FTPS/SFTP, NFS |
| Connector Type | RJ-45 |
| PRODUCT FEATURES | |
| Email Notifications | Yes |
| Btrfs Filesystem | Yes |
| Port Trunking | Yes |
| Rapid RAID change | Yes |
| Replication | Yes |
| Failover | Yes |
| UPS | Yes (USB/Network) |
| Active Directory | Yes |
| Cloud Service Integration | Yes (Dropbox, AMazon S3, Microsoft Azure and OneDrive) |
| Boot Authentification | N/A |
| SNMP | Yes |
| Snapshots | Yes |
| Snapshot Backup | Yes |
| Settings Migration from Old TeraStations | Yes |
| Remote Monitoring Services | Yes |
| iSCSI | Yes |
| iSCSI Backup | Yes |
| CLIENT OS SUPPORT | |
| Client OS Support |
Windows® 11 (32-bit/64-bit), Windows® 10, Windows® 8.1 (32-bit/64-bit) Windows Server® 2019, Windows Server® 2016, Windows Server® 2012R2, Windows Server® 2012 Mac® OS® X 10.13 or later |
| ACCESSORIES | |
| Remote Management Service | Available for Free |
| Compatible Hard Drives | OP-HDN Series |
| Additional Power Supply | OP-PU-10R2UWR (TS51220RH ONLY) |
| Optional Warranty Service | Extended options available |
| BOX CONTENTS | |
| Included Materials | TeraStation, Quick Setup Guide, AC Cable, Front Panel Key, and Warranty Statement |
| Included Software | NASNavigator2, NovaBACKUP® Buffalo Edition (One server and ten workstation licenses - available for download after product registration) |
| Additional | For compliance documents such as RoHS Declaration, Certificate of Volatility, Certificate of Conformance, or others please contact [email protected]. |
