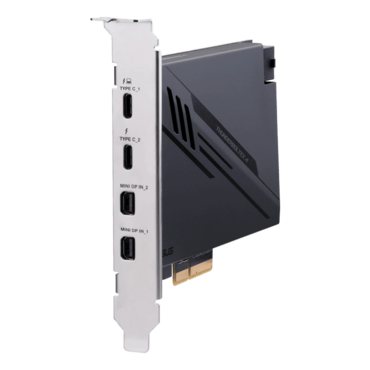

ThunderboltEX 4 expansion card
Enable blisteringly fast speeds and any-way-up connectivity
ASUS ThunderboltEX 4 is a Thunderbolt™ 4 add-on card that offers 40 Gbps bi-directional bandwidth, USB4™ device compatibility, and DisplayPort™ 1.4. It supports up to five Thunderbolt devices in a daisy chain and enables up to 100-watt USB-C charging for laptops.
- ASUS ThunderboltEX 4 expansion card
- Intel®-certified Thunderbolt™ 4 add-on card
- 40 Gbps bi-directional bandwidth for superfast data transfers and video output
- Dual Thunderbolt™ 4 ports (USB-C®), with support for up to five Thunderbolt devices in a daisy chain
- DisplayPort™ 1.4 for 8K Ultra HD support
Spec | |
---|---|
Chipset | Intel® Thunderbolt™ 4 JHL8540 Controller |
External Connectors |
2 x USB Type-C® ports (Support Thunderbolt™ 4 and USB 4 technology)
- up to 40Gbps for Thunderbolt devices
- The Type-C_1 supports up to 20V/5A, 100W quick charge feature, Type-C_2 support up to 9V/3A, 27W quick charge feature.
2 x mini DisplayPort IN ports
1 x 6-pin PCIe power connector for quick charge function
1 x USB 2.0 header
1 x Thunderbolt header
|
Interface | PCIe 3.0 x4 interface |
VGA |
Supports DisplayPort 1.4 with max. resolution 7680 x 4320@60Hz*
* Max resolution support will depend on your VGA source
|
Accessories |
2 x mini DisplayPort cables (links graphics output from motherboard’s or discrete graphics card’s DisplayPort to the mini DisplayPort IN port on the ThunderboltEX 4 card)
1 x USB 2.0 cable
1 x 14-1 pin Thunderbolt header cable
1 x User manual
1 x Support DVD with Thunderbolt™ driver
|
Compatible Models |
ASUS Intel 500 series and later models with 14-1 pin Thunderbolt header.
*Refer to the following link for an up-to-date list of compatible models:
|
Operating System | Windows® 10 - 64 bit |
Dimensions | 4.6 inch x 7.1 inch (11.77 cm*18.05 cm) |
