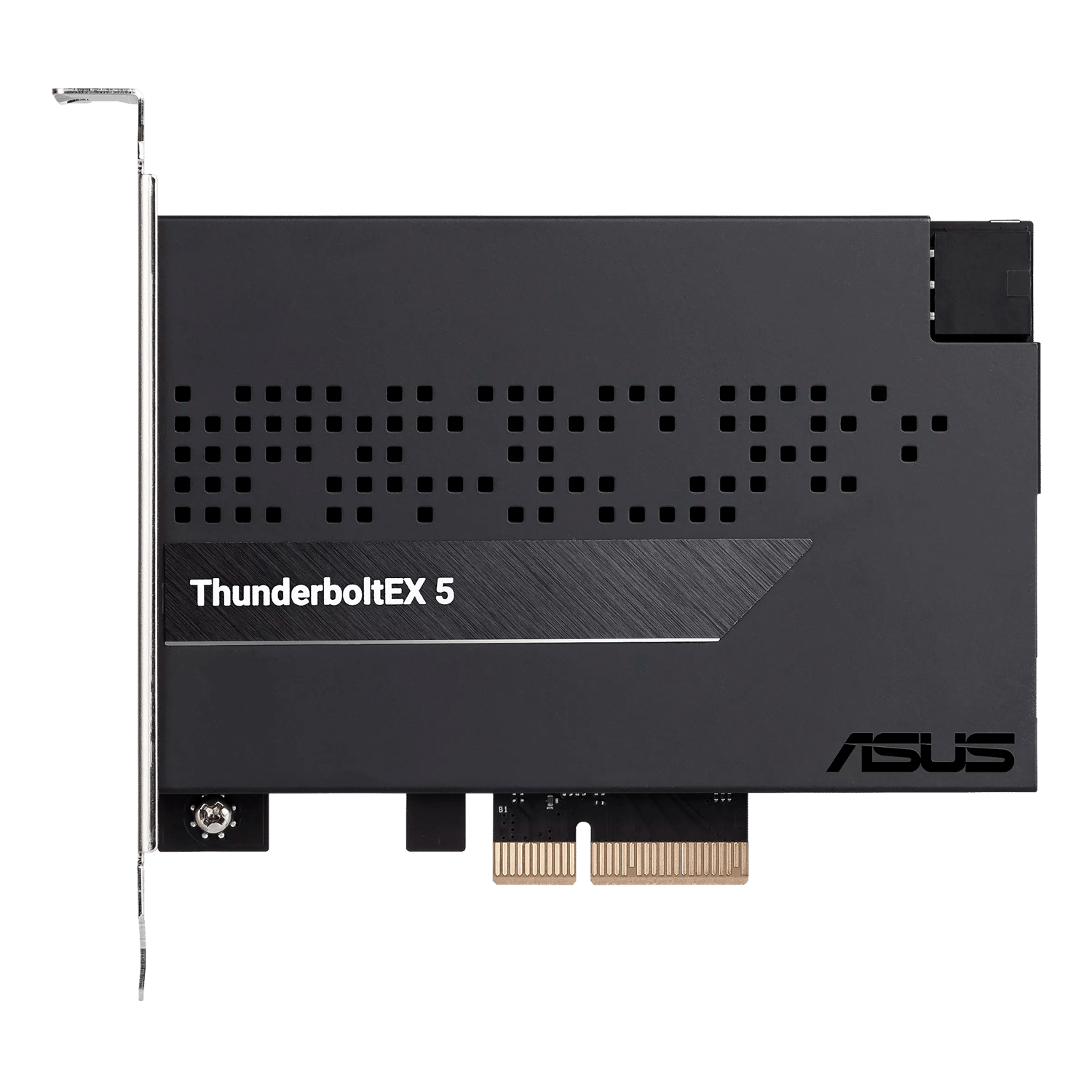

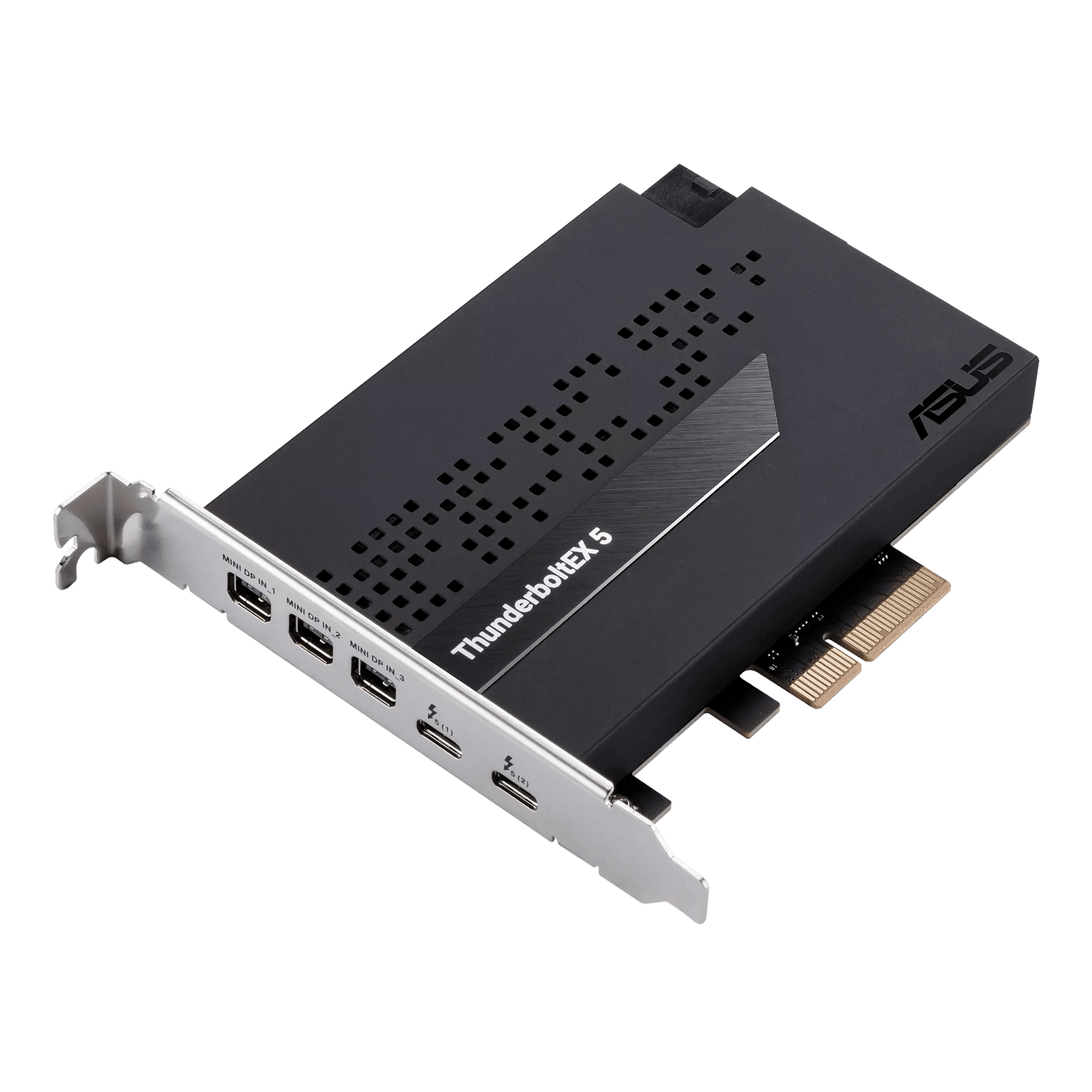

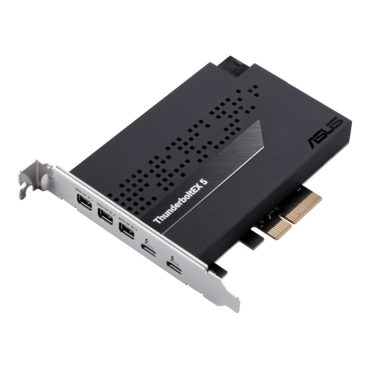

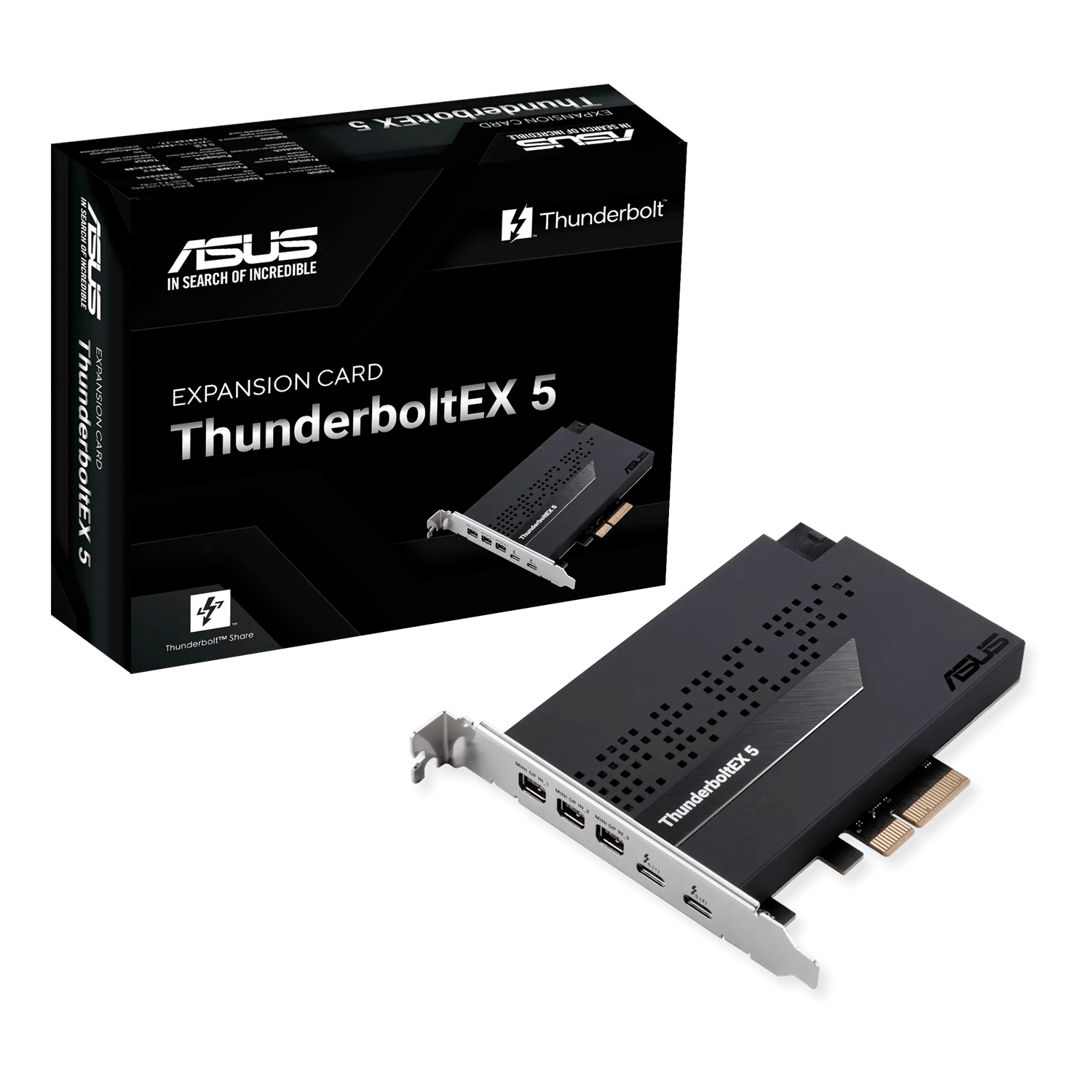

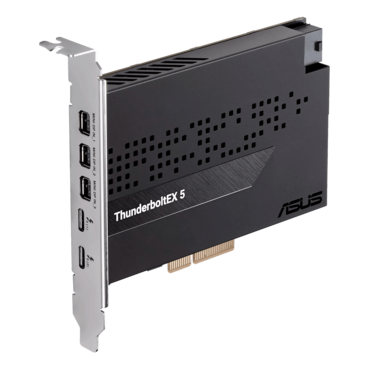

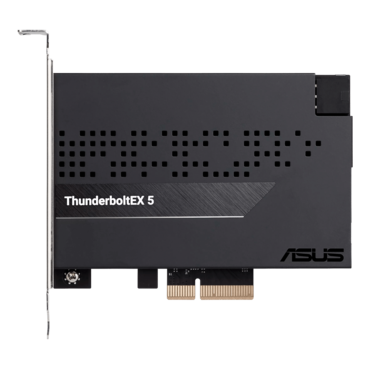

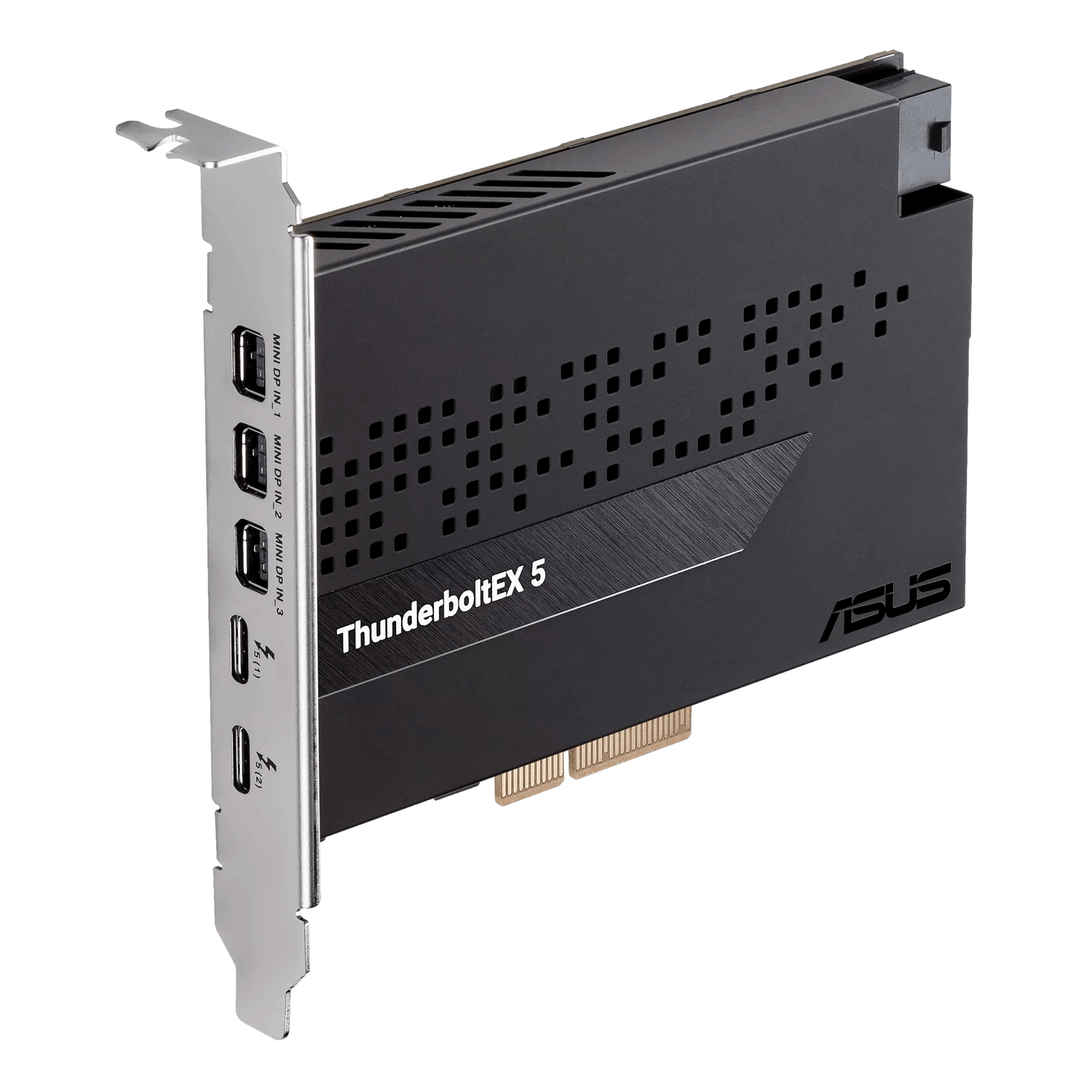

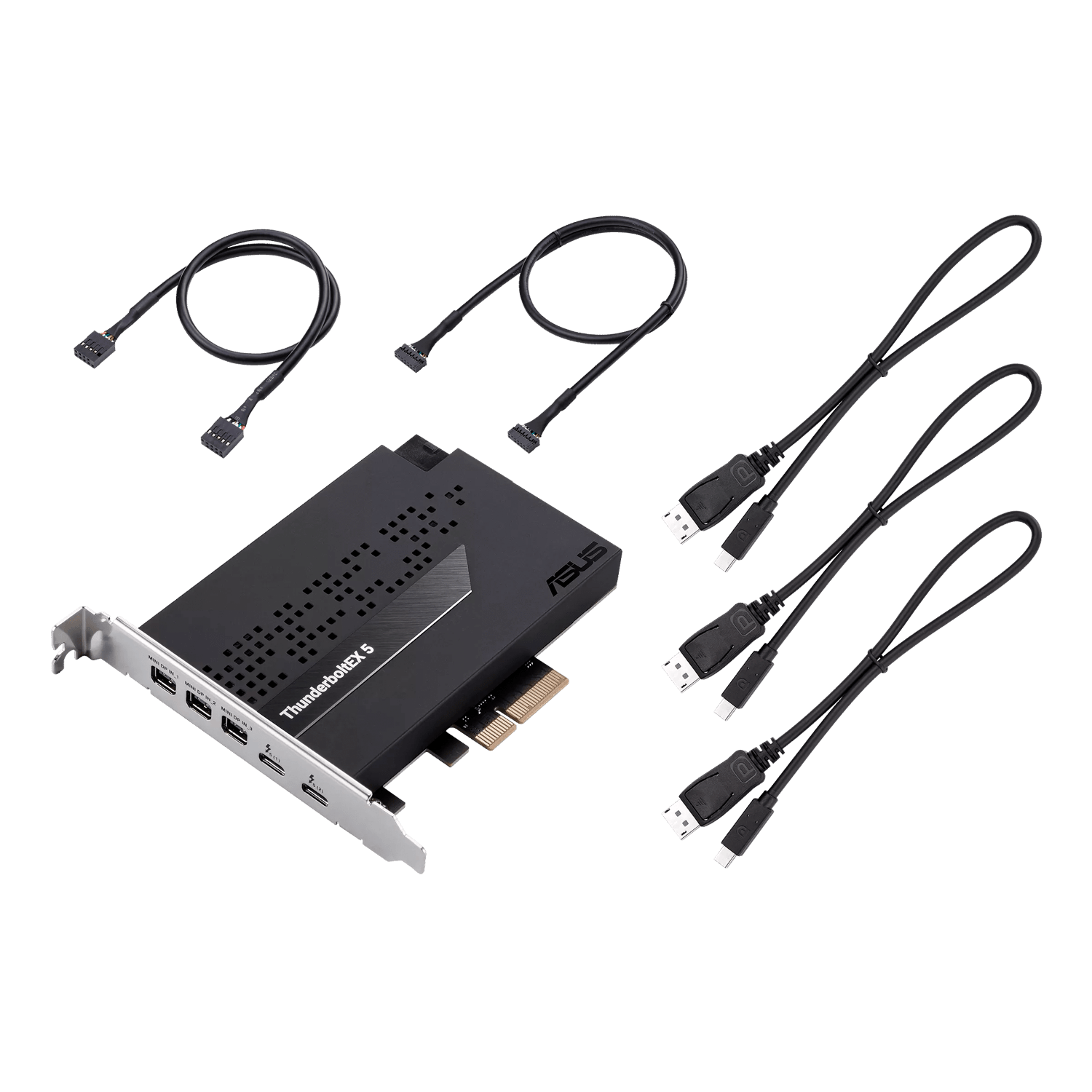

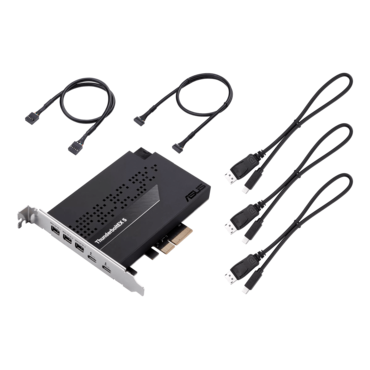

ThunderboltEX 5, PCI Express 4.0 x4, Expansion Card
Quantity:
- SKU: 18624433
- Manufacturer: ASUS
- MPN: THUNDERBOLTEX 5
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$136.57
- Intel® certified Thunderbolt™ 5 add-on card
- Dual USB Type-C® ports support up to 130 watts total of fast charging, and up to 96W for one device
- Up to five Thunderbolt™ devices can be daisy-chained
- Up to 120 Gbps of bandwidth for superfast data transfers and video output
- DisplayPort™ 2.1 port supports up to three 8K 60 Hz displays with DSC
| Model | ThunderboltEX 5 |
| News Update |
Please visit our GLOBAL website to check and download the latest updates. Please visit our GLOBAL website to check and download the latest updates. |
| Spec |
Chipset Intel® JHL9580 Thunderbolt 5 Controller External Connectors 2 x USB Type-C® ports - Up to 120Gbps for Thunderbolt™ and USB4® devices - USB Type-C® _1 and USB Type-C® _2 support up to a total of 130W with Flexible FastCharge feature - USB Type-C® power delivery output: max. 20V/4.8A 3 x mini DisplayPort IN ports 1 x 6-pin PCIe power connector for Flexible FastCharge function 1 x USB 2.0 header 1 x Thunderbolt™ header Interface PCIe 4.0 x4 interface VGA Supports up to 3 x 8K@60Hz with DSC as specified in DisplayPort 2.1* * Max resolution support will depend on your VGA source Operating System Windows 11 64-bit (with inbox driver) Dimensions 3.5 inch x 4.7 inch (8.89 cm*11.95 cm) Chipset Intel® JHL9580 Thunderbolt 5 Controller External Connectors 2 x USB Type-C® ports - Up to 120Gbps for Thunderbolt™ and USB4® devices - USB Type-C® _1 and USB Type-C® _2 support up to a total of 130W with Flexible FastCharge feature - USB Type-C® power delivery output: max. 20V/4.8A 3 x mini DisplayPort IN ports 1 x 6-pin PCIe power connector for Flexible FastCharge function 1 x USB 2.0 header 1 x Thunderbolt™ header Interface PCIe 4.0 x4 interface VGA Supports up to 3 x 8K@60Hz with DSC as specified in DisplayPort 2.1* * Max resolution support will depend on your VGA source Operating System Windows 11 64-bit (with inbox driver) Dimensions 3.5 inch x 4.7 inch (8.89 cm*11.95 cm) |
