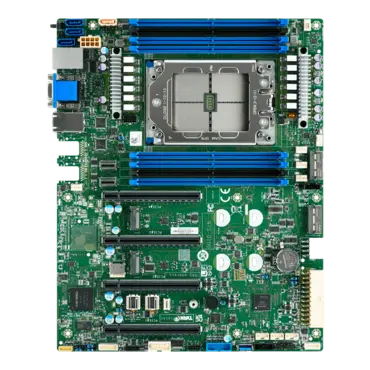

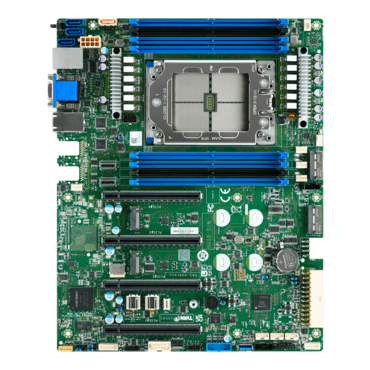

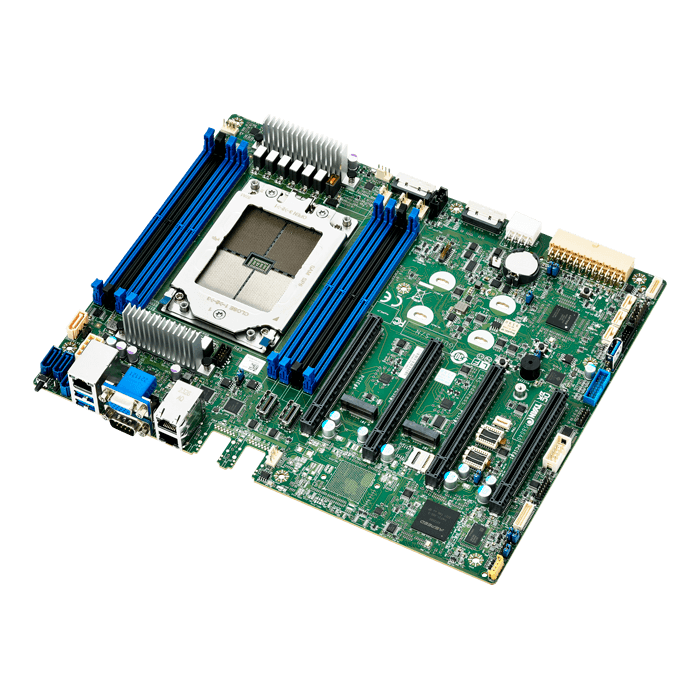

Tomcat HX S8040 (S8040GM4NE-2T), AMD SoC, SP6, DDR5-4800 ECC RDIMM / 8, VGA, M.2 / 2, USB 3.2 Gen1 / 2, MCIO / 4, 10GbLAN / 2, 1GbLAN / 2, ATX OEM
Quantity:
- SKU: 17222172
- Manufacturer: TYAN
- MPN: S8040GM4NE-2T
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$643.99
| Processor | Q'ty / Socket Type | (1) AMD Socket SP6 |
| Supported CPU Series | (1) AMD EPYC™ 8004 Series Processor | |
| Thermal Design Power Wattage | Max up to 225W (TDP) | |
| Memory | Supported DIMM Qty | (8) DIMM slots |
| DIMM Type / Speed | DDR5 4800 MHz (1DPC) | |
| Capacity | Up to 768GB RDIMM DDR5 4800/3600 memory | |
| Memory channel | 6 Channels per CPU | |
| Memory voltage | 1.1V | |
| Expansion Slots | PCIe | (4) PCIe Gen.5 x16 slots |
| LAN | Q'ty / Port | (2) 10GbE ports + (2) GbE ports + (1) GbE dedicated for IPMI |
| Controller | Intel I210 / Intel X710 | |
| PHY | Realtek RTL8211F | |
| Storage SATA | Connector | (4) SATA |
| Speed | 6Gb/s | |
| RAID | N/A | |
| Storage NVMe | Connector (M.2) | (2) 22110/2280 (by PCIe Gen.5 interface) |
| Connector (U.2) | (2) MCIO x4 / (2) MCIO x8 | |
| Graphic VGA | Connector type | (1) VGA |
| Resolution | Up to 1920x1200 | |
| Chipset | Aspeed AST2600 | |
| Input /Output | NVMe | (2) MCIO x4 / (2) MCIO x8 |

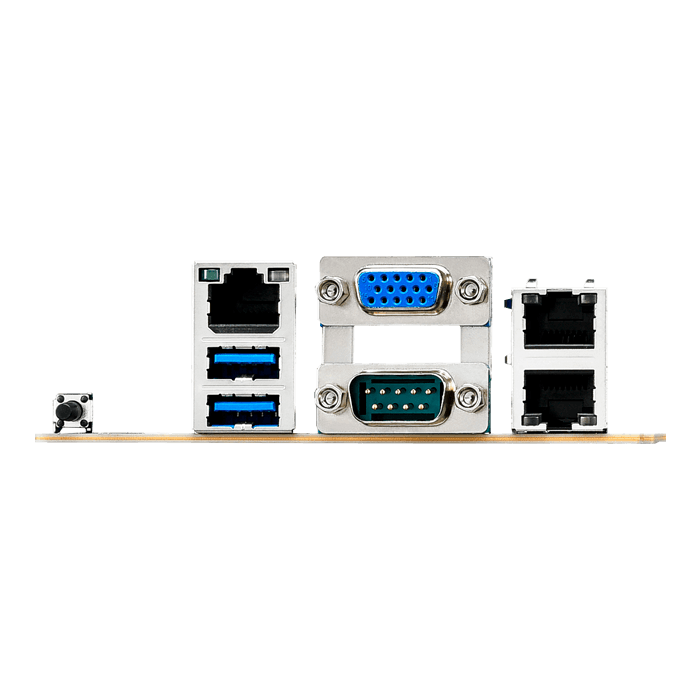

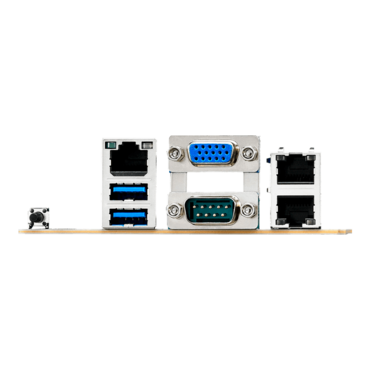

| USB | (1) USB3.2 Gen.1 header / (1) USB3.2 Gen.1 conn. ( Type-A ) / (2) USB3.2 Gen.1 ports (@rear) | |
| COM | (1) COM port header / (1) DB-9 COM Connector | |
| VGA | (1) VGA port | |
| RJ-45 | (2) 10GbE ports + (2) GbE ports + (1) GbE dedicated for IPMI | |
| Front Panel | (1) 2x12-pin SSI front panel header | |
| SATA | (1) SATA-DOM connector / (3) 7-pin SATA connectors | |
| Power | (2) 2x4 Power input connectors / (1) 2x12 Power input connector | |
| TPM (Optional) | TPM Support | Please refer to our TPM supported list. |
| Interface | SPI | |
| System Monitoring | Chipset | Aspeed AST2600 |
| Fan | Total (5) 4-pin headers | |
| Temperature | Monitors temperature for CPU, memory & system environment | |
| Voltage | Monitors voltage for CPU, memory, chipset & power supply | |
| LED | Fan fail LED indicator / Over temperature warning indicator / Fan & PSU fail LED indicator | |
| Server Management | Onboard Chipset | Onboard Aspeed AST2600 |
| AST2600 iKVM Feature | 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub | |
| AST2600 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface | |
| BIOS | Brand / ROM size | AMI / 32MB |
| Feature | Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.0/PnP/Wake on LAN / ACPI sleeping states S0, S5 | |
| Physical Dimension | Form Factor | ATX |
| Board Dimension | 12" x 9.6" (305 x 243.8mm) | |
| Regulation | FCC (SDoC) | Class A |
| CE (DoC) | Class A | |
| Operating Environment | Operating Temp. | 10° C ~ 35° C (50° F~ 95° F) |
| Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | |
| In/Non-operating Humidity | 90%, non-condensing at 35° C | |
| RoHS | RoHS 6/6 Compliant | Yes |
| Operating System | OS supported list | Please refer to our AVL support lists. |
| Package Contains | Motherboard | (1) S8040 Motherboard |
| Manual | (1) Quick Installation Guide | |
| Cable SATA | (2) SATA signal cables |
