Toughpower SFX-0750AH8FLP, 80 PLUS Platinum 750W, Fully Modular, SFX Power Supply
Quantity:
- SKU: 17636619
- Manufacturer: THERMALTAKE
- MPN: PS-STP-0750FNFAPU-1
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$150.55
Toughpower SFX-0750AH8FLP, 80 PLUS Platinum 750W, Fully Modular, SFX Power Supply
Compact Power, Limitless Performance

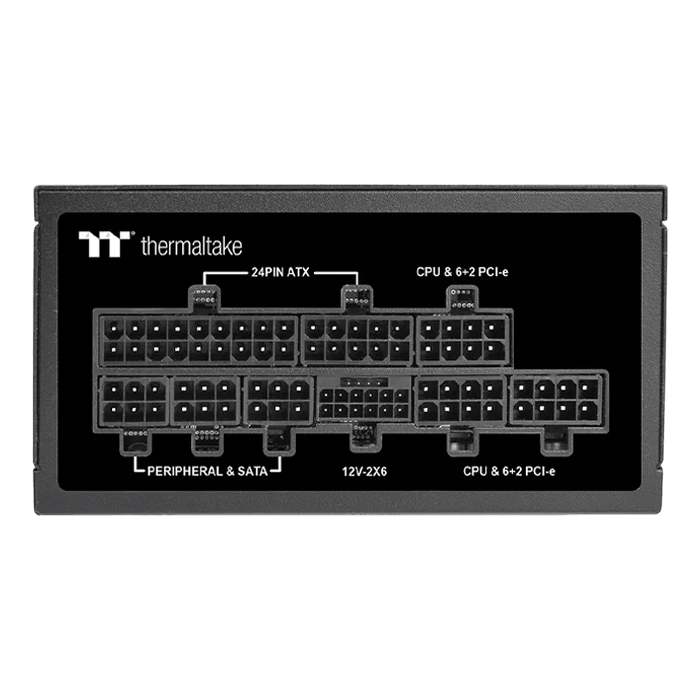

The Toughpower SFX Platinum series is built to support next-gen hardware, meeting the latest Intel SFX 12V 4.1 and ATX 12V 3.1 standards. With its native PCIe 12V-2x6 (12+4pin) modular interface, it efficiently powers PCIe 12+4pin graphics cards. This series not only achieves 80 PLUS Platinum efficiency but also guarantees stability, durability, and reliability.
| P/N | PS-STP-0750FNFAPU-1 |
| Model | SFX-0750AH8FLP |
| Watts | 750W |
| Color | Black |
| Dimensions | 125mm(W)x63.5mm(H)x103.8mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-150 msec |
| Hold Up Time | > 17msec at 80% load |
| Input Current | 15A - 8A |
| Input Frequency Range | 50Hz/60Hz |
| Input Voltage | 100-240V~ |
| Operating Temperture | 5°C to + 40°C |
| Operating Humidity | 20% to 85% |
| Storage Temperture | -40°C to + 55°C |
| Storage Humidity | 10% to 95% |

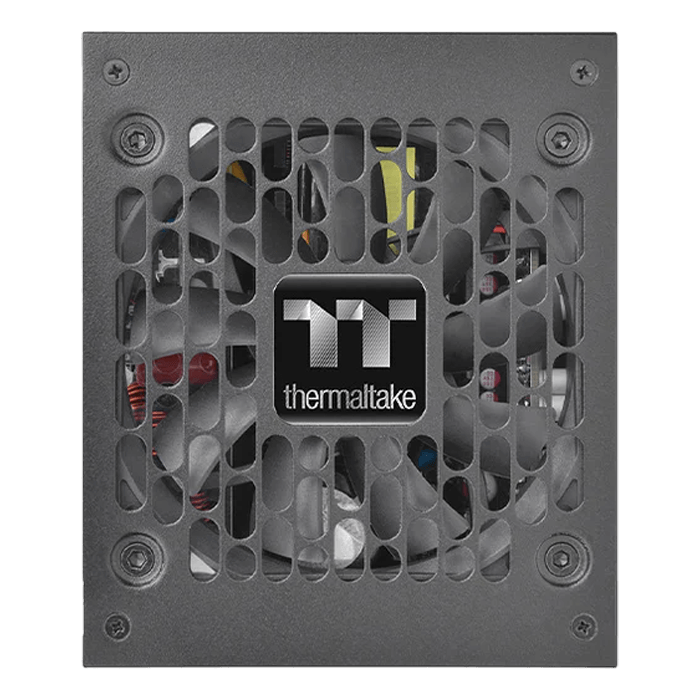

| Cooling System | 9cm FDB Fan |
| Efficiency | Meet 80 PLUS® Platinum at 115Vac input. |
| MTBF | 100 |
| Safety Approval | CE/UKCA/FCC/ICES/CB/TUV/cTUVus/LVD/CCC/BSMI/ S-MARK/EAC/RCM |
| PCI-E 6+2PIN | 2 |
| PCI-E 12+4PIN | 1(300W) |
